The hose I got locally didn't have any writing on it. It was a type of flexible nylon hose with a braided shielding. The system shouldn't exceed 8 inches, but 3-5 inches is normal. There is nothing but a 1/2" supply line that reduces down to 5/16" just before the cp3, and the gear driven pump on the back of the cp3 does all the supply work.


RI Chevy Silveradoman

At your service
Staff member
Lead Moderator
Messages
10,751
Likes
1,705
Location
Rhode Island
Thread starter Staff #28
Hmmm. OK. So there really isn't alot of pressure inside these lines. Good to know.
I bought 25 ft of 3/8 line. Coming Friday. I still need to do a Bush Fix. Haven't used truck in a week.

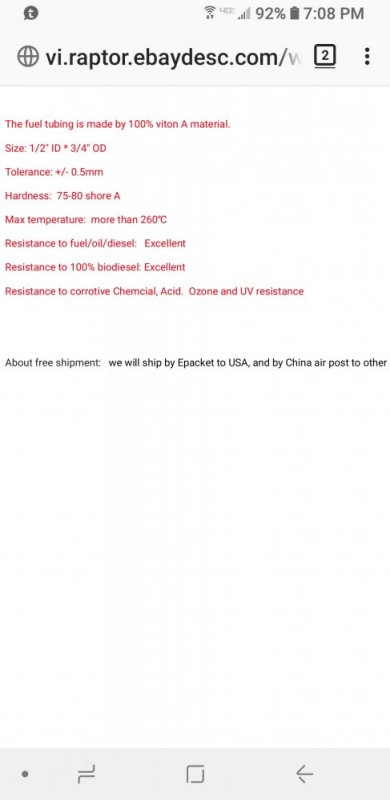

The 1/2" 30R9 fuel line seems to be out of stock at many places that I have checked. I want something that is bio diesel rated. I may just buy that Viton rubber fuel line.
Only thing leaking that I can find is the return line. I gotta drop the fuel cooler today. Bolts are pretty rusted up.


RI Chevy Silveradoman

At your service
Staff member
Lead Moderator
Messages
10,751
Likes
1,705
Location
Rhode Island
Thread starter Staff #29
Well..... I fixed my fuel leak. It was a 3/8 return line leak in the metal fuel line just above the fuel cooler. I had to delete the cooler for now. I tried to disconnect the fuel lines going in to the cooler, but I could not get the Lisle tool into it to try the disconnect. Too much rust. So I cut the metal fuel line back to a good spot for now and used clear plastic type hose and 2 small hose clamps for now. Very interesting to see fuel flowing back into tank at idle. Lots more fuel than I thought. I will eventually replace all the metal fuel lines with rubber hose from engine to tank.

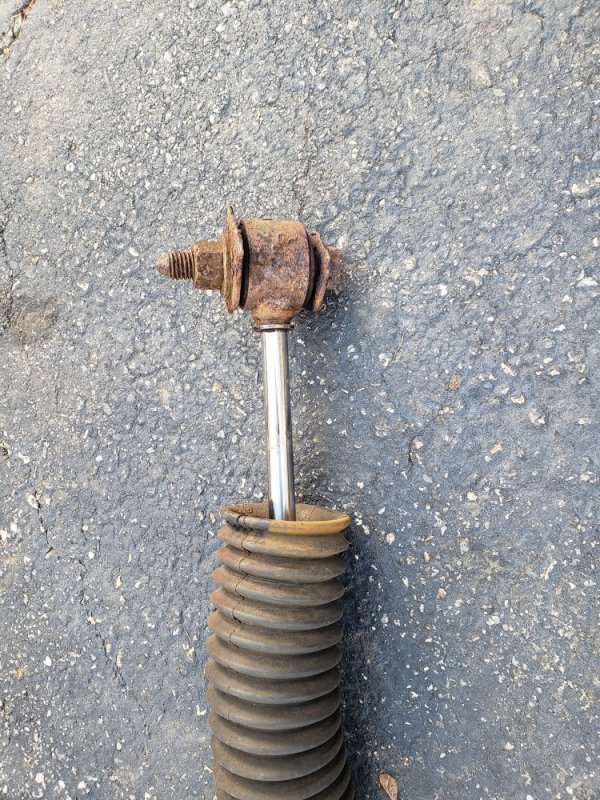

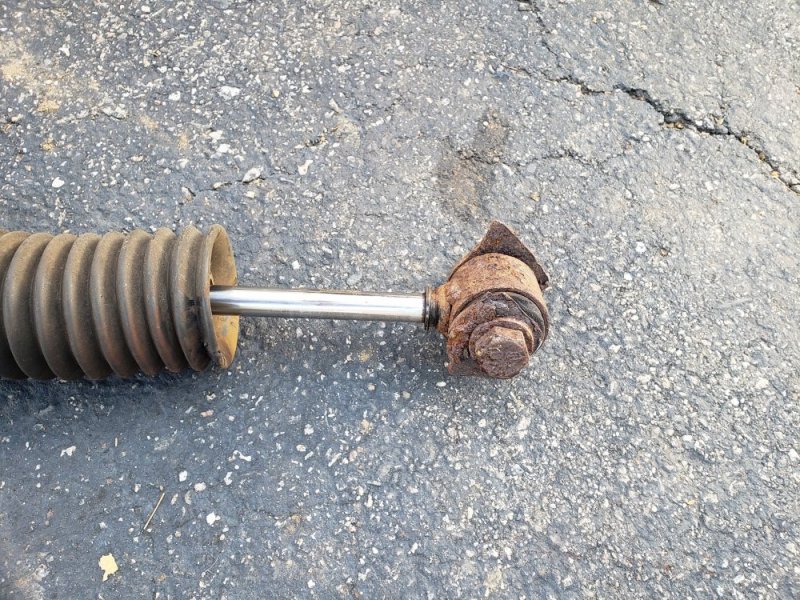

Now for the bad news. I found a shock with a busted shock mount right off the rear end. WTF am I going to do now?


RI Chevy Silveradoman

At your service
Staff member
Lead Moderator
Messages
10,751
Likes
1,705
Location
Rhode Island
Thread starter Staff #30

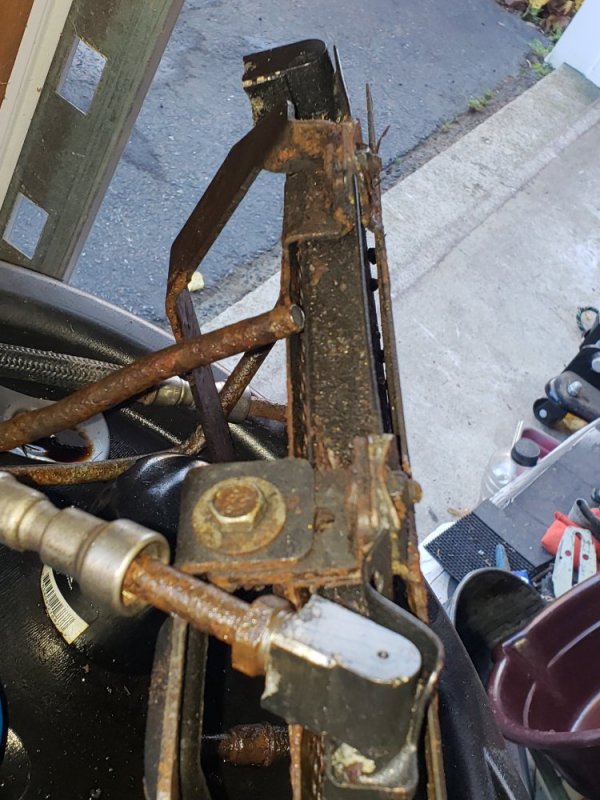

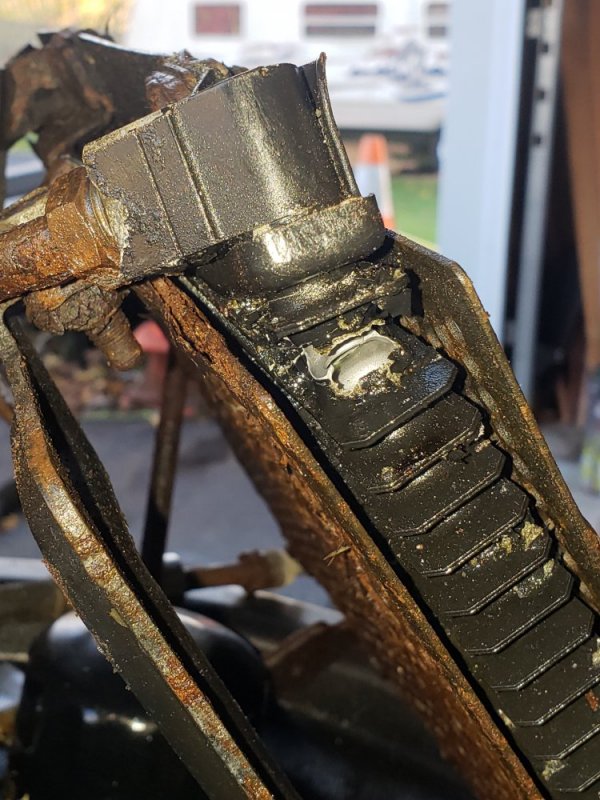

I broke the fuel cooler trying to remove the fittings. I broke one loose, the other ripped the cooler open. I sprayed fittings to try and loosen. 20181108_144219.jpg 20181108_144226.jpg 20181108_152631.jpg 20181108_152649.jpg


RI Chevy Silveradoman

At your service
Staff member
Lead Moderator
Messages
10,751
Likes
1,705
Location
Rhode Island
Thread starter Staff #34
This here is the #1 reason I live down south. I hate fighting rust, it always wins!
Yes it does Marty. My truck has been very good and reliable. The rust is the worst hurdle I have had to overcome so far.
The underside of my bed is also corroded. So much that I have to beef up the bed with wood or something soon.
Sad.


THEFERMANATOR

FRANKENBURBAN
Staff member
Lead Moderator
Messages
9,257
Likes
2,765
Location
ZEPHYRHILLS FL
Staff #35
Hmmm. OK. So there really isn't alot of pressure inside these lines. Good to know.
I bought 25 ft of 3/8 line. Coming Friday. I still need to do a Bush Fix. Haven't used truck in a week.
The 1/2" 30R9 fuel line seems to be out of stock at many places that I have checked. I want something that is bio diesel rated. I may just buy that Viton rubber fuel line.
Only thing leaking that I can find is the return line. I gotta drop the fuel cooler today. Bolts are pretty rusted up.
There is no pressure in the 1/2" line, it runs under a vacuum at all times in stock form.
