'95 Engine build

[SnowDrift]

Nice!

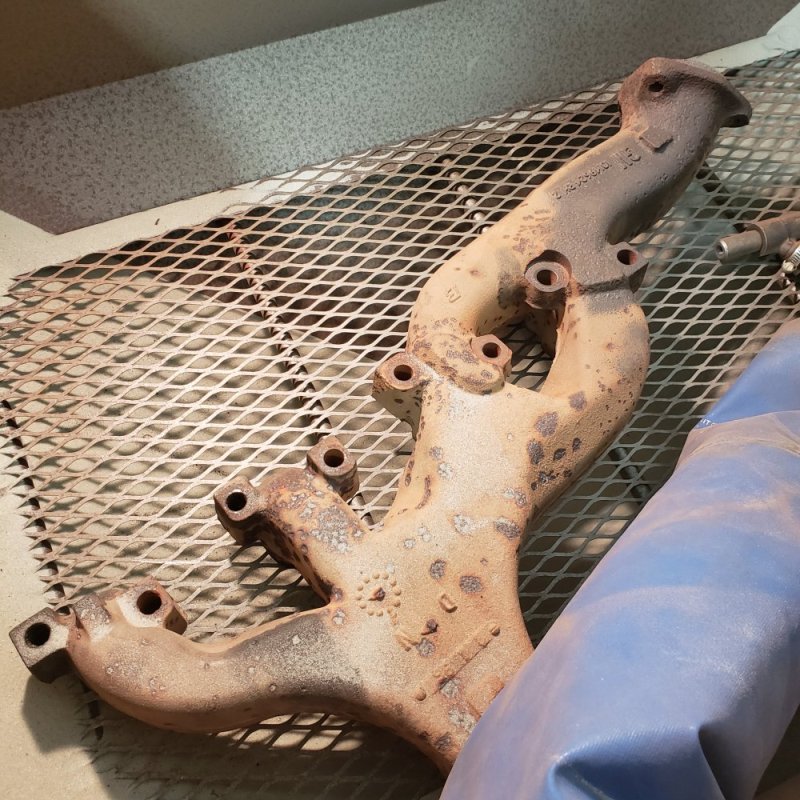

While that was being worked on, I was working on far less exciting stuff back home. I started blasting before I realized I should have taken photos. I did get my factory motor mounts apart and they're ready for paint, also, but I ran out of time.

a



[SnowDrift]

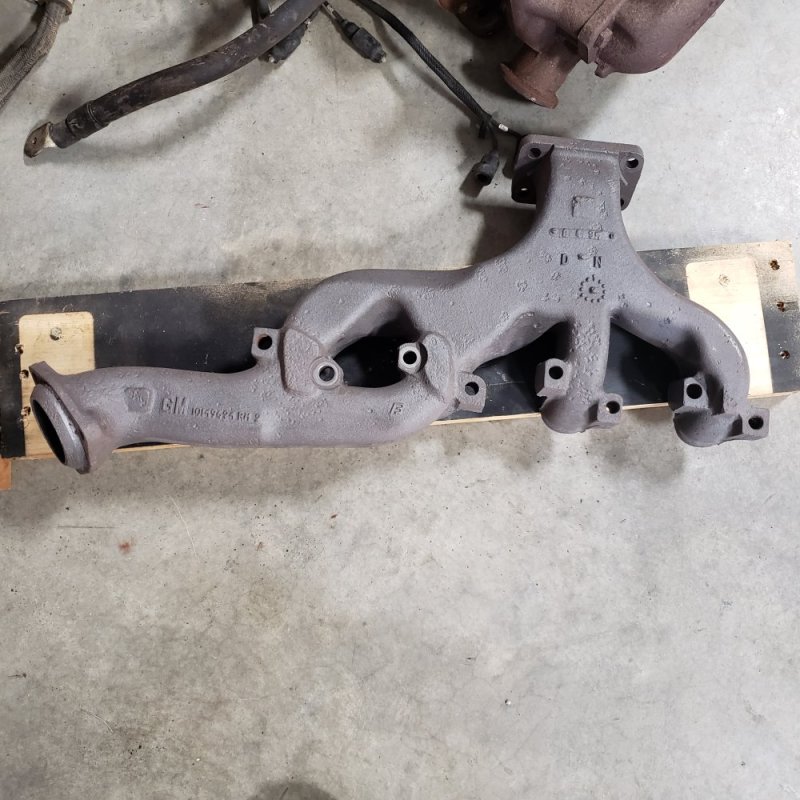

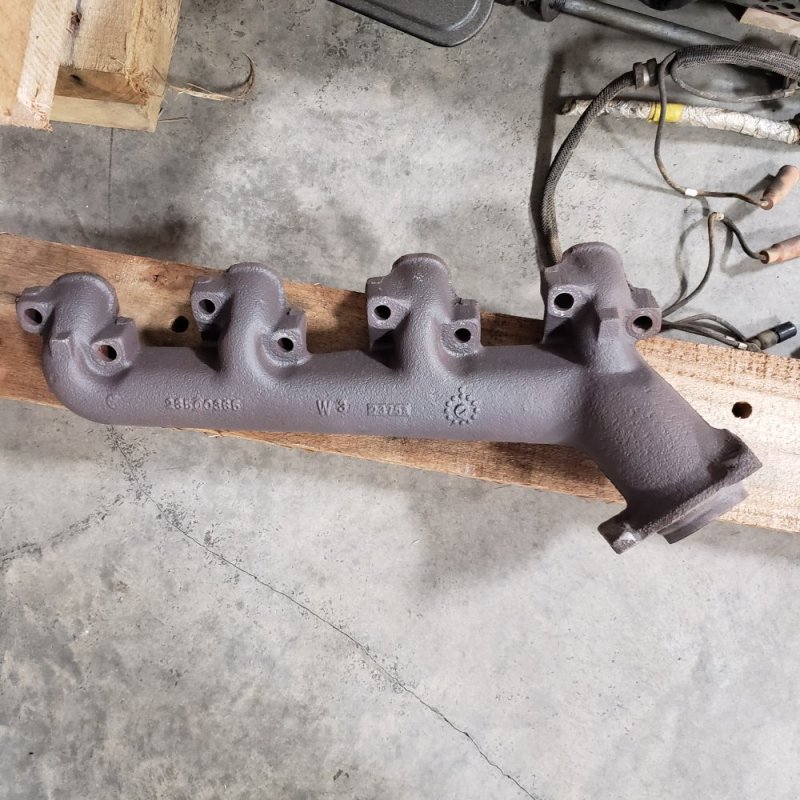

For some reason the turbo side started out very clean as shown above, but the driver side was very rusted. It was pretty humid yesterday, so there seems to be some flash rusting on them. I'll probably go over them one last time before I coat.



[SnowDrift]

What do the coated skirts look like?

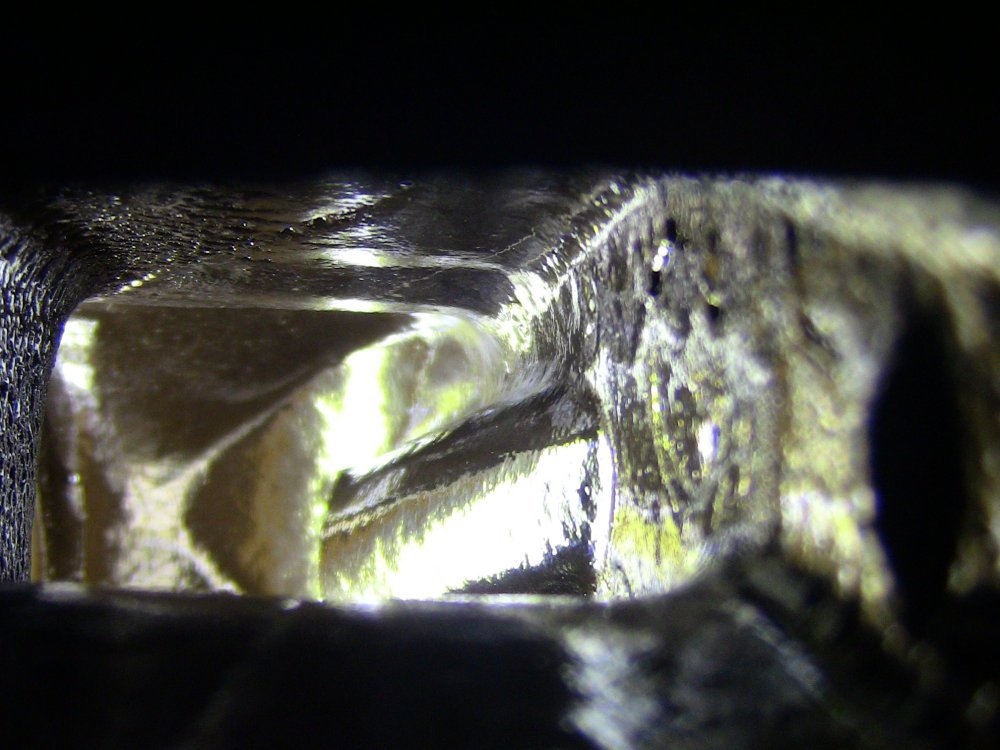

Just curious - What is this picture showing? Coated bearing?



[Twisted Steel Performance]

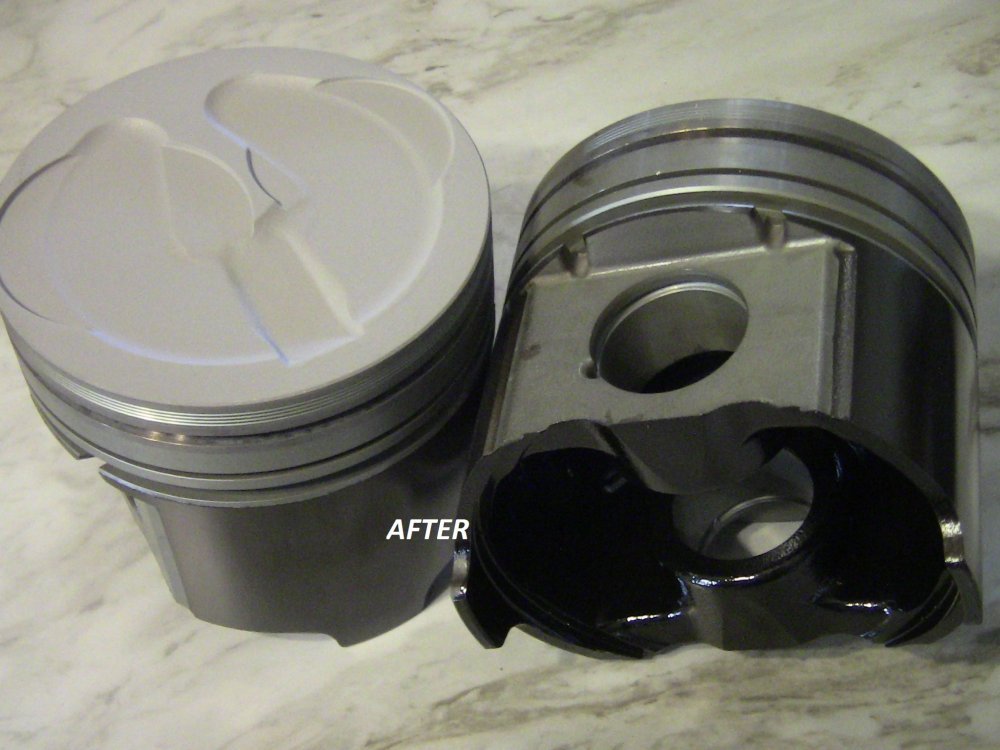

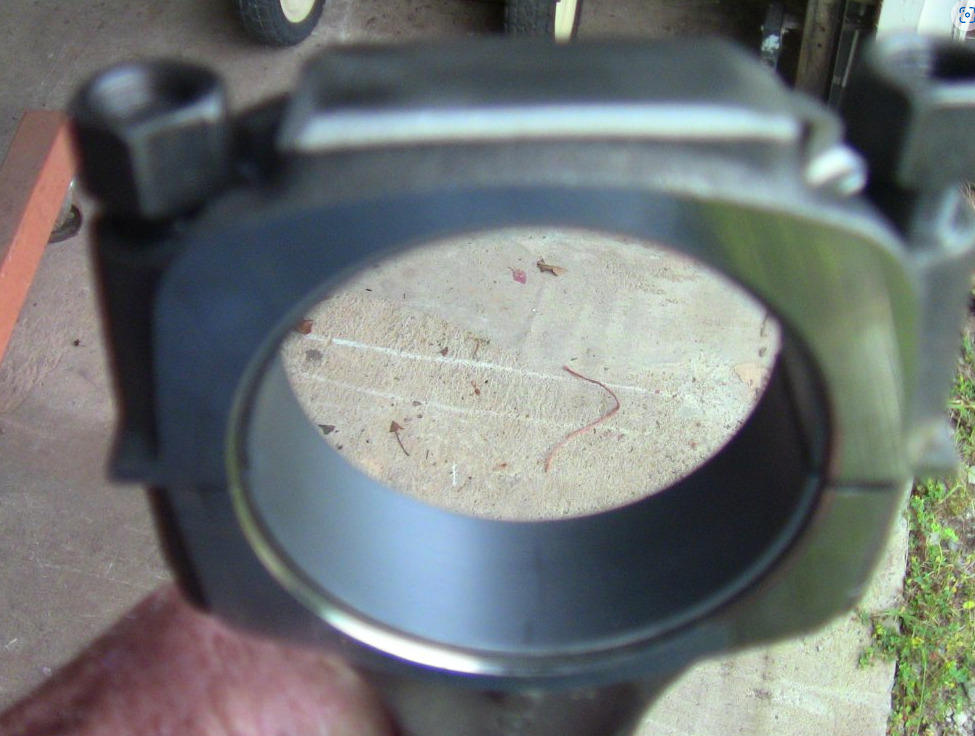

yea coated bearings, this is what coated pistons look like.



[93detroit]

Nice work Chris, as always.



[Twisted Steel Performance]

@SnowDrift

Another update

Heads are finished the coating process and will be assembled and installed next weekend.

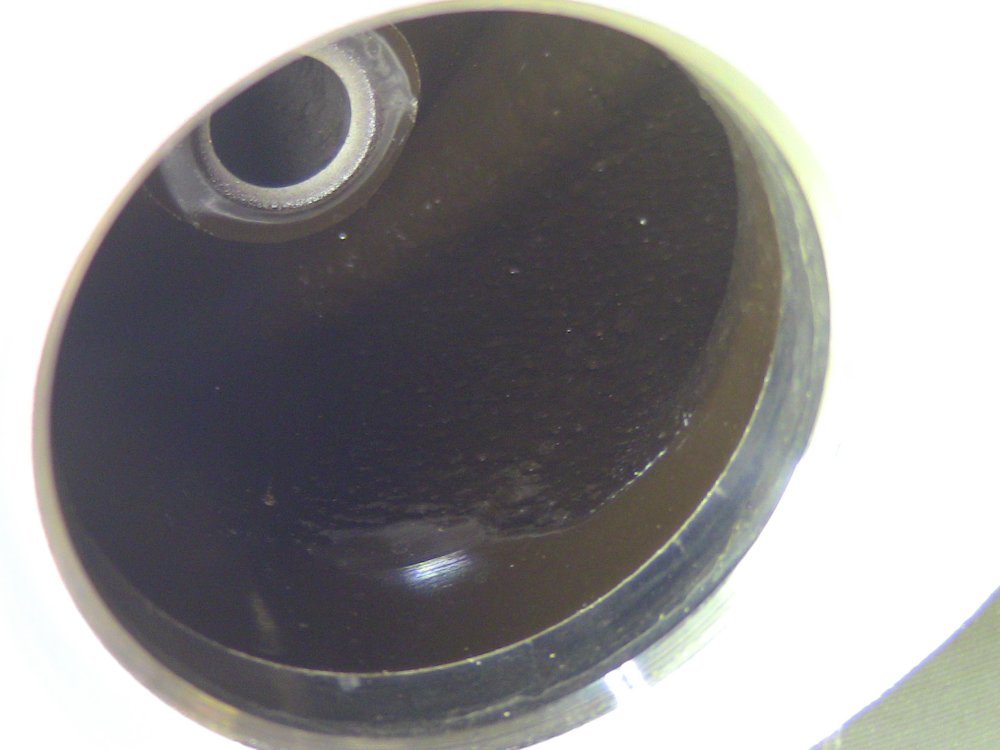

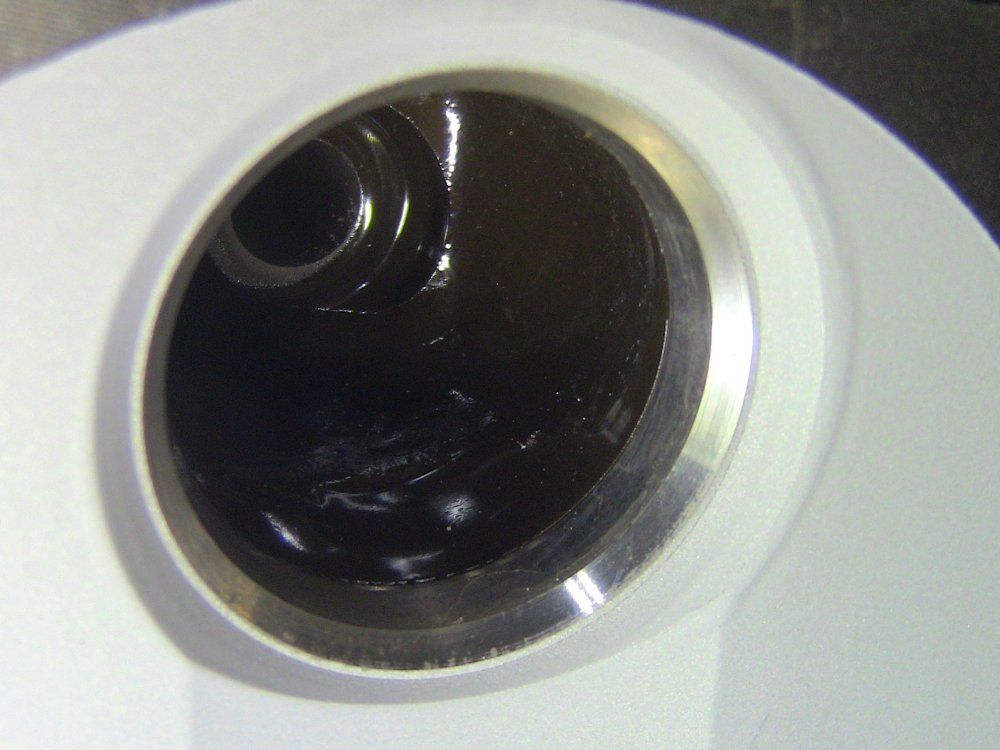

Heads got the egr ports aluminum filled, heat stop in the runners, thermal barrier in combustion chambers.

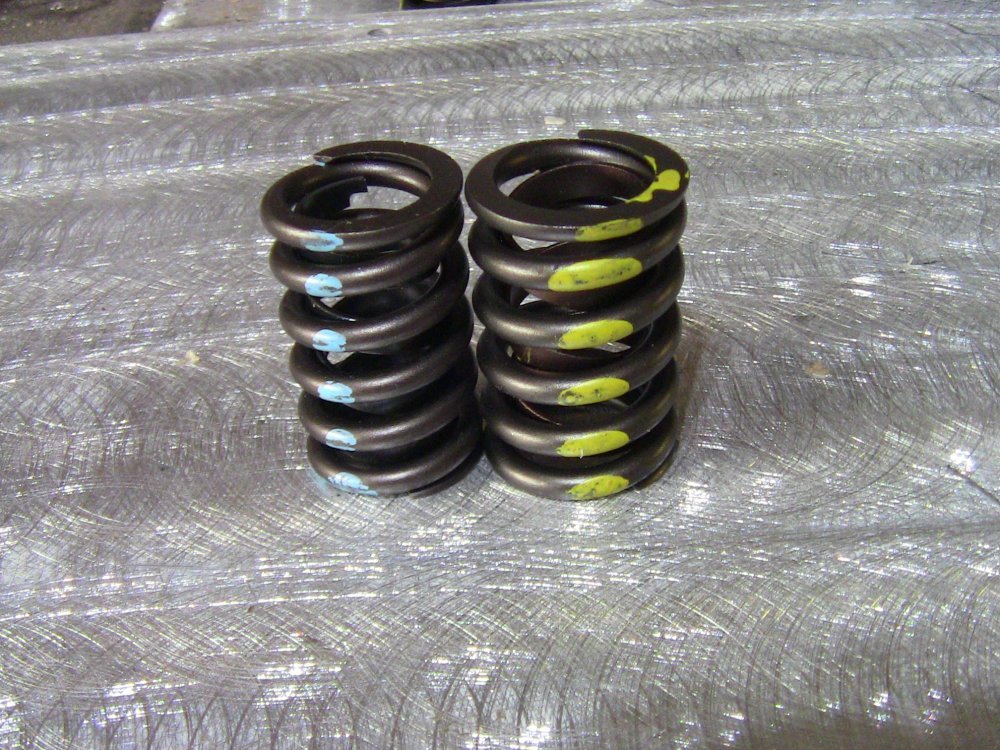

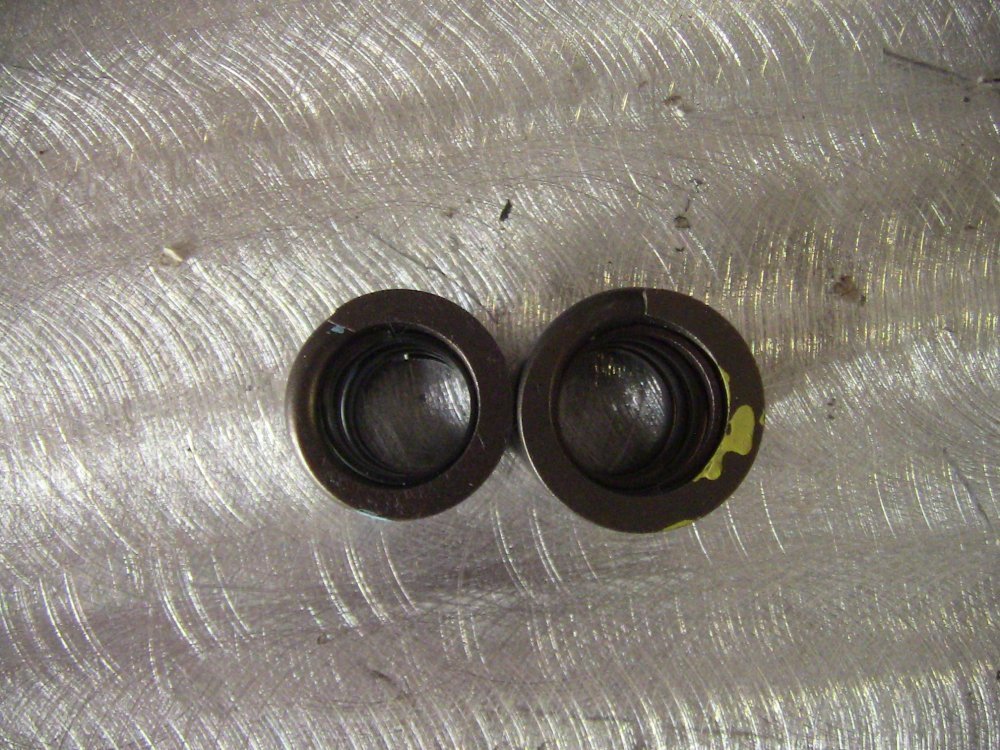

My propitiatory springs will be used.



[Twisted Steel Performance]

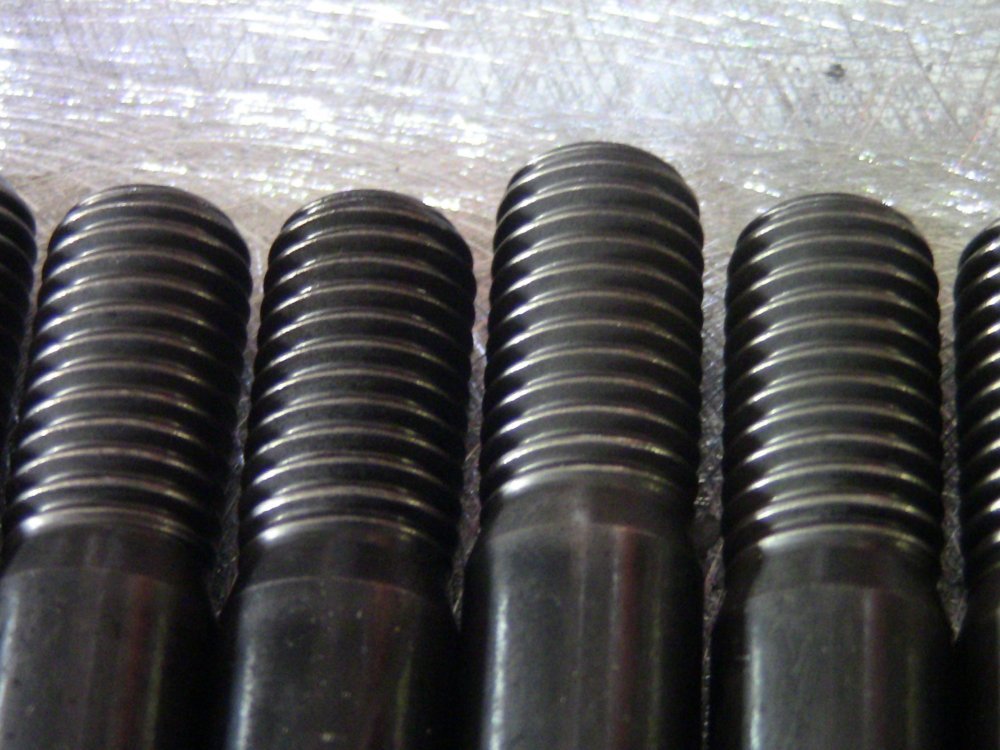

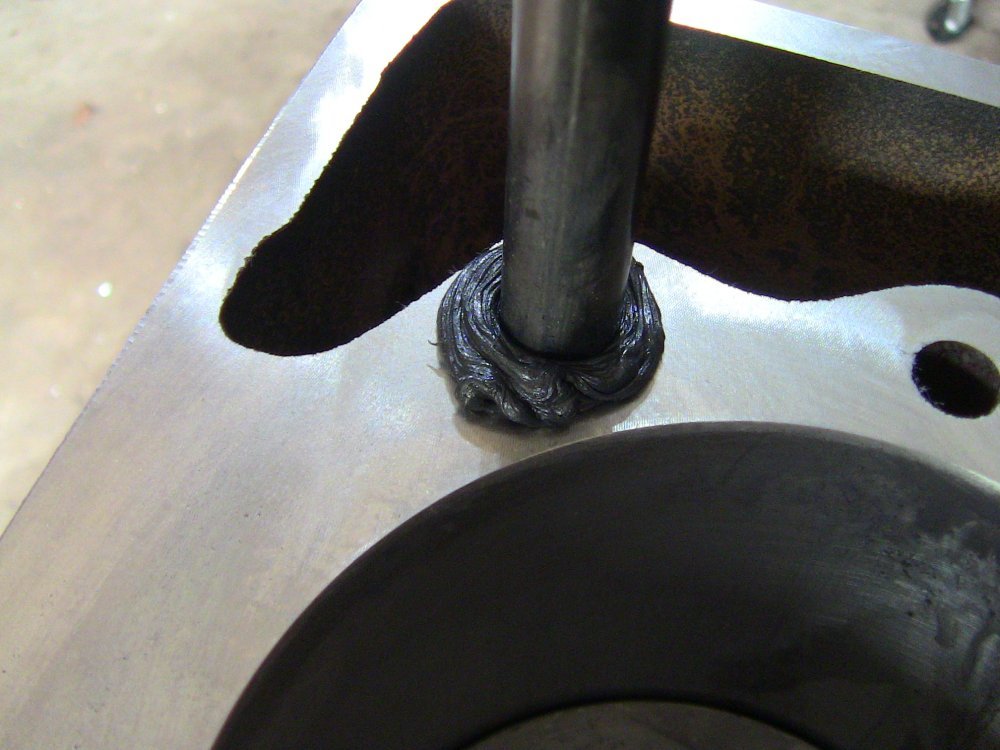

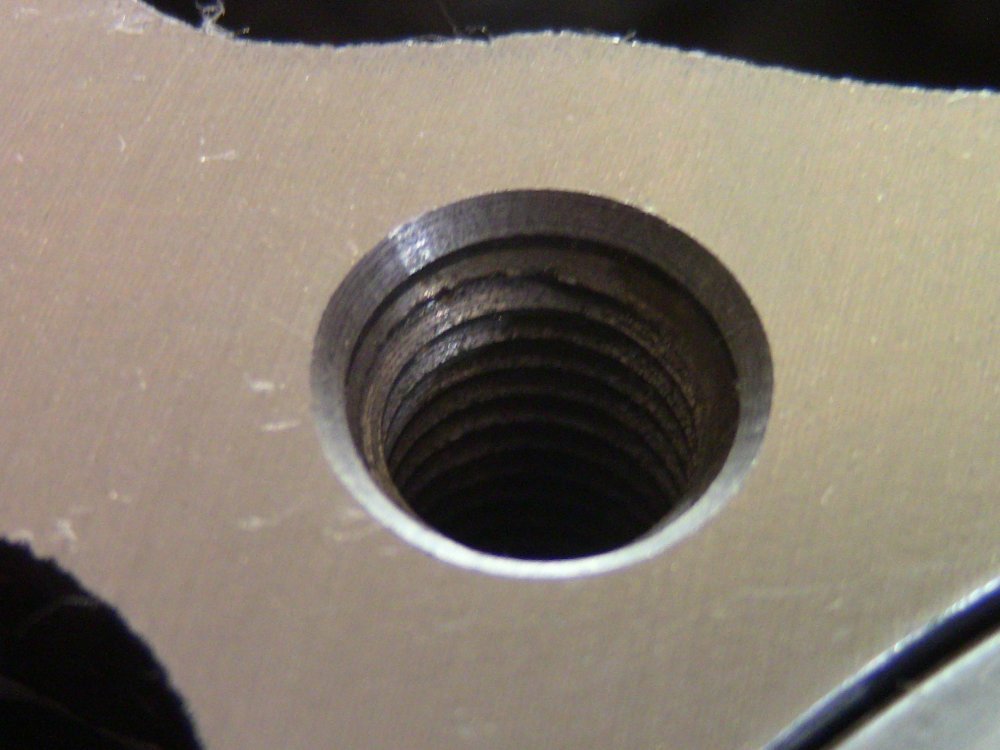

This is how we install head studs...
Bevel block, wire brush the coating off the studs, clean with brake kleen, roll stud in "the right stuff" , screw studs in snug, clean up excess , let cure for a few days.

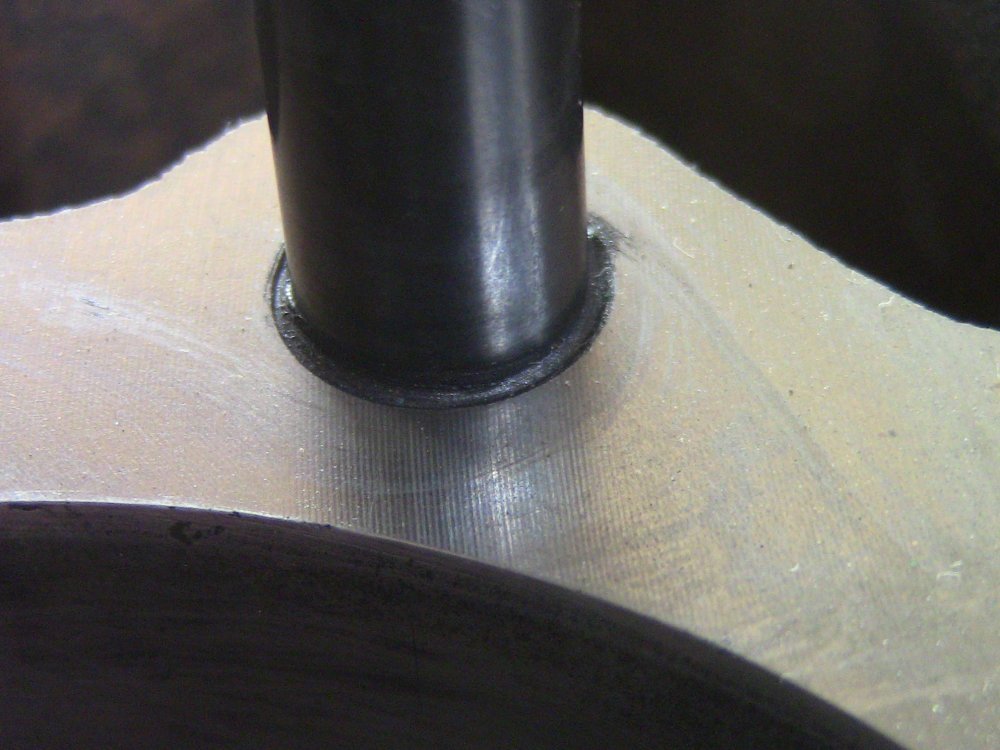

Once done, the bevel and sealant forms a "o-ring" type seal above the threads.

Teaching the grandson how I want it done....



[Will L.]

Not sure what’s better- using a great technique & sharing with others- or teaching the grandson.



[Husker6.5]

Not sure what’s better- using a great technique & sharing with others- or teaching the grandson.

Both.



[SnowDrift]

Teaching is good. Watching them do a better job than you at something you taught them is even better.



[SnowDrift]

It's getting closer.



[SnowDrift]

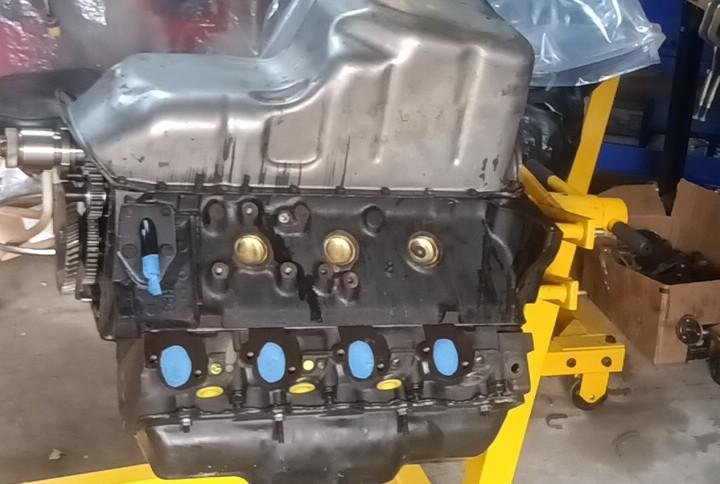

Ok, well I had high hopes for the guy working on my engine, but I'm starting to wonder now after he sent this last picture. He's got it built upside down but I guess if that's how it's suppose to work, then I will give it a try.



[SnowDrift]

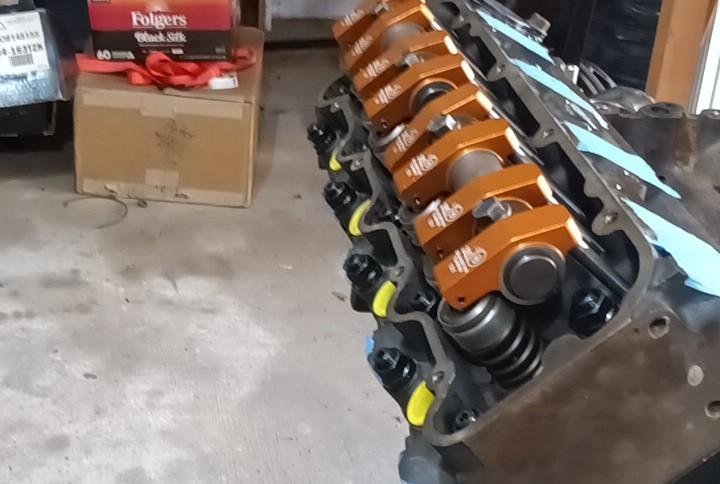

Off topic, but this is really good coffee if someone is wondering...



[Big T]

I'm open to anyone's thoughts on what I found once I took off the pan. Personally, I was pleased. I'm unsure how many times does the crank have to roll through the oil before the paint wears off. Any guesses on mileage?

Damn!



[Twisted Steel Performance]

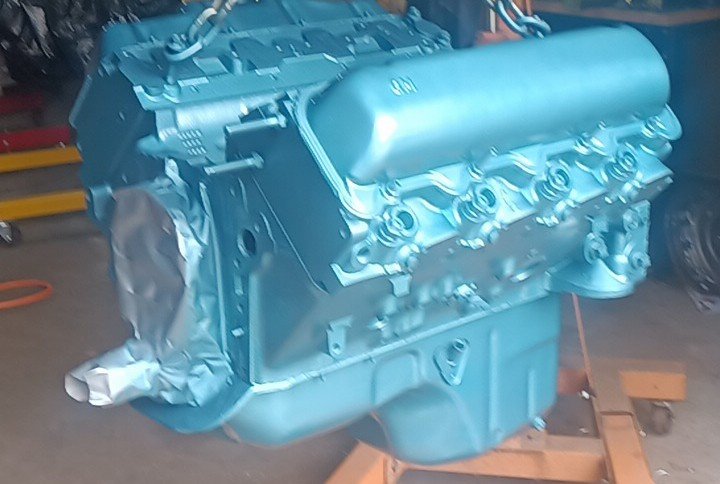

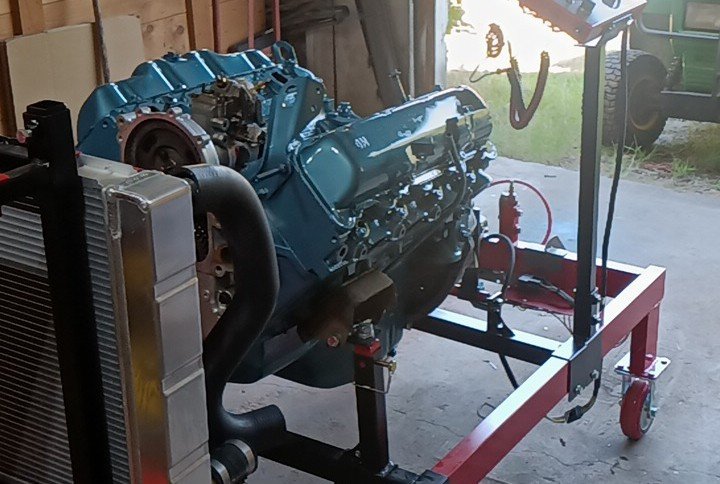

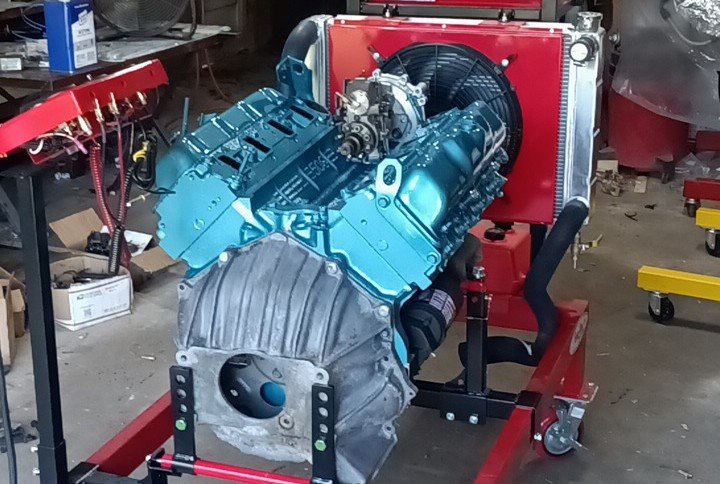

Getting close to the run stand.



[Husker6.5]

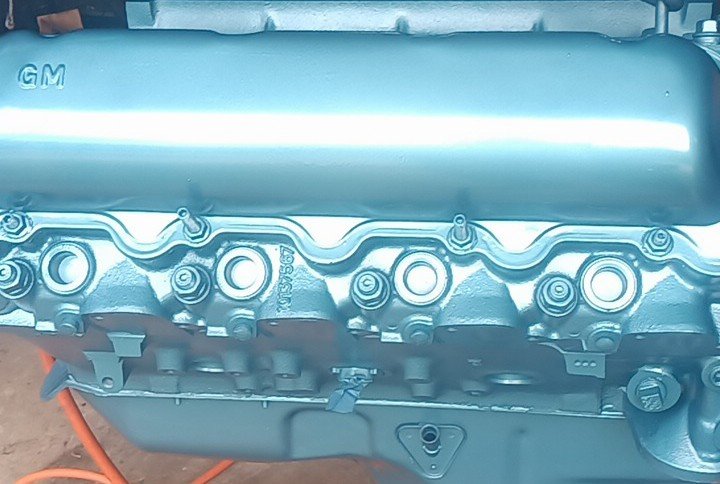

Now that is SERIOUSLY blue!



[Twisted Steel Performance]

Olds metallic blue.



[Twisted Steel Performance]

A few details and she will be breathing fire.



[SnowDrift]

Paint needs 2-3 day cure time, I think.

Glad you can have the doors open because if it's anything like the stuff I coated the silver parts with, it's horrible when it heats up.



[Twisted Steel Performance]

Don't worry, may be ready to fire next weekend.
