Fuel Sump

Will L.

Well-Known Member
Messages
16,435
Reaction score
28,433
Location
Boulder City Nv
I remember someone showing how they did theirs on here a few back. But can’t remember who it was. Give some time and hopefully they pop back in and see this.

A fuel sump is when you cut a hole into the low spot of the fuel tank, add the sump which is a cup like device that has hose ports in it. So all the fuel comes out the bottom of the tank rather than getting sucked up a tube.


93detroit

Well-Known Member
Messages
243
Reaction score
670
Location
central PA
I remember someone showing how they did theirs on here a few back. But can’t remember who it was. Give some time and hopefully they pop back in and see this.

A fuel sump is when you cut a hole into the low spot of the fuel tank, add the sump which is a cup like device that has hose ports in it. So all the fuel comes out the bottom of the tank rather than getting sucked up a tube.
I don't feel the need to drop the tank and install a new FSU with big pipes. Mine is new three years ago and works fine. The inside of the tank looked brand new at that point. I have an old tank (junk) so I can measure where Not to drill (so I avoid the box GM installed to prevent loss of prime at low fuel conditions). I have time- just looking for tips!


DieselAmateur

She ain't revved 'til the rods are thrown...
Messages
445
Reaction score
1,075
Location
Upstate NY
I like the idea of a sump as the last 5 gallons in my truck always results in a stall. But I chose a slightly different direction as I didn't like how the sump isn't really protected being mounted on the bottom of the tank

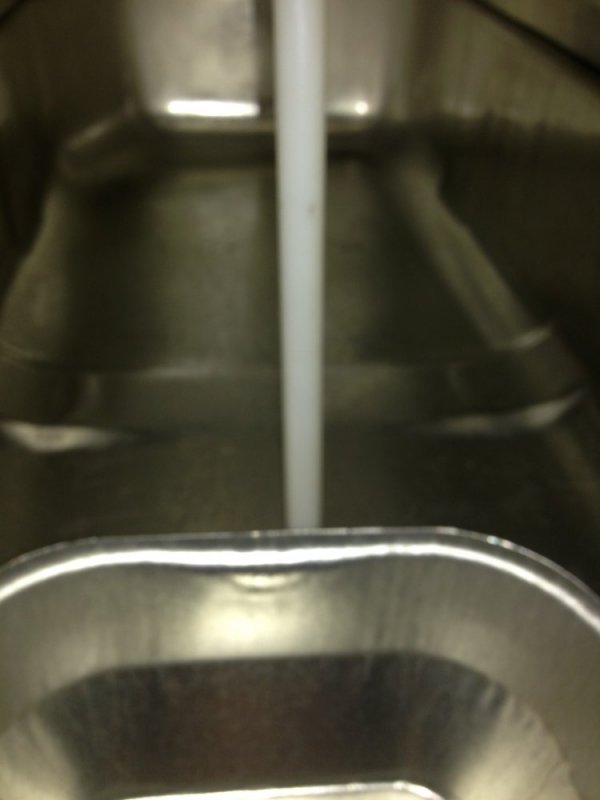

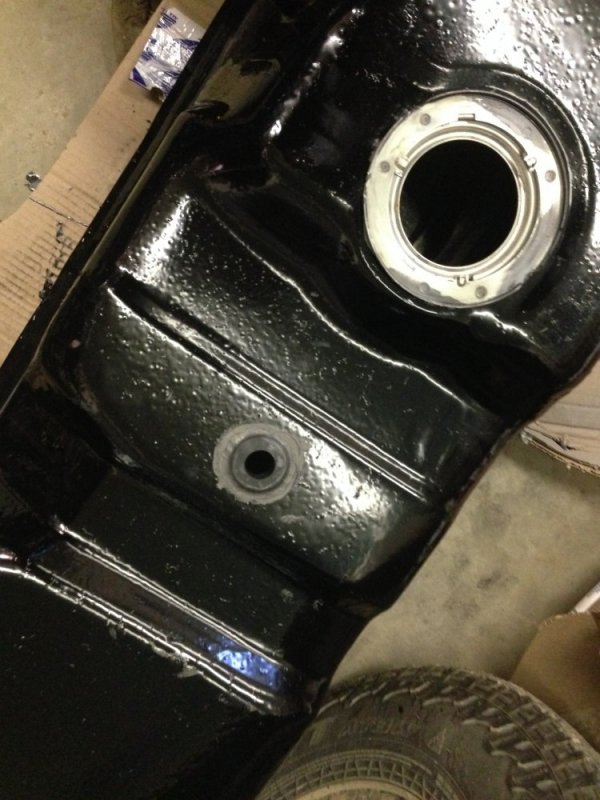

Was going to do a separate thread or include in my build thread, but here's a few pics of my future setup. I also have a Raptor 150 sitting on the shelf and am going to run 1/2" line from tank to IP. I purchased the AirDog draw straw kit for going from the tank with 1/2" line. Does involve dropping the tank, but I had to swap out tanks last fall as mine was leaking. Minimal work required, drill one hole for the draw straw and go. I opted for mounting behind the GM location as fuel goes to the back of the tank under acceleration, and I wanted every last bit of help when running low on fuel going uphill. Plus my driveway slopes uphill and I've had the truck run out of fuel when warming it up in the morning even if there's still some in the tank





BIGR

Lucky To Be Here
Messages
10,509
Reaction score
14,919
Location
Appalachian Mountains

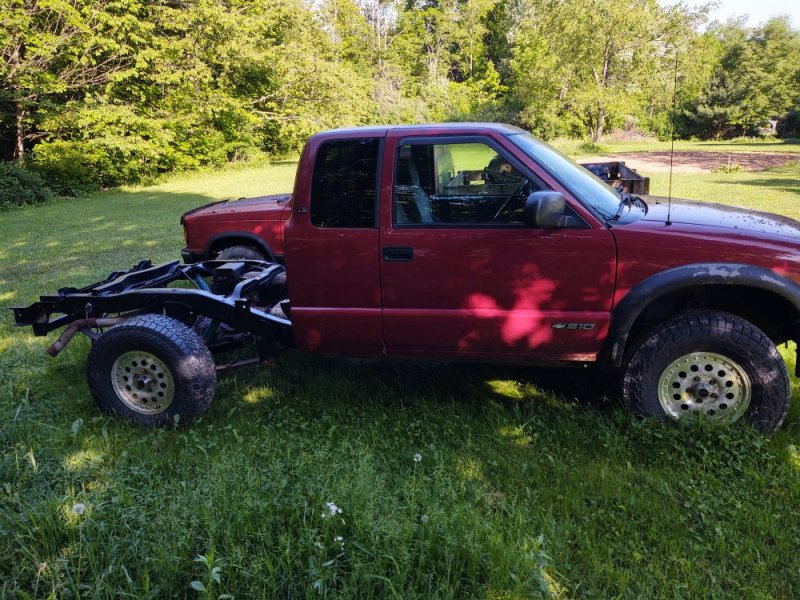

Has anybody here installed a fuel sump in a gmt400? Which one did you use, where did you drill, and did it ever leak? As soon as my s10 is back on the road I'm going to do one, as I have 1/2" line from before the Airdog to right before the ip.

Just curious, you mentioned getting your S10 back on the the road. What year is it and is it a project you have been working on. I have owned a few of them over the years and still drive a 2002 model as my daily beater.

Back on topic, good luck on your fuel sump project....:)


MrMarty51

Well-Known Member
Messages
13,649
Reaction score
29,899
Location
Miles City, Montana
I like the idea of a sump as the last 5 gallons in my truck always results in a stall. But I chose a slightly different direction as I didn't like how the sump isn't really protected being mounted on the bottom of the tank

Was going to do a separate thread or include in my build thread, but here's a few pics of my future setup. I also have a Raptor 150 sitting on the shelf and am going to run 1/2" line from tank to IP. I purchased the AirDog draw straw kit for going from the tank with 1/2" line. Does involve dropping the tank, but I had to swap out tanks last fall as mine was leaking. Minimal work required, drill one hole for the draw straw and go. I opted for mounting behind the GM location as fuel goes to the back of the tank under acceleration, and I wanted every last bit of help when running low on fuel going uphill. Plus my driveway slopes uphill and I've had the truck run out of fuel when warming it up in the morning even if there's still some in the tank

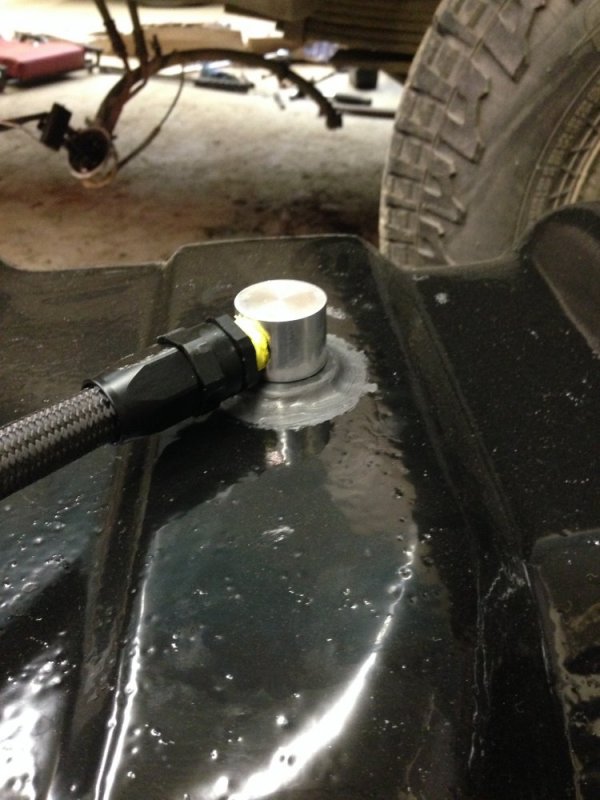

View attachment 75005

View attachment 75006

View attachment 75007
Where does the straw and that adaptor collar come from ? Parts store item or is it with the Air Dog ?


93detroit

Well-Known Member
Messages
243
Reaction score
670
Location
central PA
Just curious, you mentioned getting your S10 back on the the road. What year is it and is it a project you have been working on. I have owned a few of them over the years and still drive a 2002 model as my daily beater.

Back on topic, good luck on your fuel sump project....:)

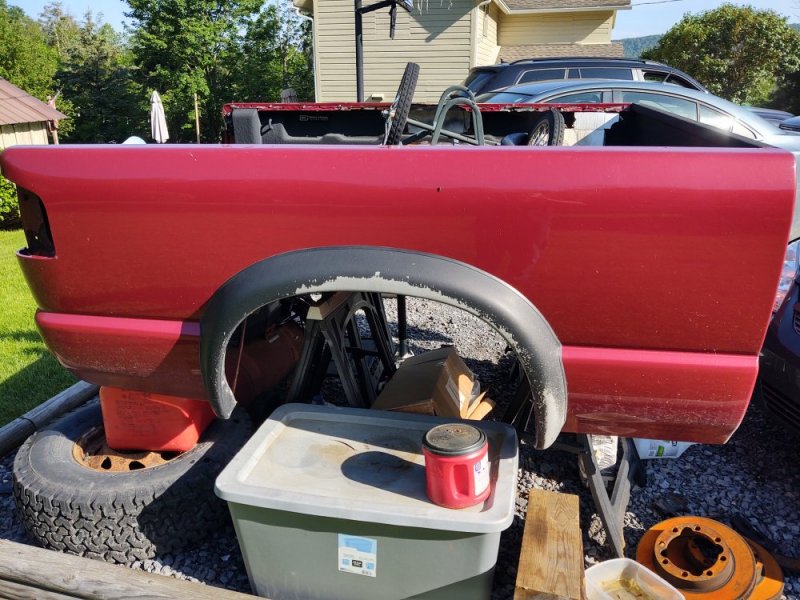

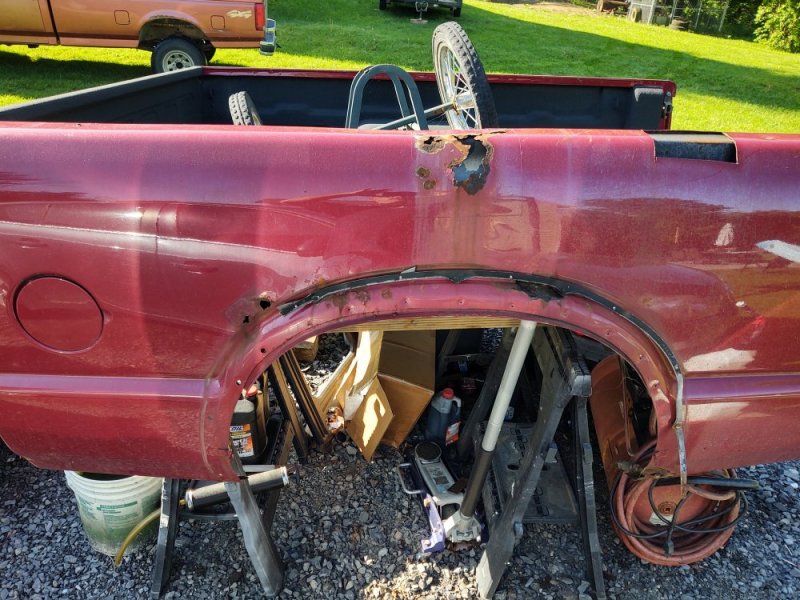

IMG_20220530_084547902_HDR.jpgIMG_20220530_084729947_HDR.jpgIMG_20220530_084641132_HDR.jpg
2000 zr2
Needs a left bed side (it's waiting in the barn), and it has holes in the front of both rockers.

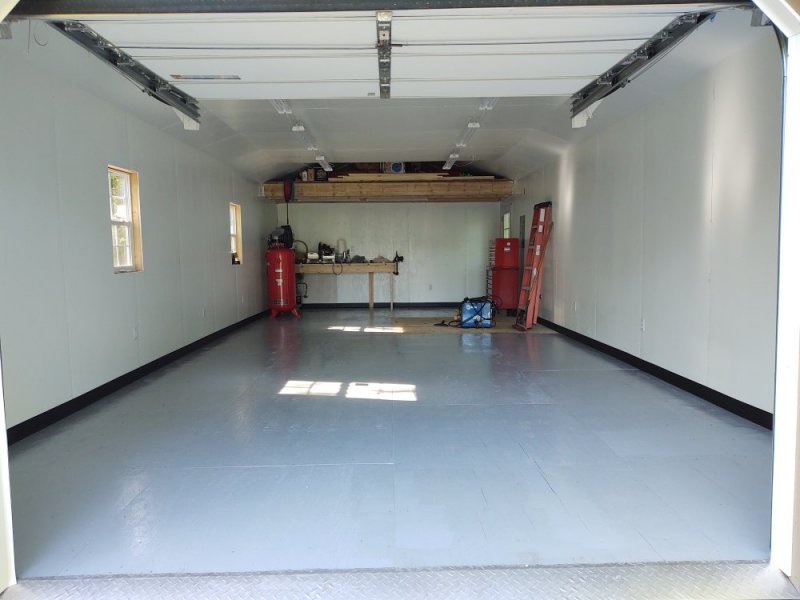

It's waiting on me to finish my shop (almost there)!


93detroit

Well-Known Member
Messages
243
Reaction score
670
Location
central PA

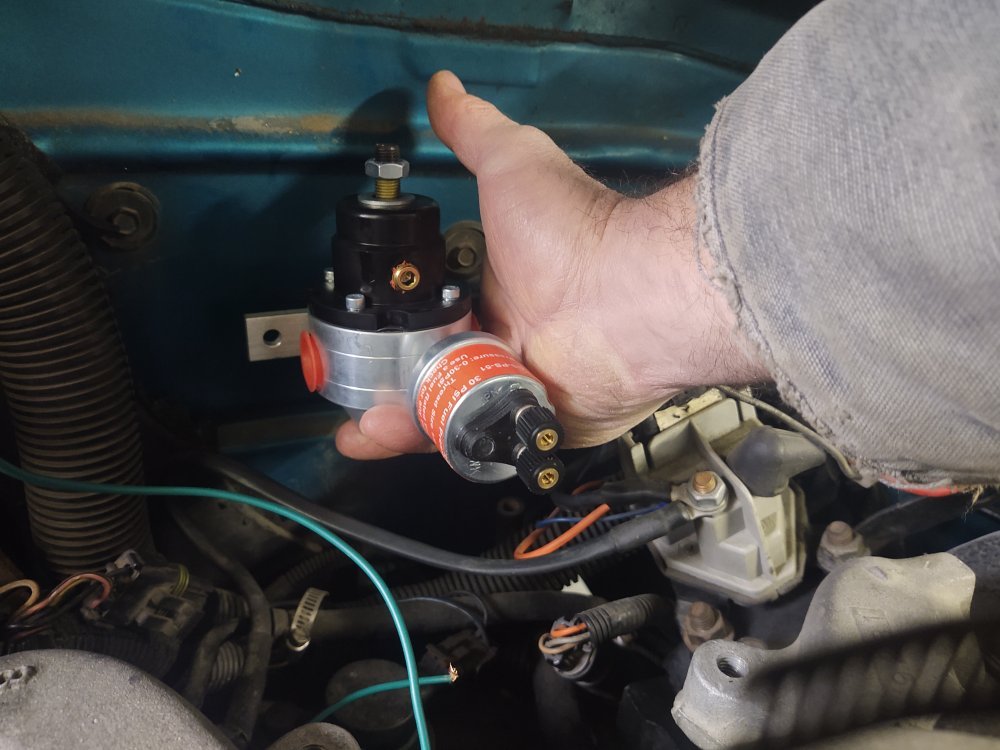

Thinking of mounting this gadget right here. Since an AirDog requires them to be run on the "return to tank" line, I have a problem. I don't want to run a boost referenced line all the way to the back of the cab. I certainly don't want the regulator and sending unit exposed to all the road grime. I also don't want to run 25' of return line from the AirDog to the engine, and back to the tank. I am shooting for 22-25psi at the IP at wot.
SOOOOO.......
I am going to run a 30psi spring in the pump and plumb the regulator in on the pressure side of the pump. I will then have two return lines- one from the regulator and one from the AirDog which I will join together with a 1/2" barbed Y from Fleece. Then I will still have just one return line to the tank. Tech at Thoroughbred thinks it will work.
Any thoughts?


Attachments

  • IMG_20221224_100250288.jpg
    109.3 KB · Views: 5

Twisted Steel Performance

Anything worth doing is worth overdoing.
Vendor
Messages
3,558
Reaction score
6,207
Location
Pauline, SC

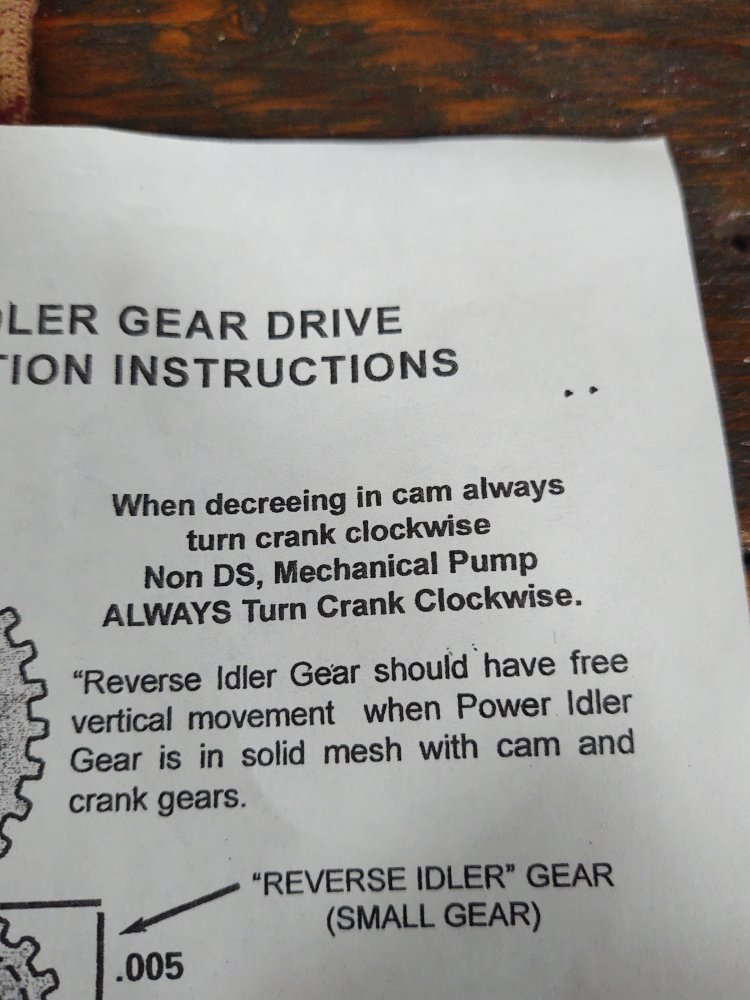

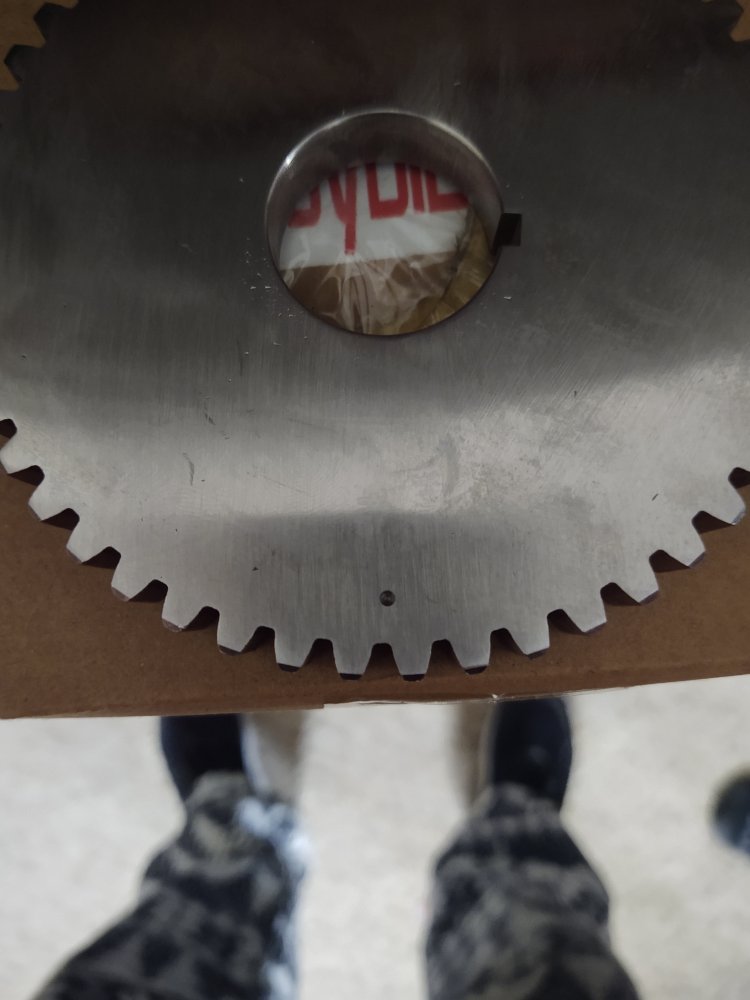

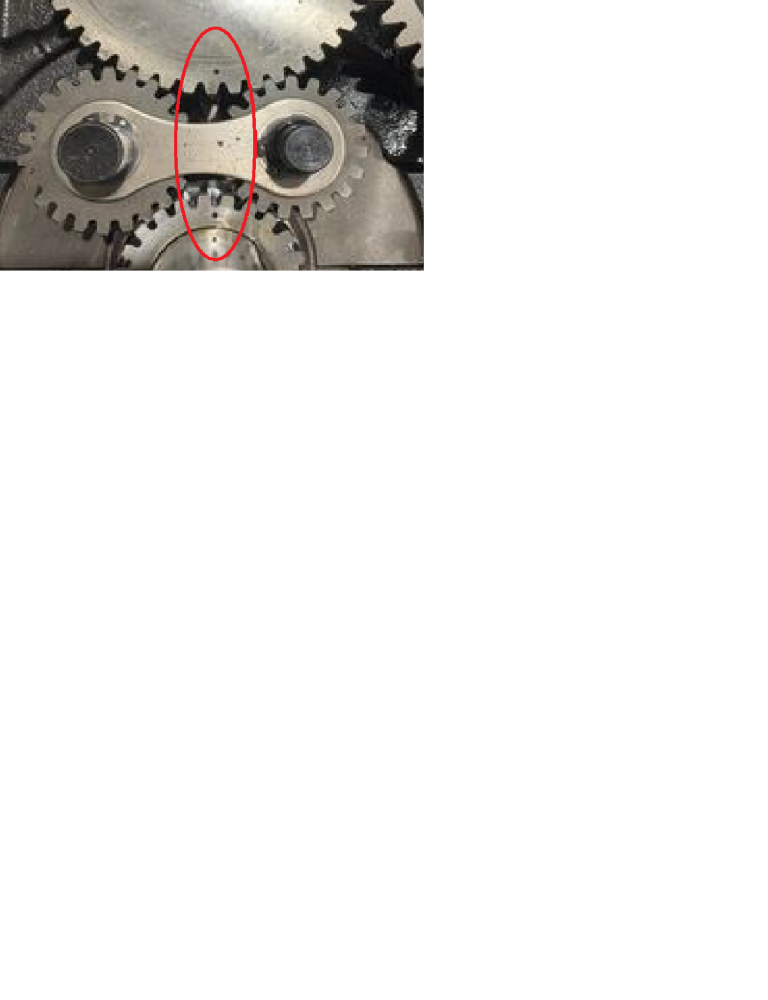

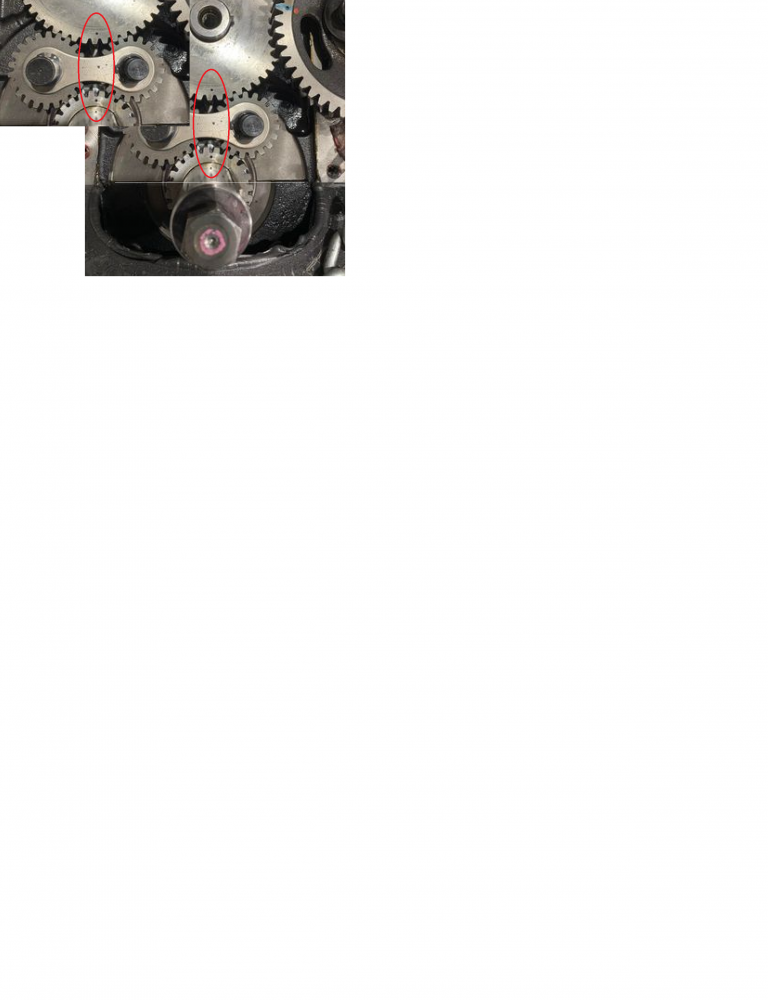

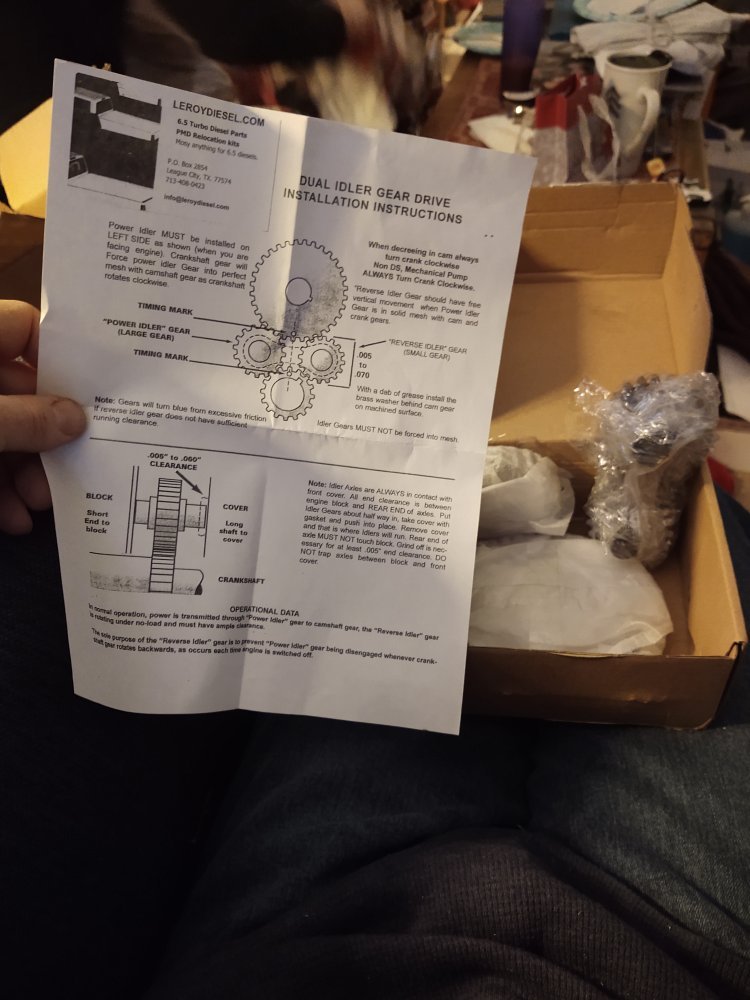

These aren't very good pics but it's what the person with a blown P400 sent me.... and I have seen the same thing in person, notice the dot location, nither on the tooth nor between, you MUST degree the cam....
