DIY 5 stud main girdle and measurements with pics...

ak diesel driver

6.5 driver
Messages
14,229
Reaction score
5,424
Location
alaska
Mines going to be MUCH beefier than those. I'm mimicing the p400 adding 3" to the block. Biggest difference will be mine will be bolt together rather than one large casting. The main caps will register into the skirt pieces and have an end bolt, the skirt pieces will use the pan bolt holes to bolt it to the block.


Will L.

Well-Known Member
Messages
9,442
Reaction score
10,317
Location
Boulder City Nv
I had a couple ideas of my own, using the rectangular design like the ones for sbc, but with vertical edging for a lot more ridged design and would tie into all 20 studs.

Wanted to weigh options before doing it obviously.
Also wanted one that didn’t require align honeing incase someone has a running engine they just wanted to shore up.
Too many places to spend money- haha. Mine would be double the cost of the 3 or 5 hole ones.

The one ak diesel driver is planning would beat mine and stomp these other two into the dirt. We all need more $ to play with...


Twisted Steel Performance

Anything worth doing is worth overdoing.
Vendor
Messages
2,273
Reaction score
2,686
Location
Pauline, SC
Mines going to be MUCH beefier than those. I'm mimicing the p400 adding 3" to the block. Biggest difference will be mine will be bolt together rather than one large casting. The main caps will register into the skirt pieces and have an end bolt, the skirt pieces will use the pan bolt holes to bolt it to the block.

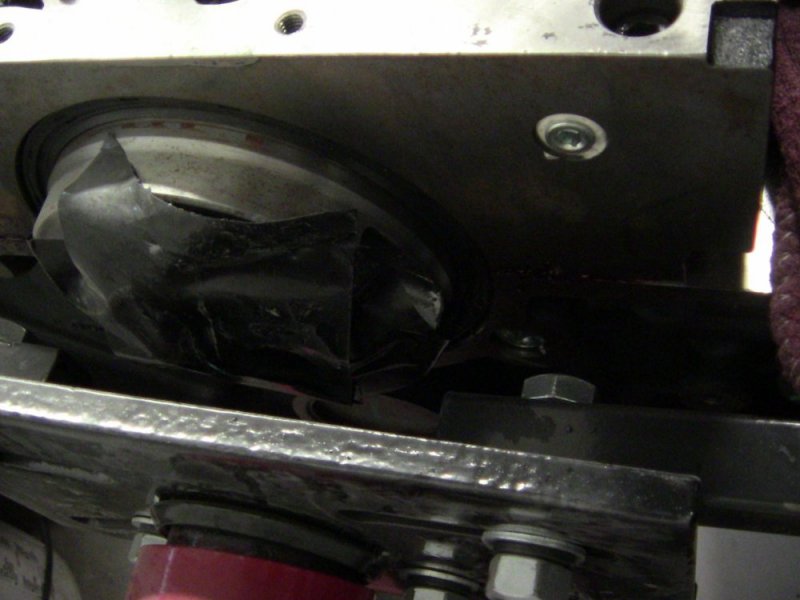

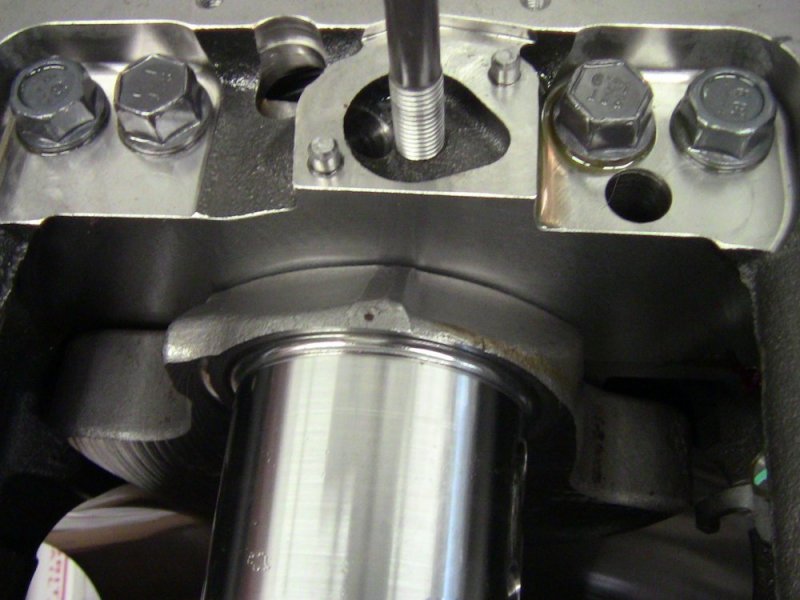

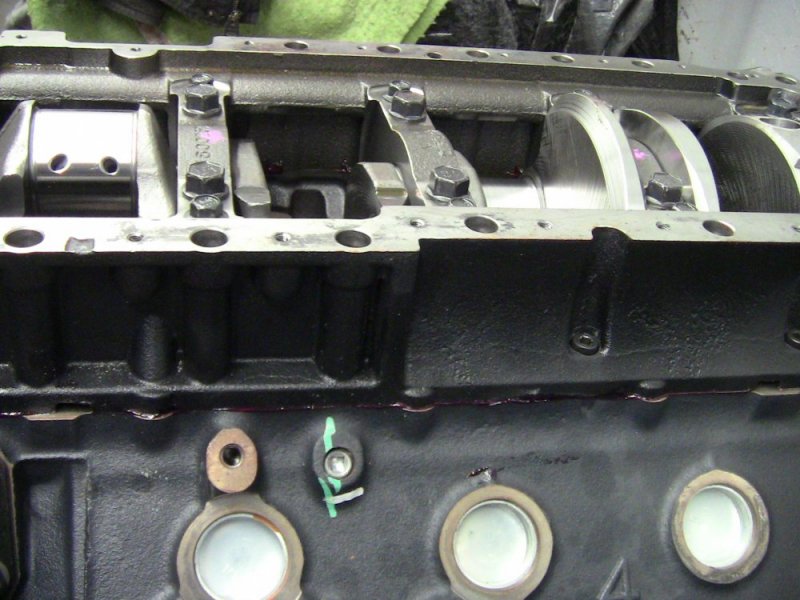

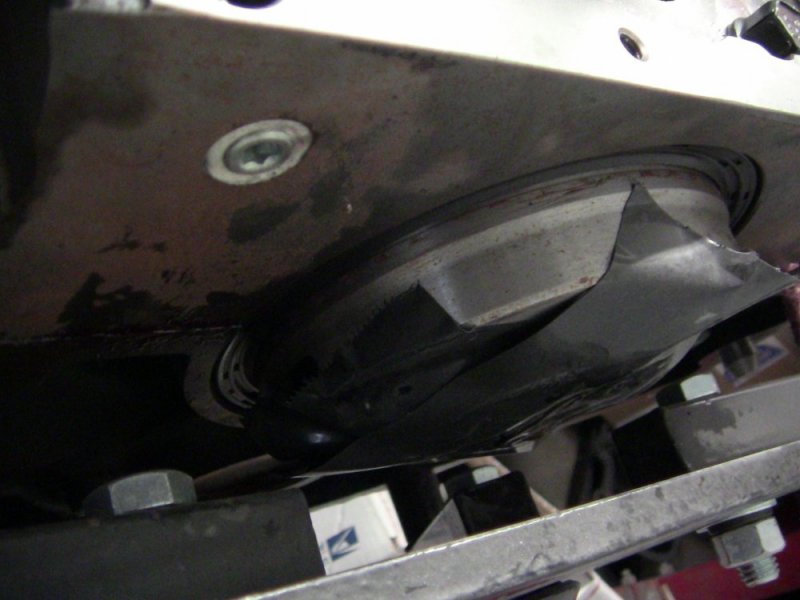

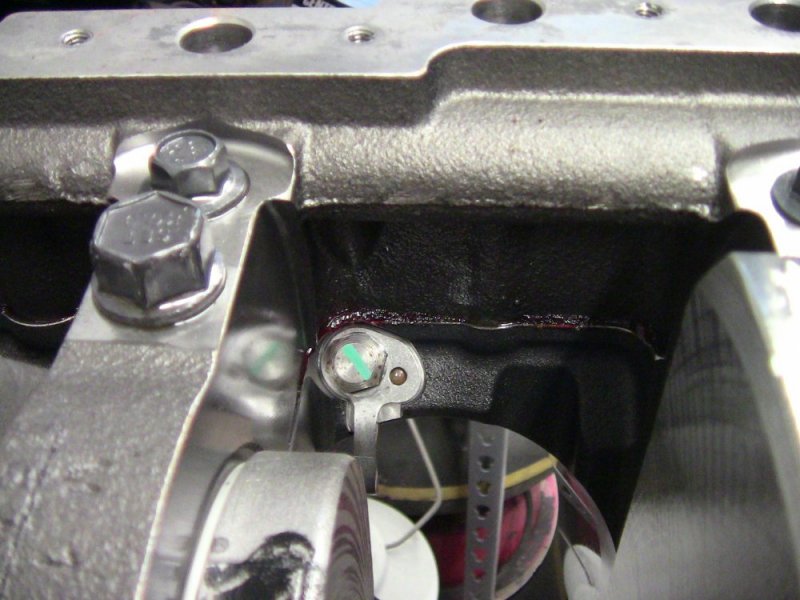

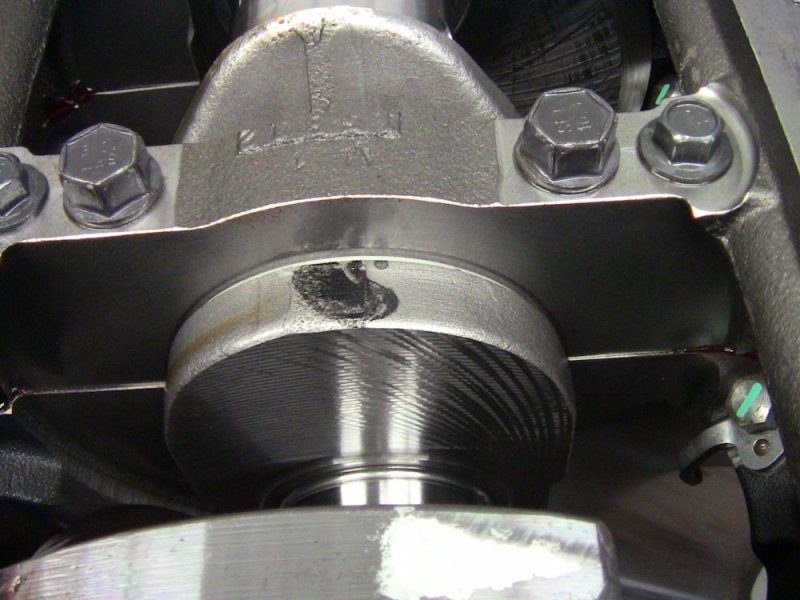

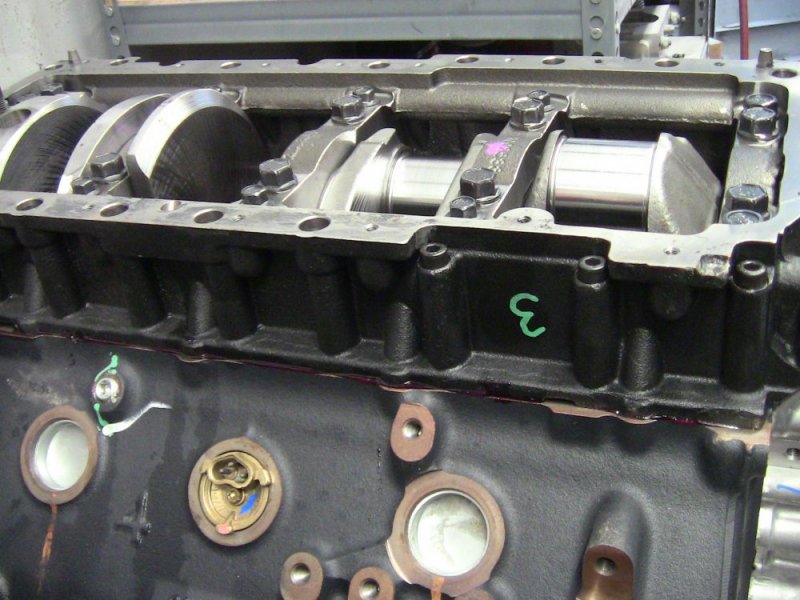

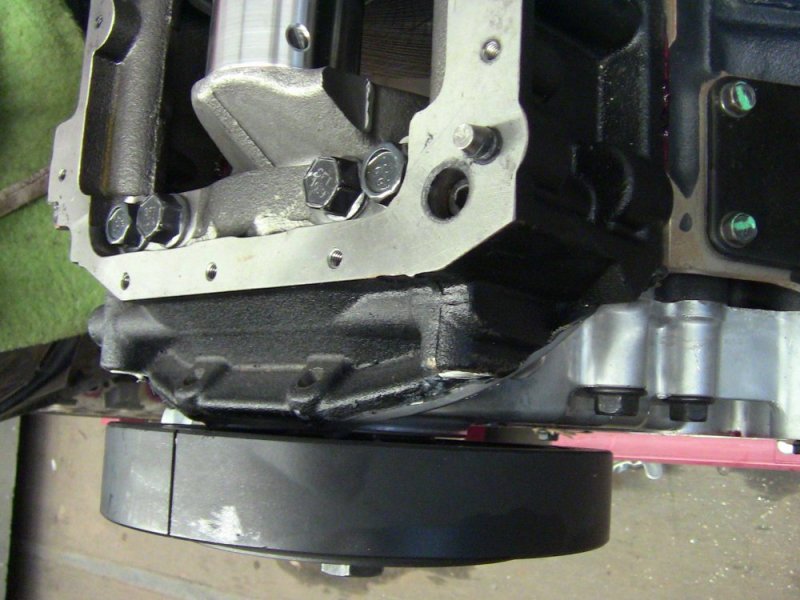

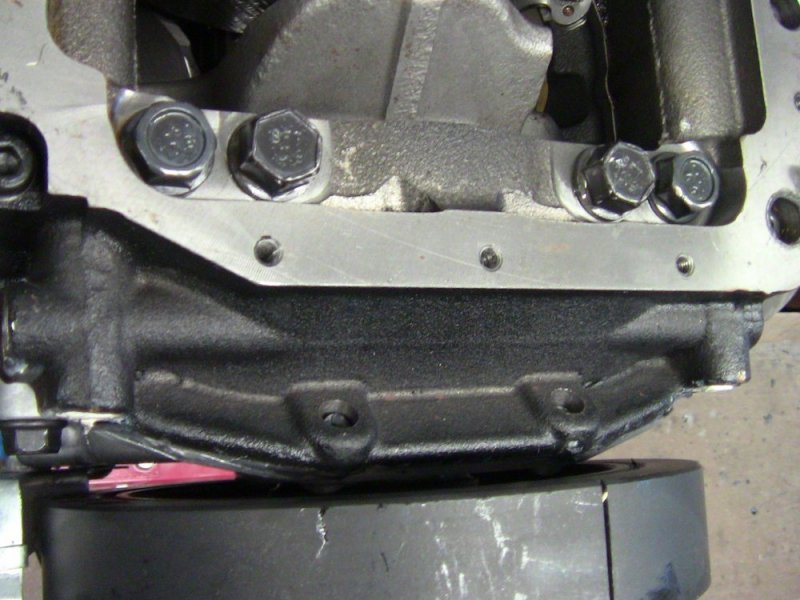

If you need high def pics of the P400 unit just let me know...


n8in8or

Well-Known Member
Messages
2,901
Reaction score
3,745
Location
Kalamazoo, MI
Thank you for posting these pictures. How about the threaded holes in the block that that is fastened to.....are those a different size or a different quantity from the standard oil pan mounting bolts? It looks similar, I just can't tell for sure. Thanks!


Twisted Steel Performance

Anything worth doing is worth overdoing.
Vendor
Messages
2,273
Reaction score
2,686
Location
Pauline, SC
I don't have a stock block striped down right now to compare, the allen bolts are larger than the older pan bolts, not sure of the bolt pattern tho...


n8in8or

Well-Known Member
Messages
2,901
Reaction score
3,745
Location
Kalamazoo, MI
I don't have a stock block striped down right now to compare, the allen bolts are larger than the older pan bolts, not sure of the bolt pattern tho...
Yeah I guess I’m not really looking for the bolt pattern, more just the number of bolts and the size of the bolts. If someone was to make a retrofit bedplate for GM/Optimizer blocks it would be good for comparison’s sake.
