Allison 2000 (July '01 Build) 4x4 conversion

jltait

New Member
Messages
3
Reaction score
3
Can anyone give me the parts list or point me in the direction to find a parts list to convert an Allison 2000 to 4x4 with a park pawl, while retaining the low ratio (wide ratio) the 2000 offers if possible. I know I will need a 4x4 extension housing, output shaft, c5 piston. I just don't know what planetary parts I need in the P3 to keep the wide ratio, or even if it exists.


THEFERMANATOR

FRANKENBURBAN
Staff member
Lead Moderator
Messages
9,845
Reaction score
3,889
Location
ZEPHYRHILLS FL
I'm not sure what all you would need. I know the GM extension housing uses GM's proprietary C5 piston and output shaft. I just don't know if you can interchange them or not.


Rockabillyrat

Well-Known Member
Messages
162
Reaction score
339
Location
Ohio
I've converted a 4wd 1000 to a 2wd 2000 before. You cant do the conversion without changing to the 1000 p3 planetary. If you want to keep the low gear ratio do a divorce mount transfer case.


jltait

New Member
Messages
3
Reaction score
3
Thanks for the replies, I will have to swap out to the 1000 p3 planet then. I do not want to go with a divorced t-case. Rockbillyrat, out of curiosity, what is it about the 2000 p3 planet that the 1000 4x4 shaft wont work, is it the size and or spline count cut into the P3 different between the two? I've worked on quite a few Auto's, but never an Allison so please be patient as I learn.

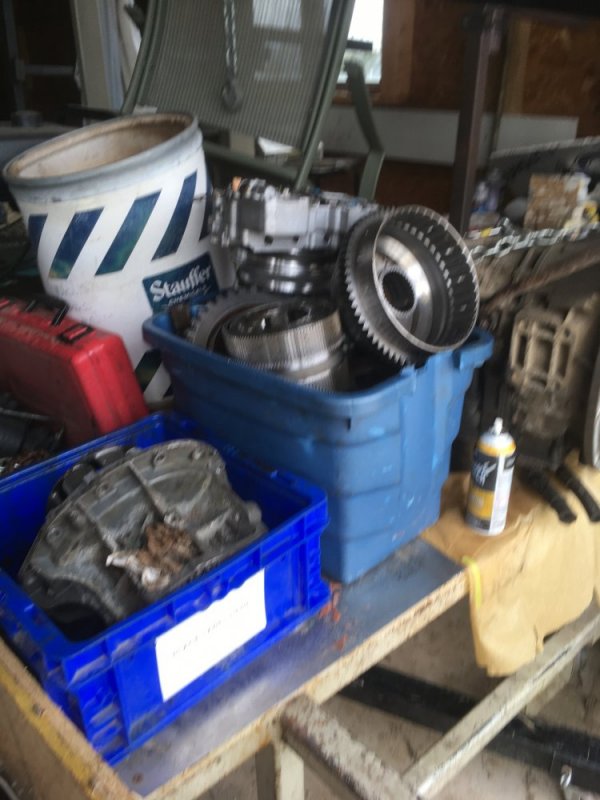

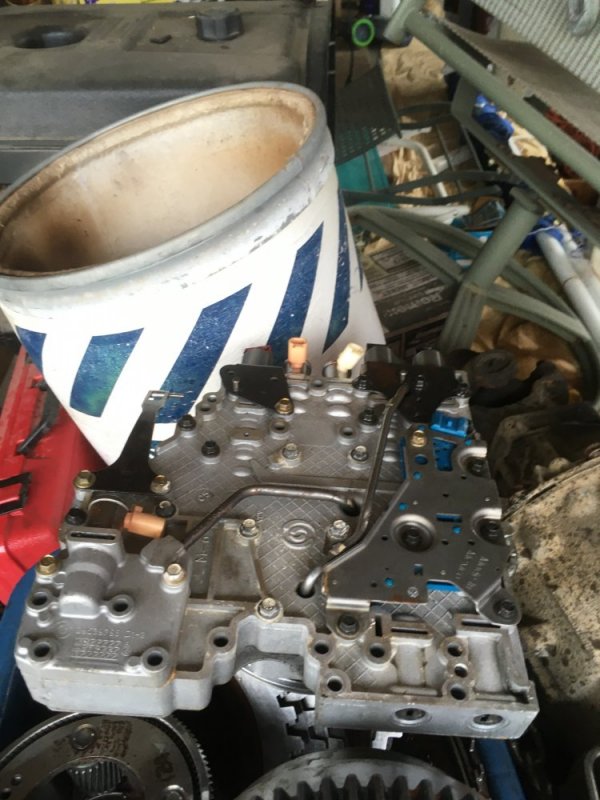

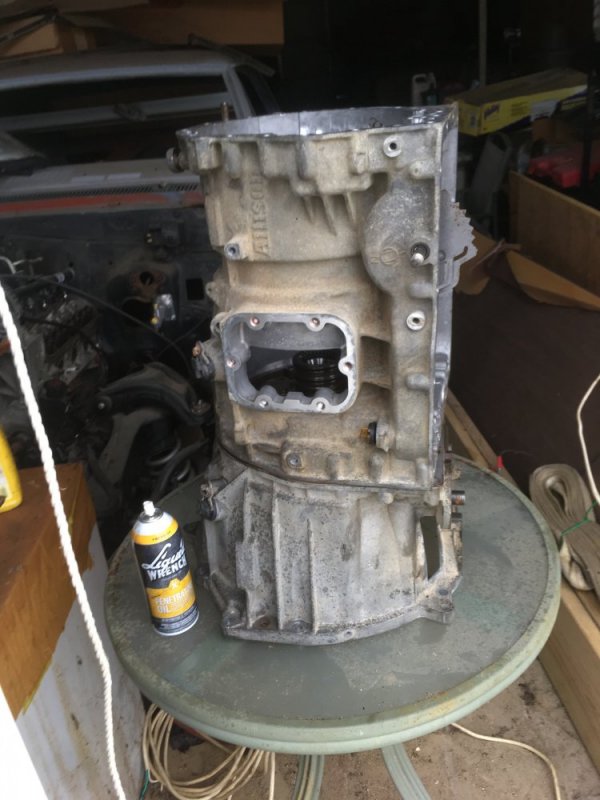

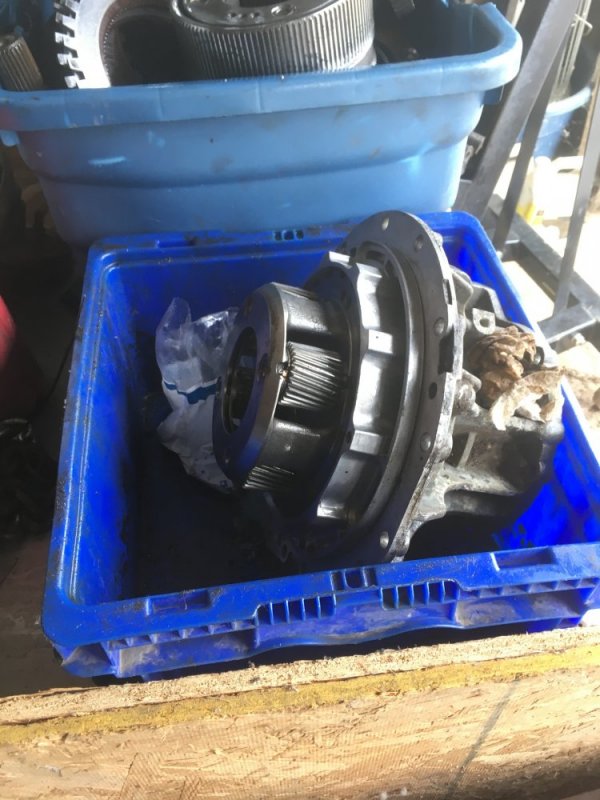

Thanks again to all who replied. This will be a slow project, but I'll keep this forum updated.


jltait

New Member
Messages
3
Reaction score
3
That's good information about the 4x4 Kodiak's Fermanator. I remember reading they had divorced t-cases....NV273's, I think
