1969 IH 1300D 4X4 - Pump Truck

I would love one of those for a project. Id like a little driver I can leave the top off 24/7 and take when its nice out!
Yeah. He loves these little binders but has been much too busy on the job and home projects to do anything with them.
After my back gets healed and the doc gives me the go ahead. The first thing thats going to happen is the 59 Dodge W100 is getting the brakes rebuilt all the way around and new brake shoes. Now probably have to flush the fuel system and rebuild the carb and then be done with that project.

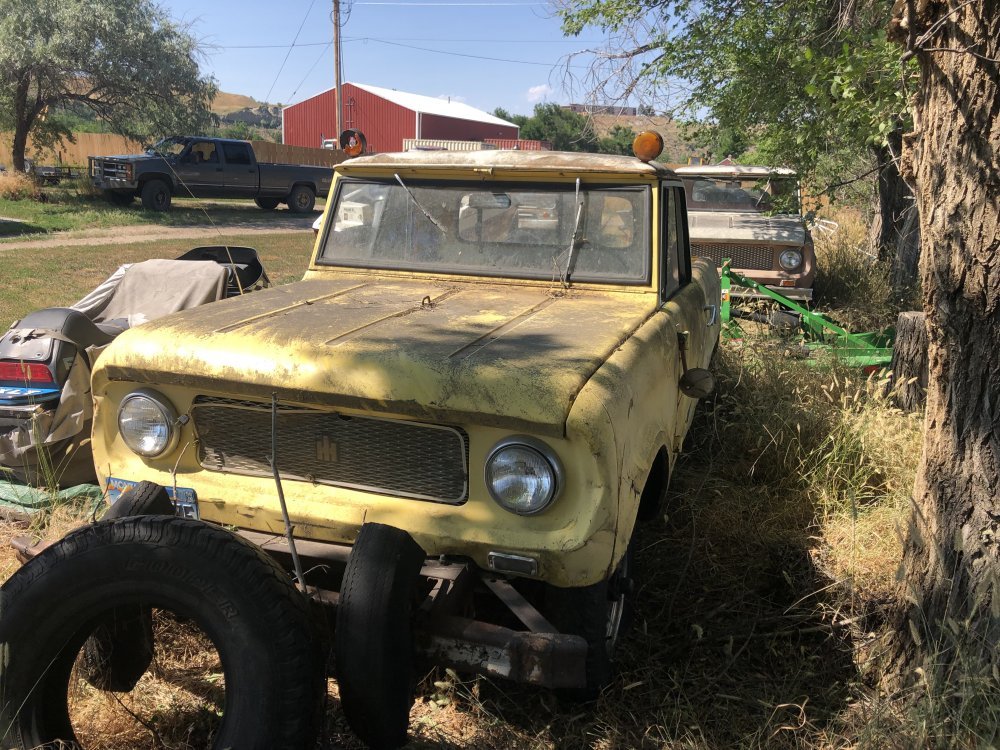

When that is done then I think the yellow Scout will get shoved into the garage and get it road worthy and after it is finished then it will be that red carpet special and see how close to original we can make it.

Bit of an update here. Planning my winter projects, this year its minimal due to family, life, you know the drill. First 2 on the list:
  • Take care of rust scale on drivers floor board; and

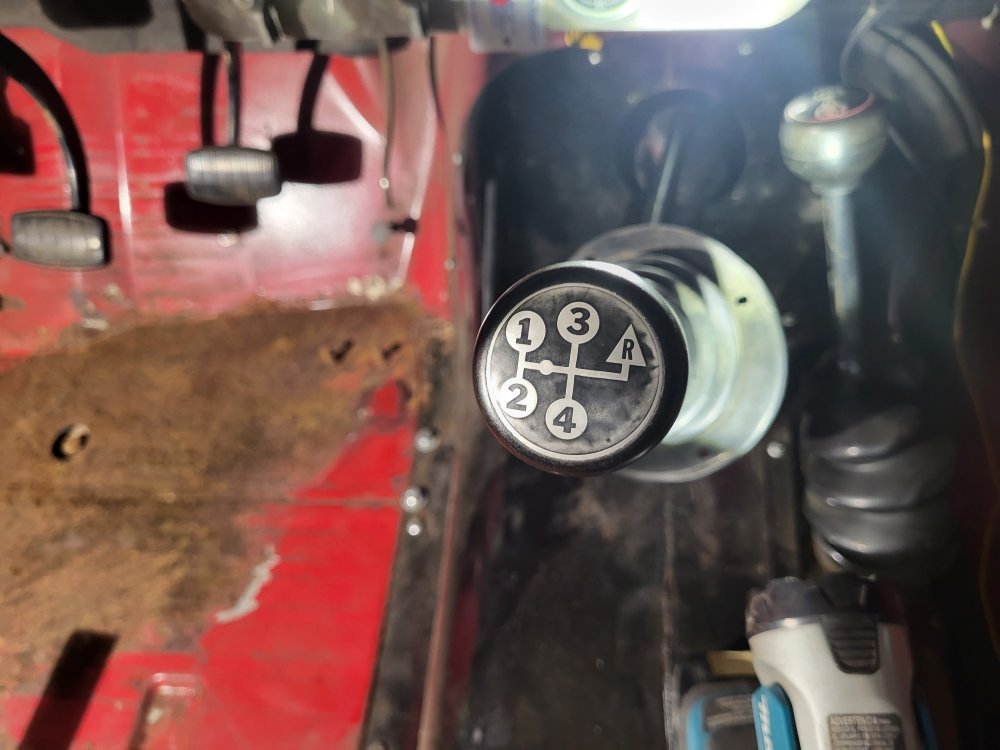

  • Attempt a fix on the looser than loose shift knob.

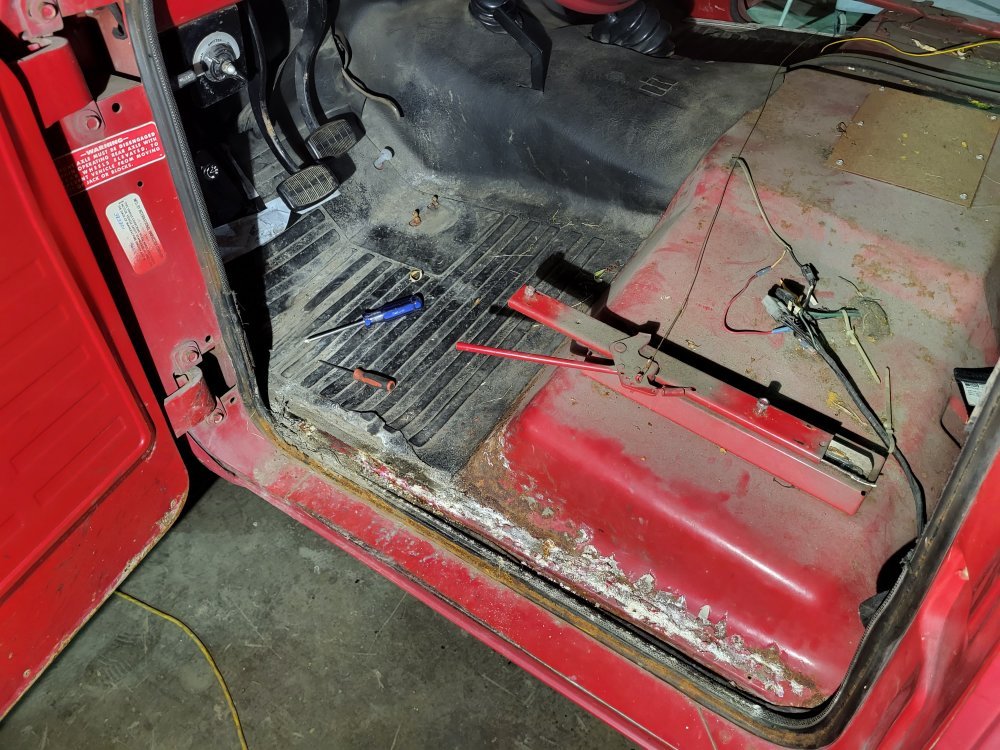

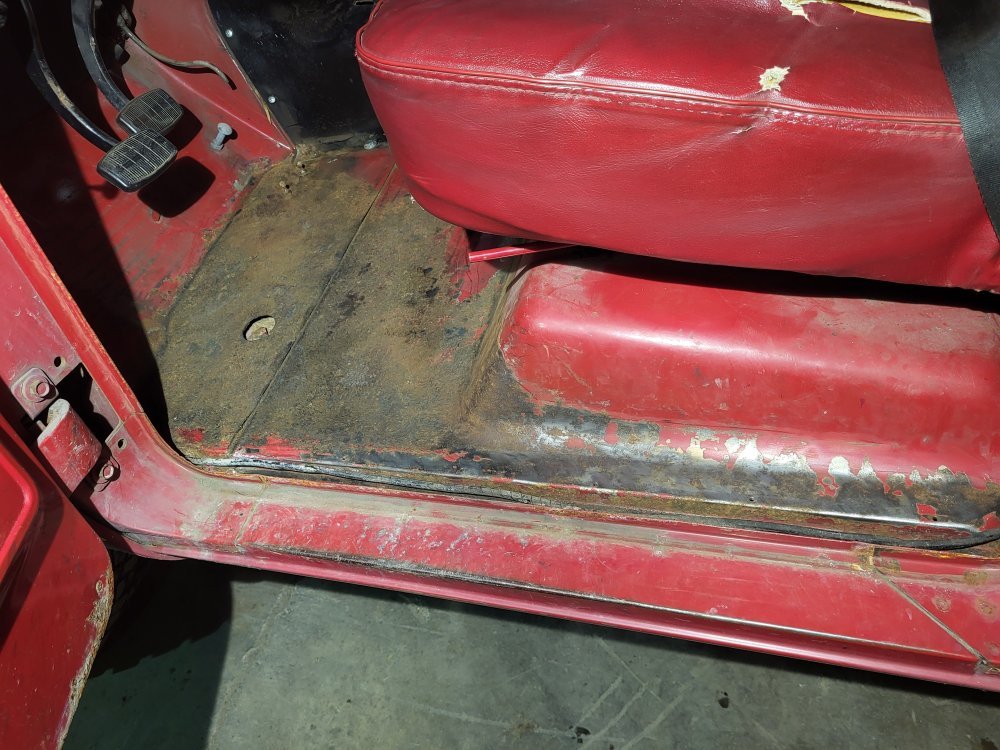

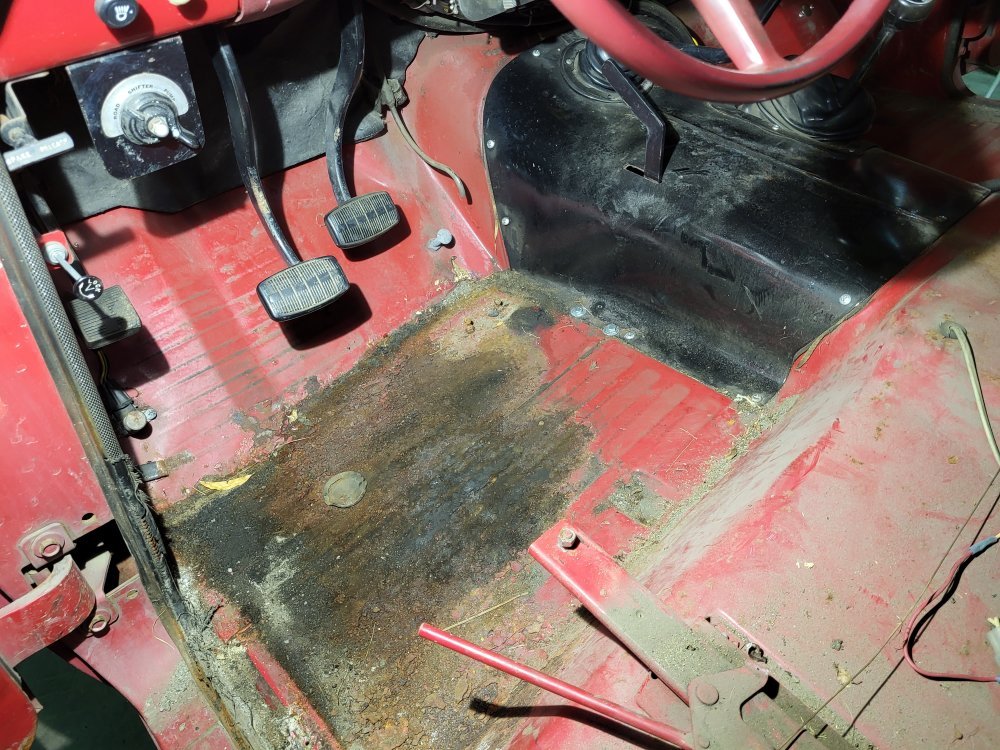

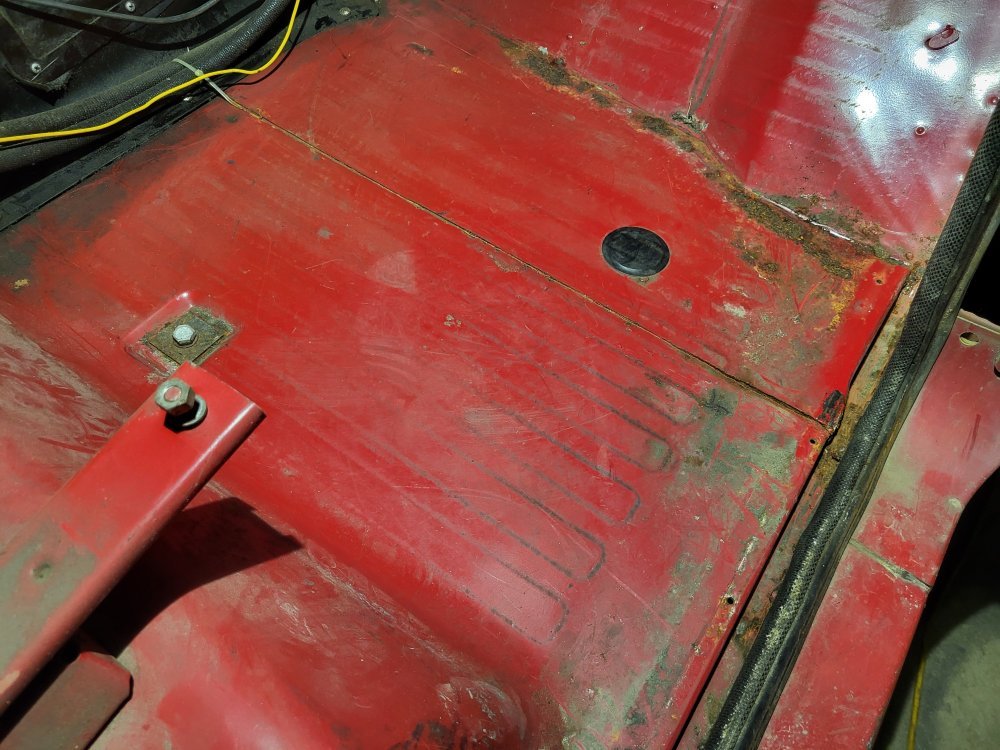

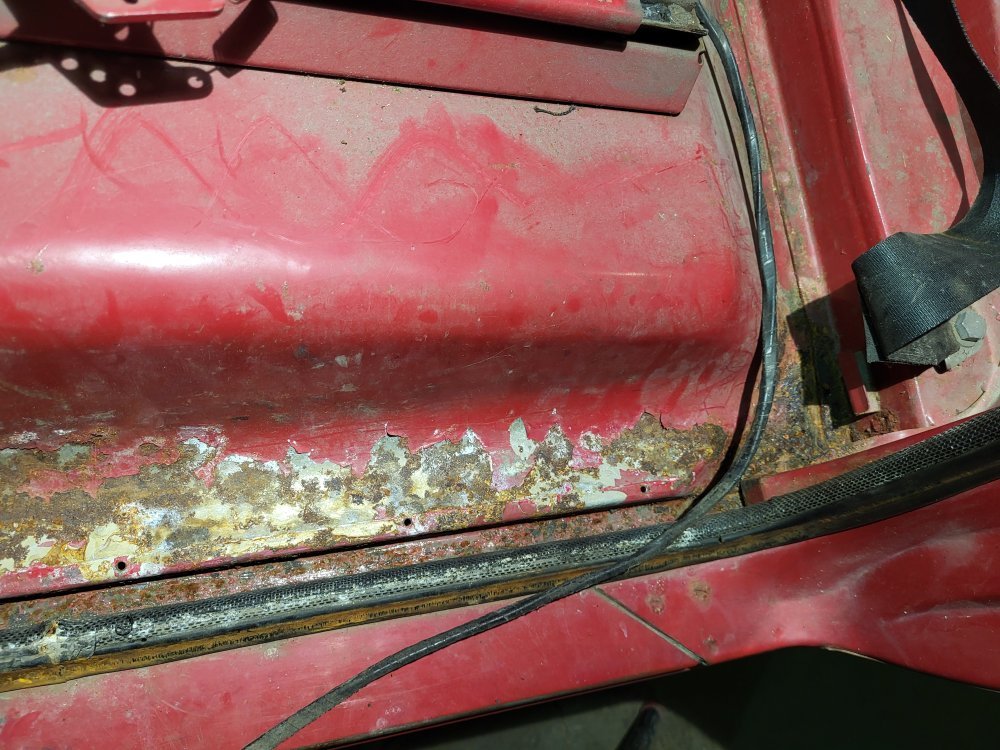

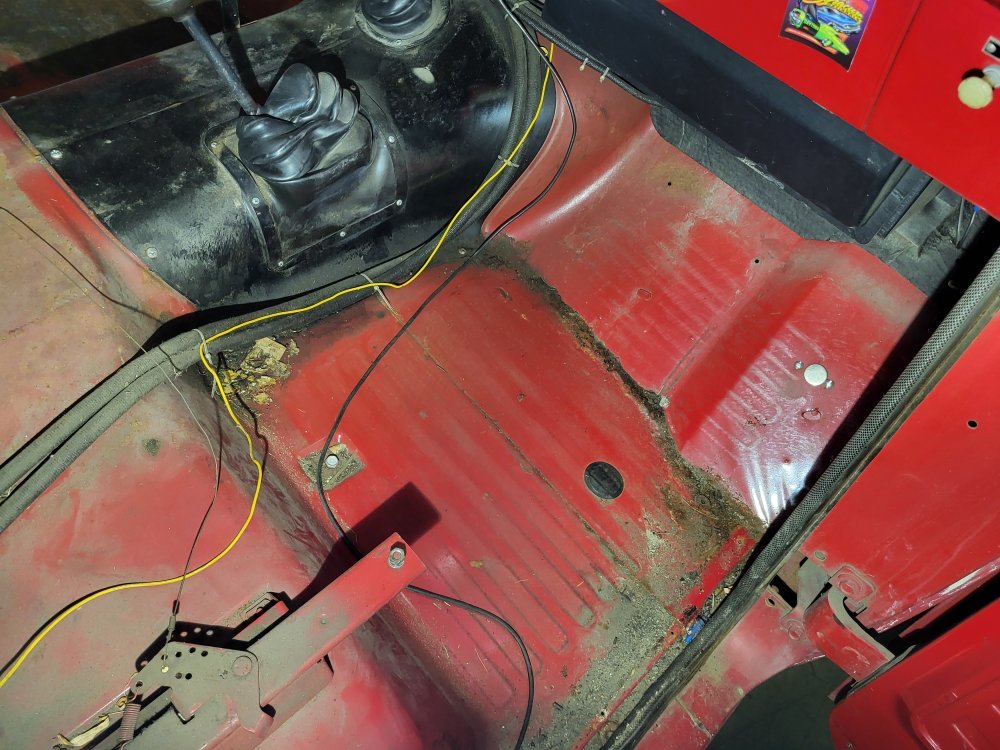

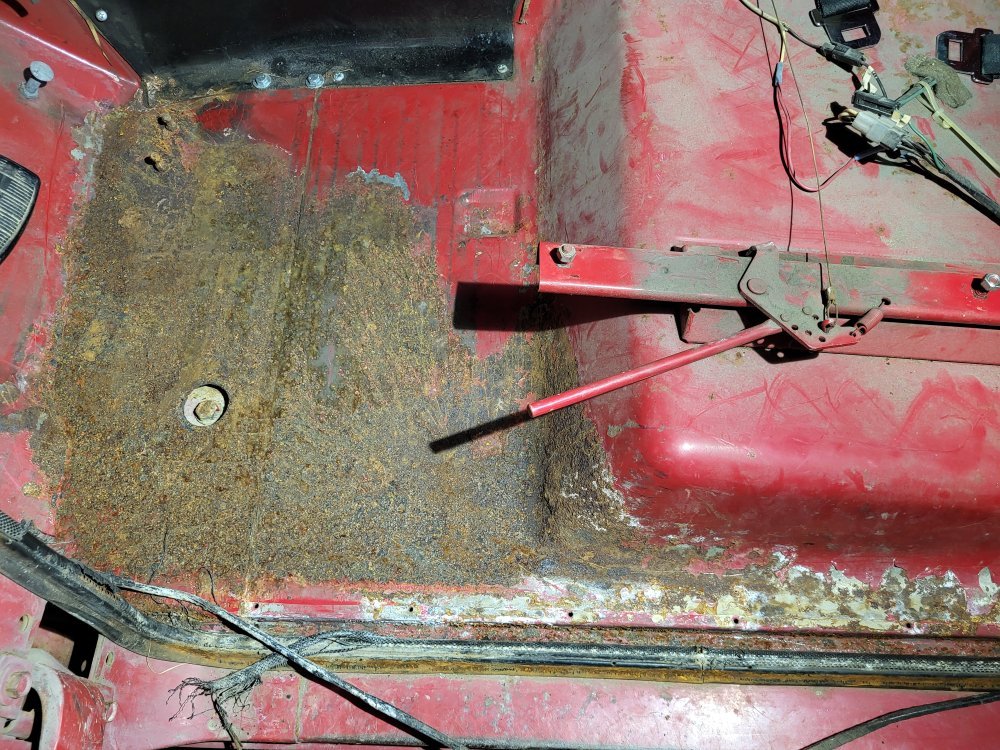

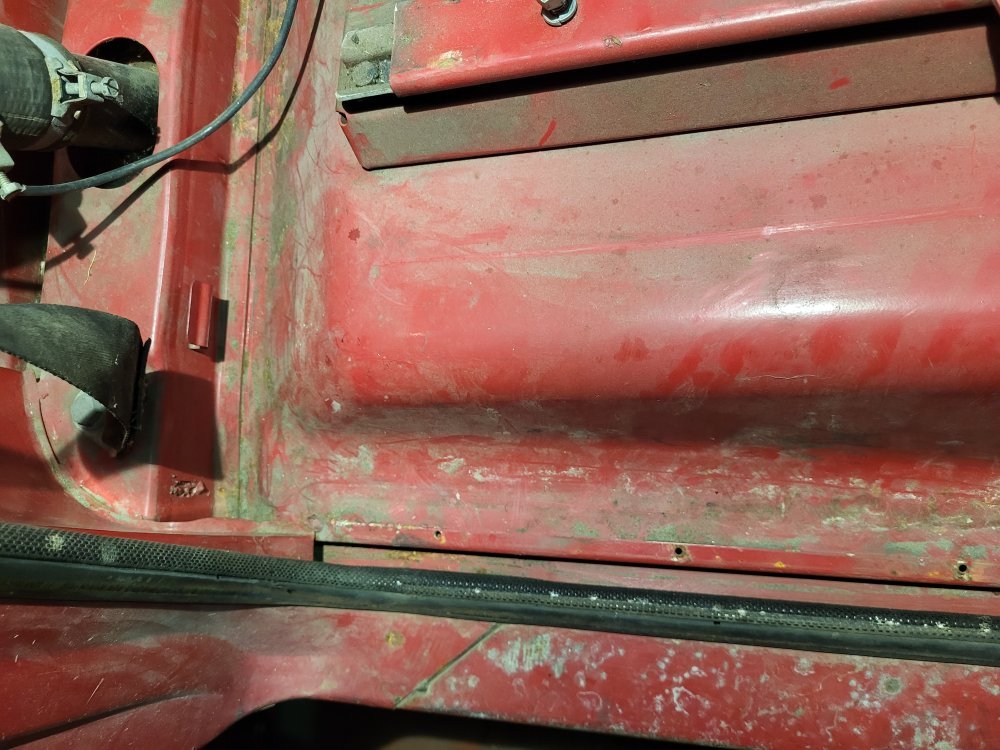

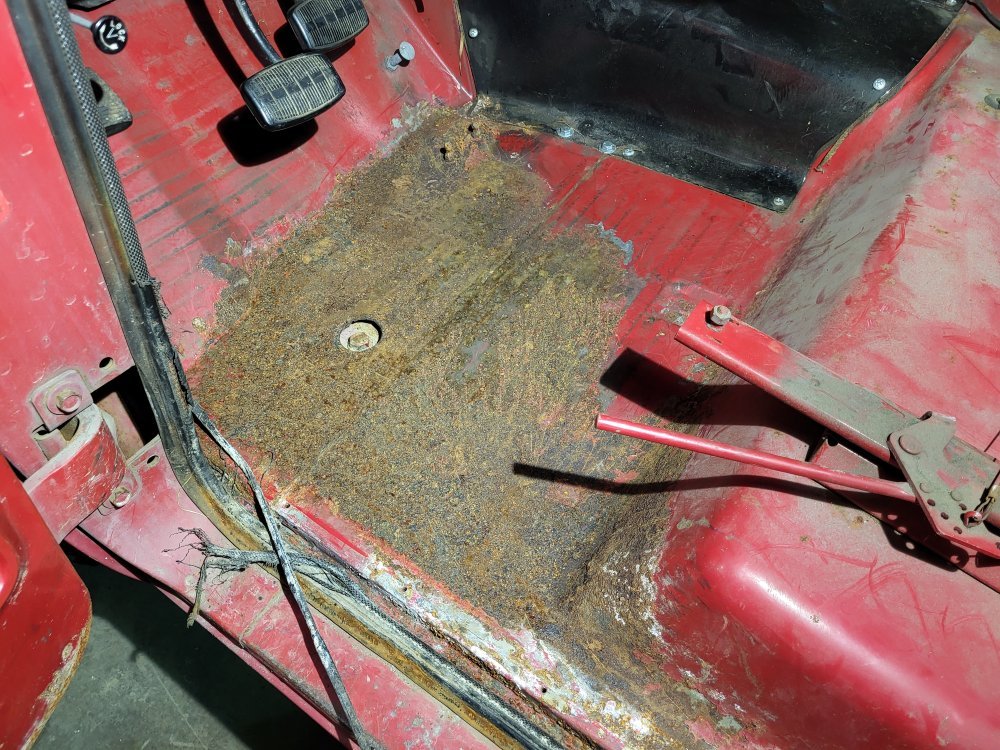

It looks a little rougher than I hoped under the disintegrating IH floor mat. All in all for the age, what it was used for, and the comparable truck this is in great shape.

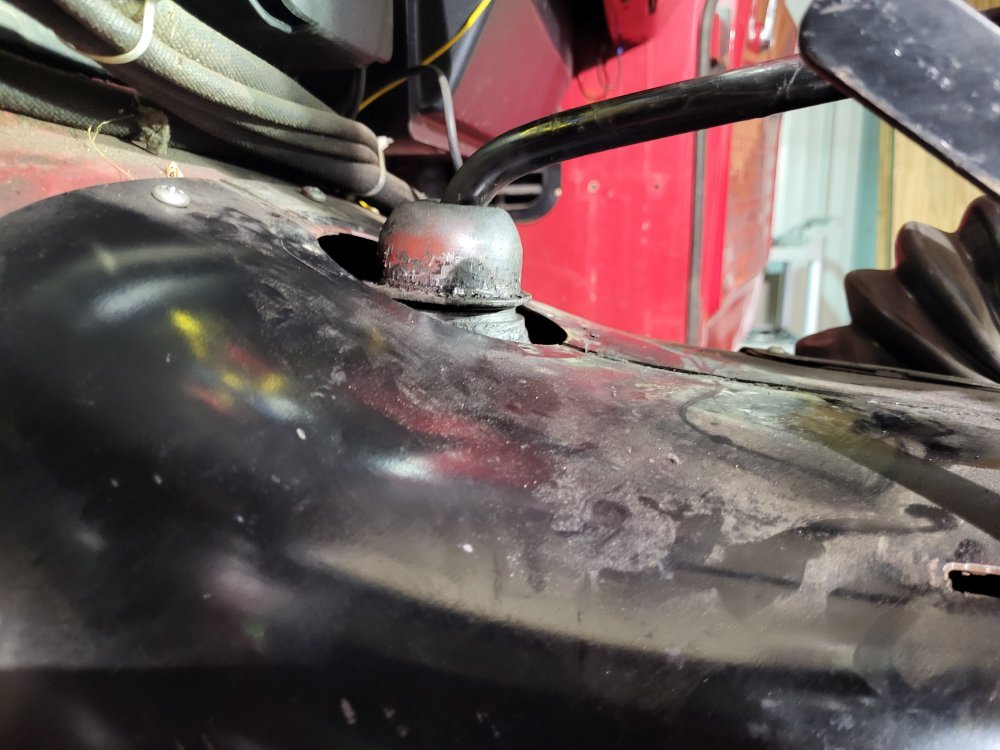

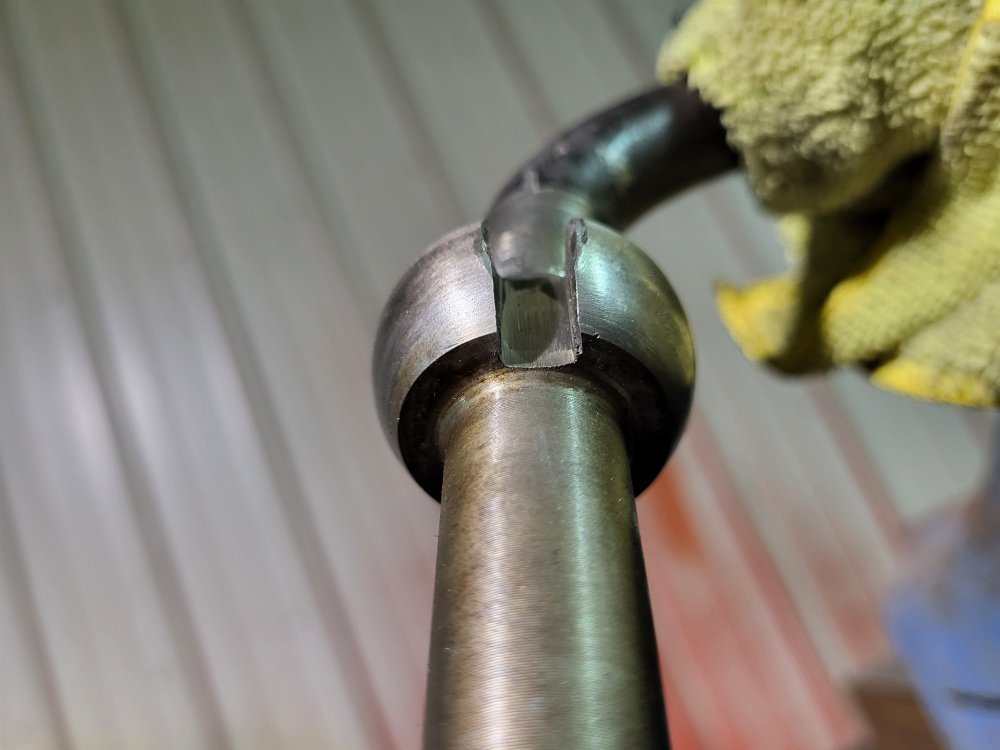

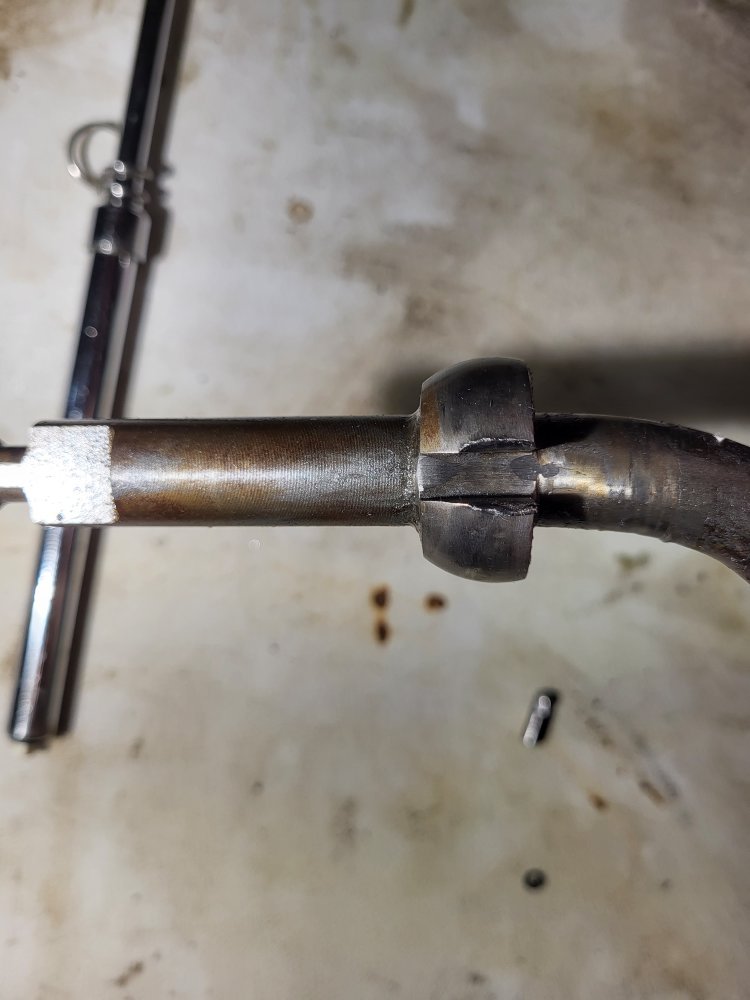

As I figured, the shift pin is roasted, so much to the point the shifter base is actually worn:

Did some cleaning, measuring, cleaning, fixing of the community shop vacuum, etc.
20240129_130415.jpg20240129_130421.jpg20240129_130435.jpg20240129_130710.jpg20240129_130715.jpg

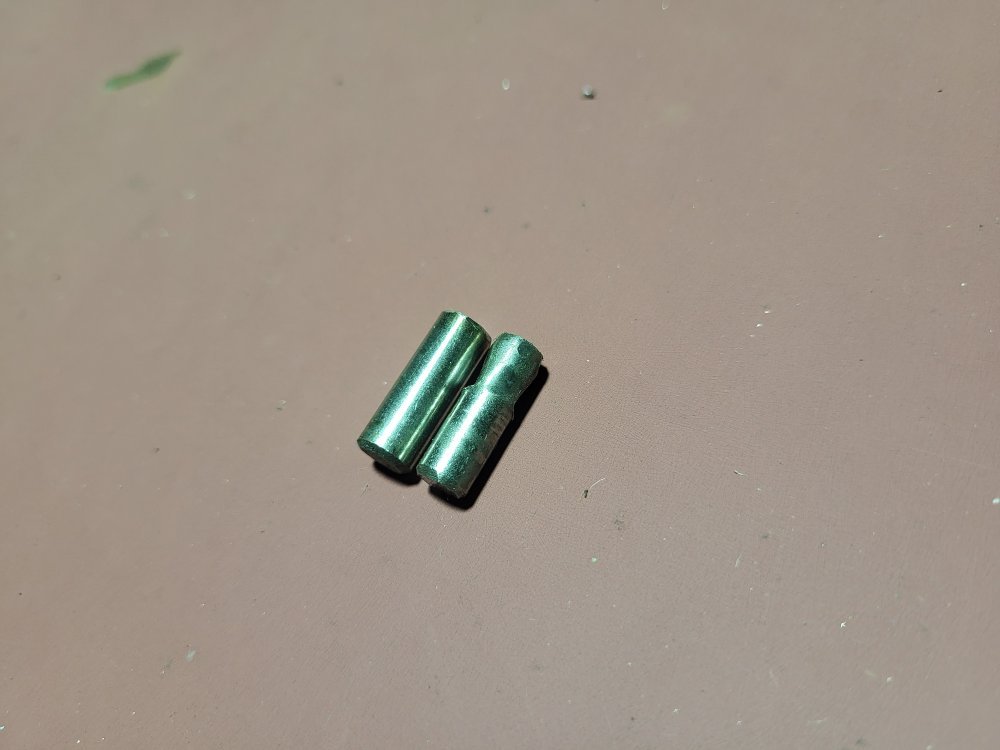

I will be doing the "drill bit" mod on the shifter pin. Stock size is 1/4'', I had hoped to upsize to 17/64'' but its still a little loose. If we are going this far, and how much it actually gets driven we are going up 2 sizes to 9/32s bringing us back to the dealer lot in '69. I ordered a bit off amazon I will be using to drill the tower, and cut off the butt end to make a new pin.

Pertaining to the floor my plan is to apply some type of rust converter/sealer after we scrape it the best we can. Then we will top coat with some IH red.

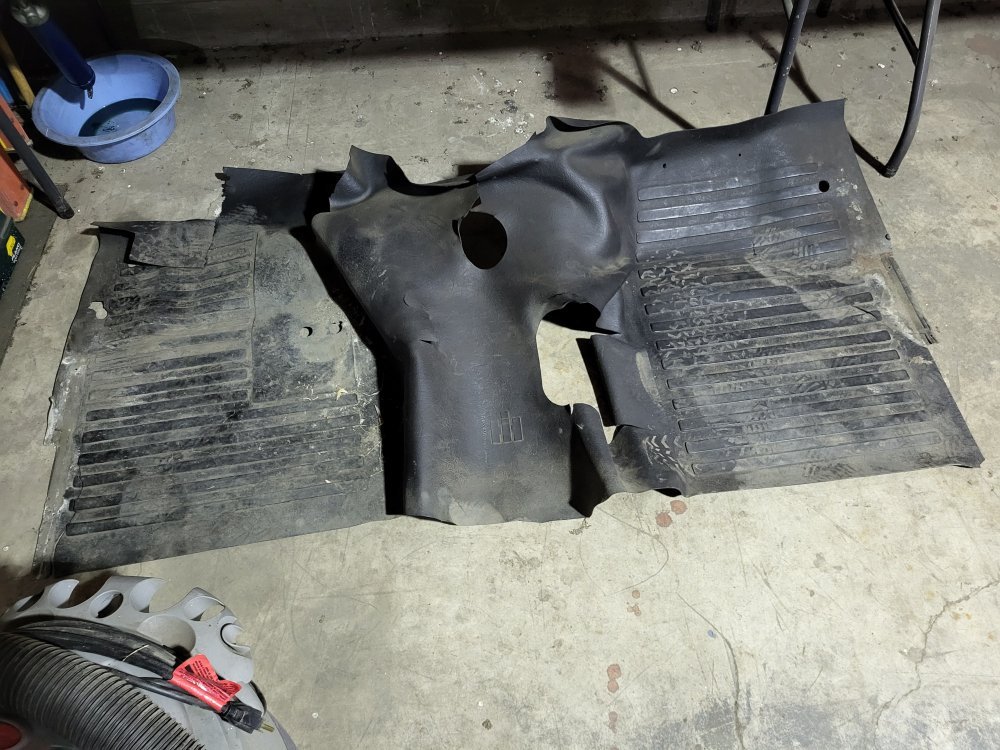

Wondering what to do with the floor mat. I really like it as its the OEM IH, but it is literally disintegrating.

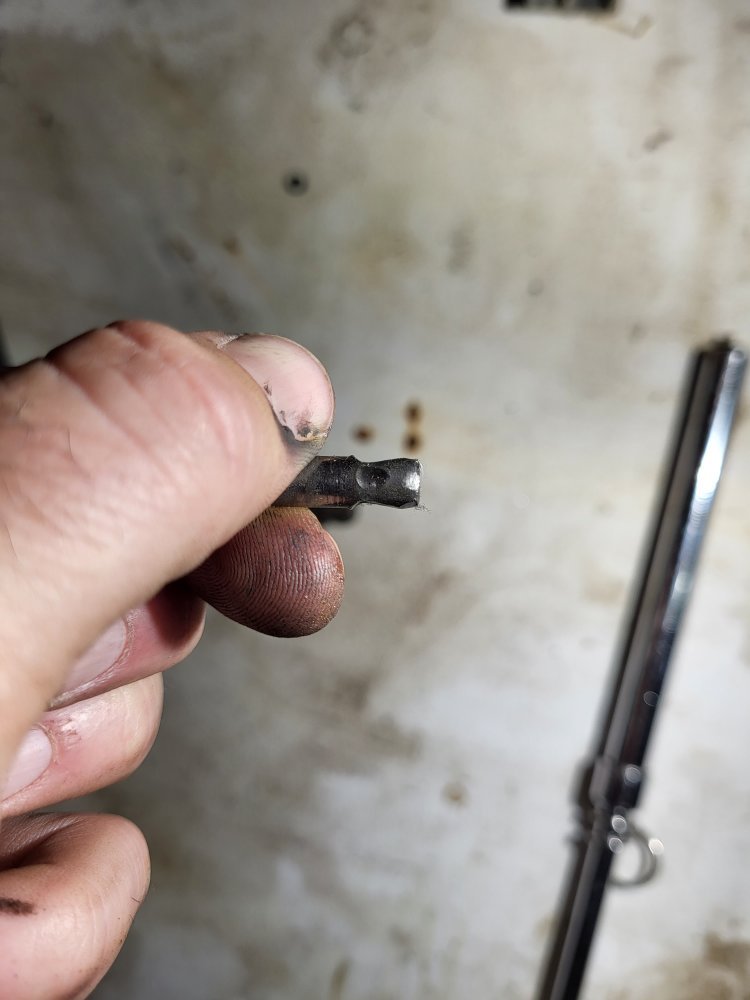

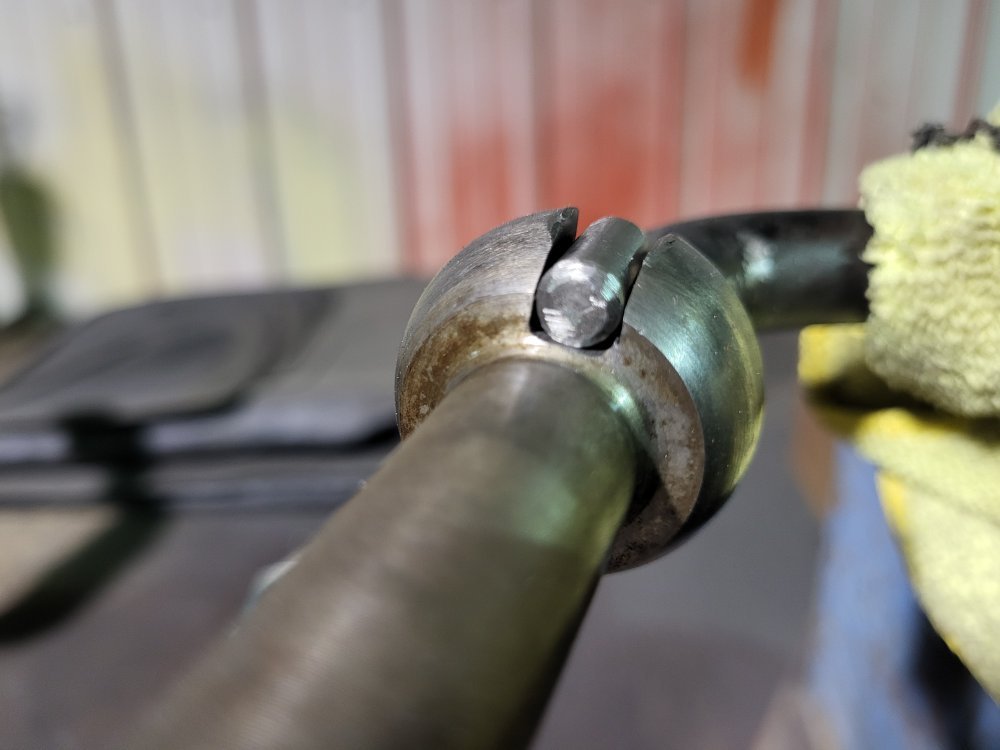

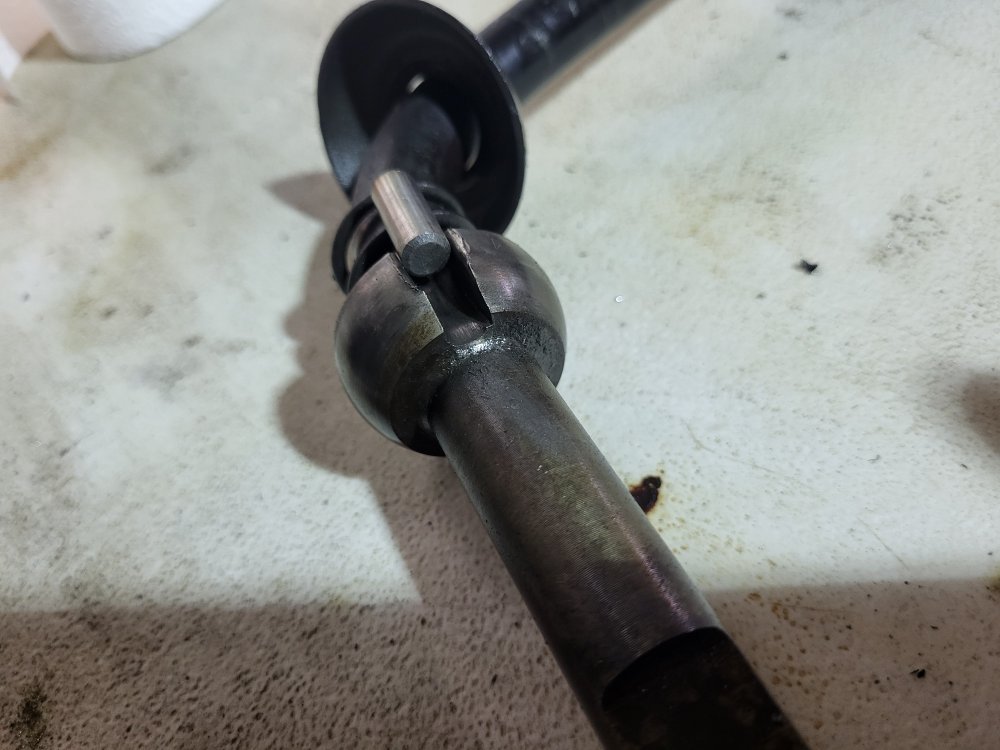

Got the shifter tower all ground out and accepting of the new drill bit that identifies as a pin....

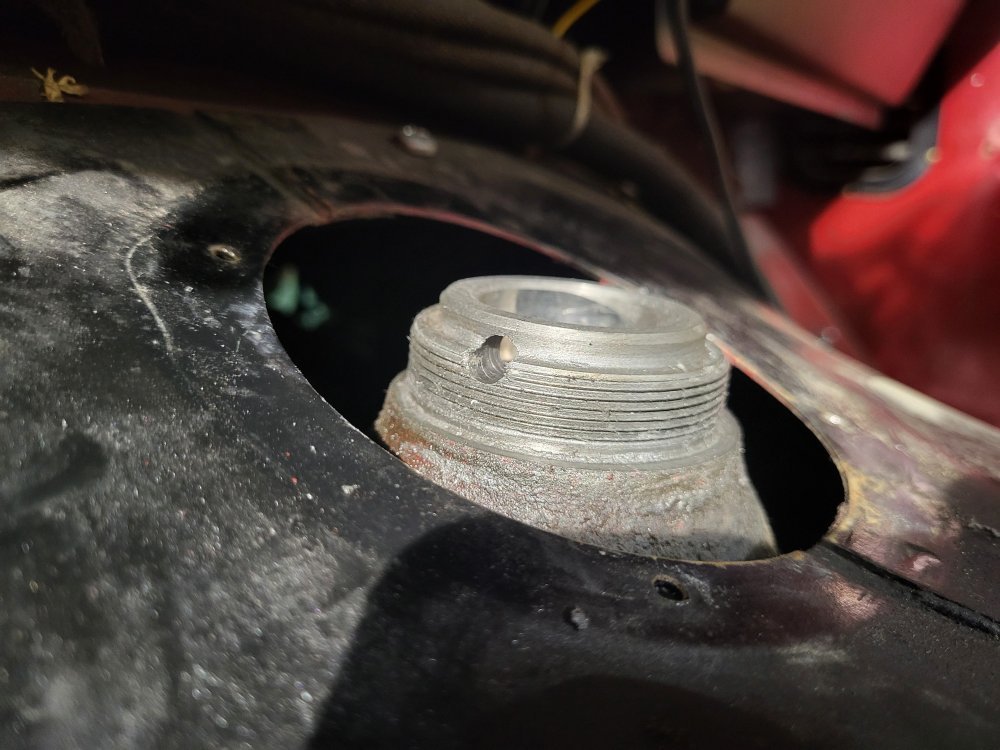

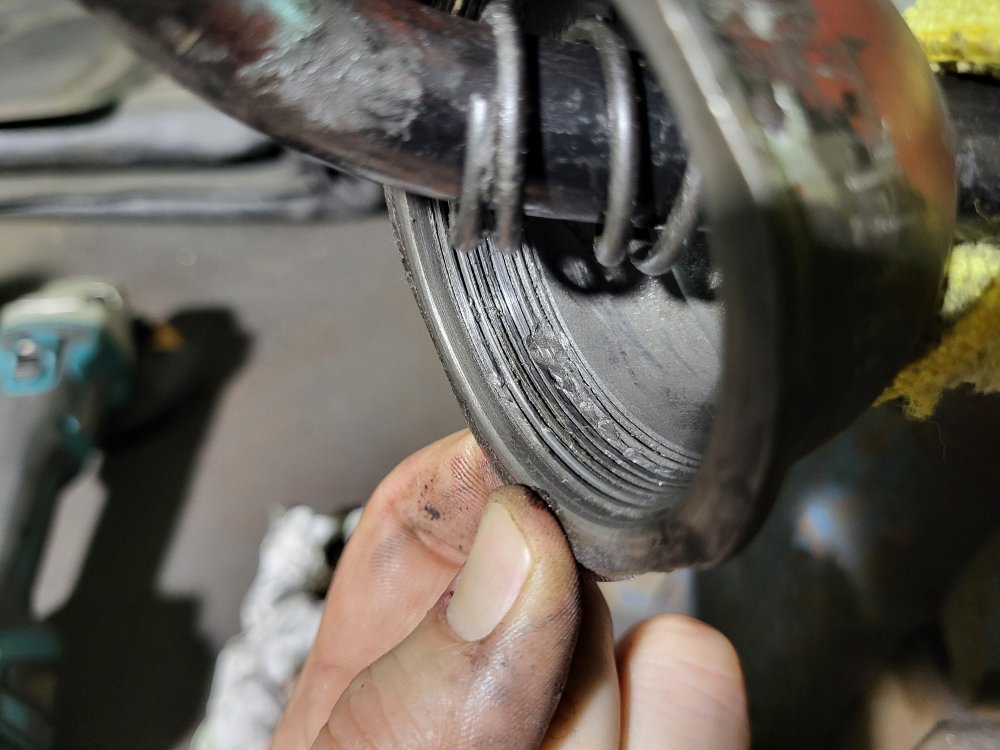

Man the threads on this cup are horrid from the previous pin. I tried getting the shifter knob off which is held on by red lock-tite apparently. I really don't want to damage it as its in great shape. Tried to take the pick the best I could and clean them out but its not the greatest.

Started what I was dreading to start. The oxidized paint restoration. I started on an area you couldnt see, the roof. Started off with several types of compounds ot see what they would do. Unfortunately we found tons of deep scratches (or maybe cracks?), swirl marks, and gouges from years of neglect. I could just polish and wax to bring the shine back, but the scratches show very prominent. Id rather have it flat. There is no heavy cut compound (most barely ever tough 800 grit) that can handle this. It needs to be wet sanded prior.

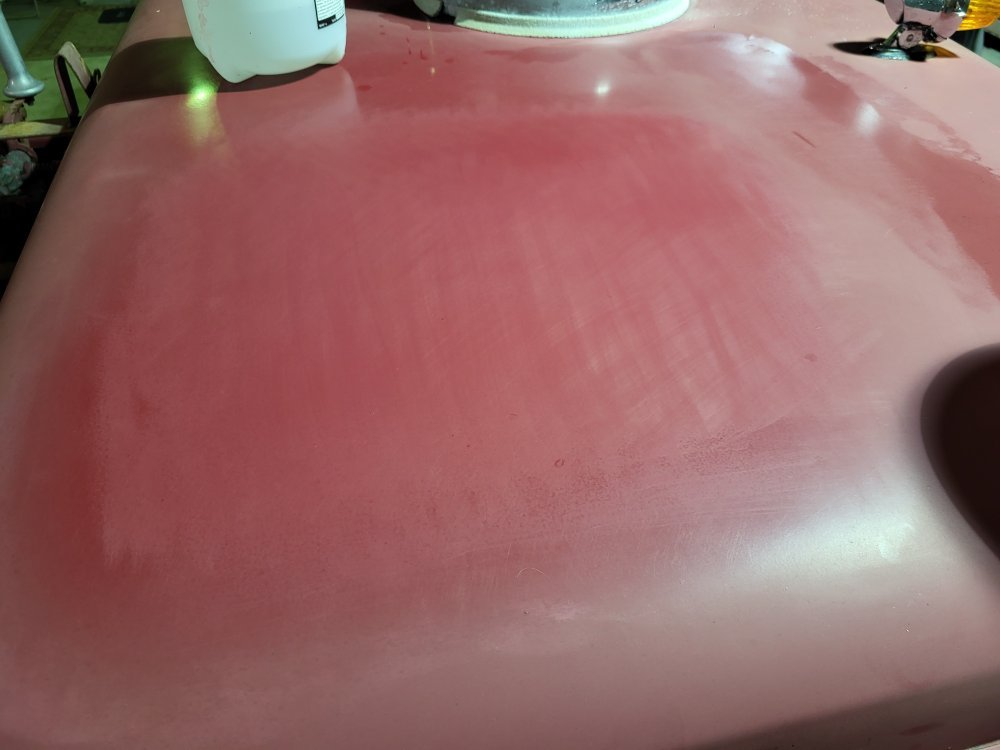

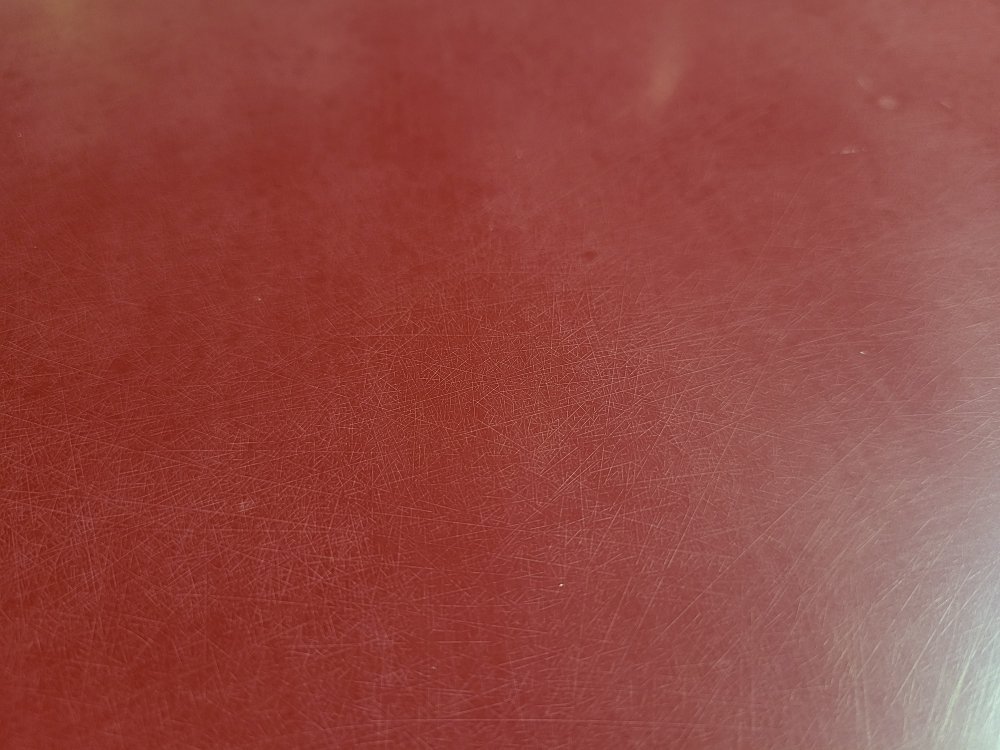

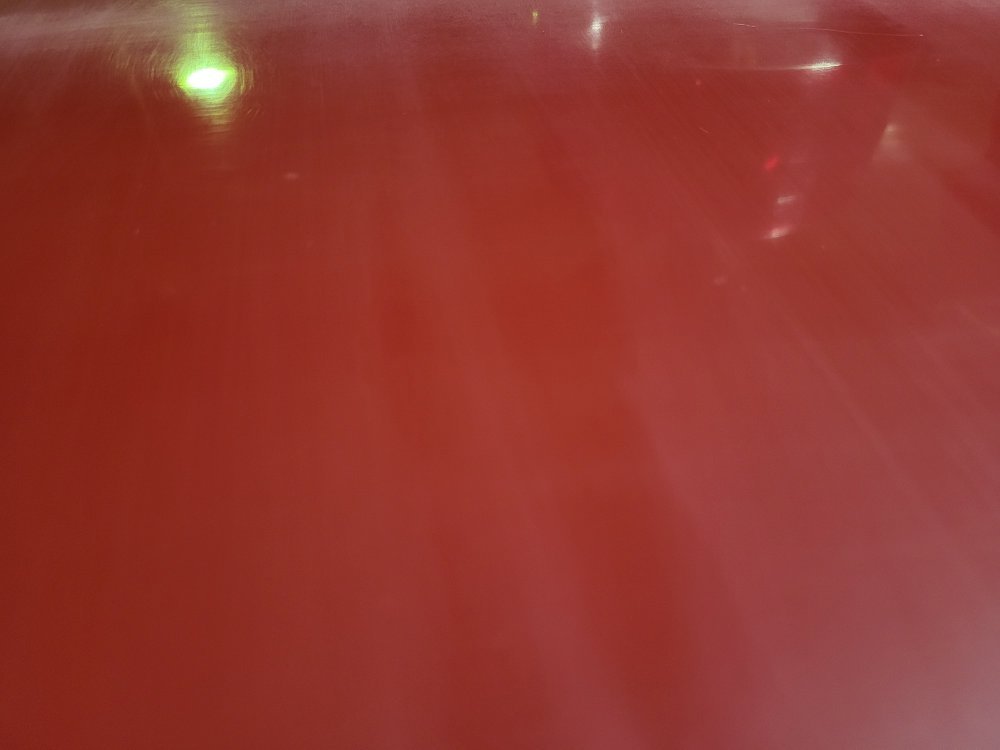

This is the best closeup I got:

I started messing with the painful task of wet sanding, starting with 800, 1200, then 2000. I really need to get a proper block set, this was by hand with a block of wood.

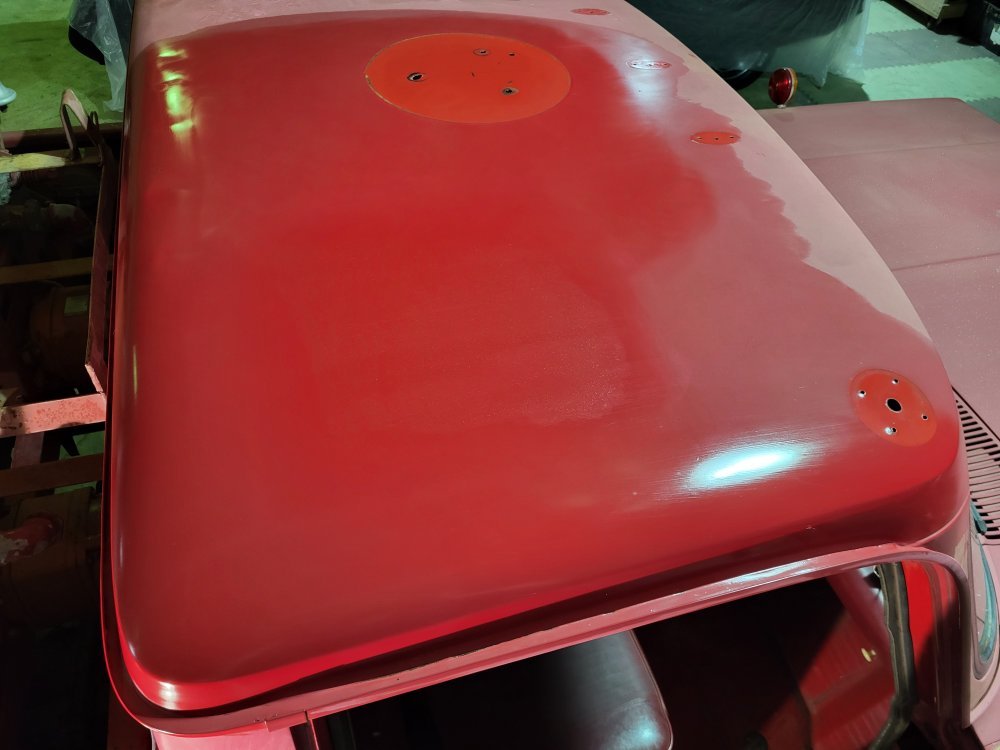

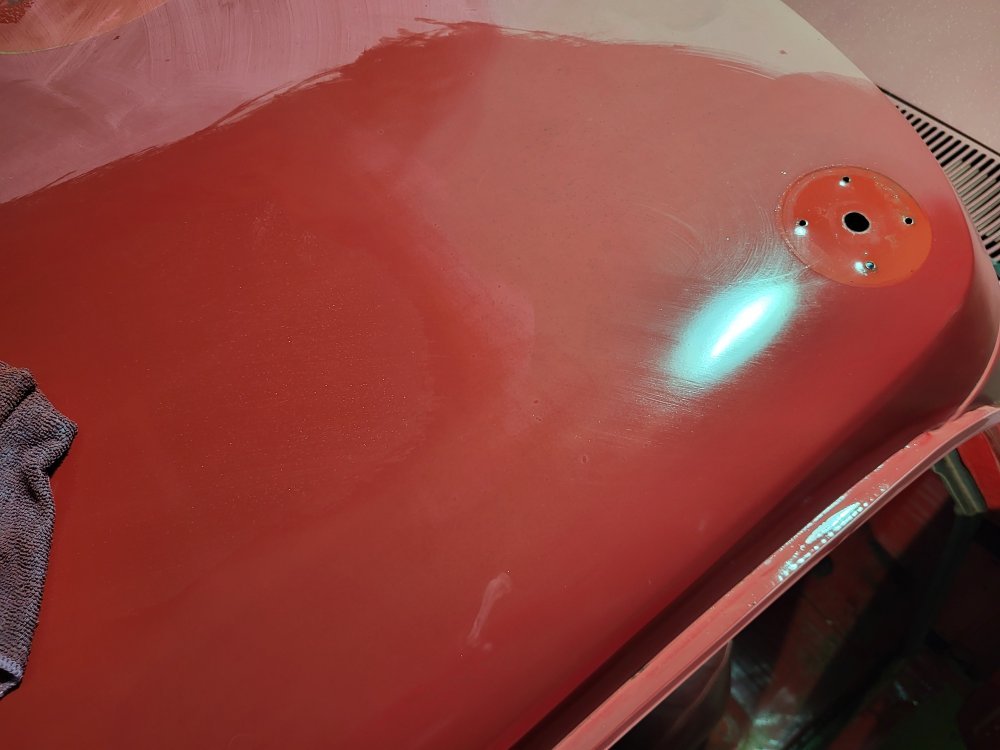

Still didnt touch the scratches. So i went to 400, 800, 1200, 2000. You can still see some of my wet sanding marks here, this was only 1 pass with compound on the buffer. Now I am seeing progress:

This project is going to be really tough. Contemplating life decisions at the moment.......

Yes sir, I've got a DA and a standard rotary buffer. But nothing as of yet for the wet sanding. I need to find a way to make that more automated.

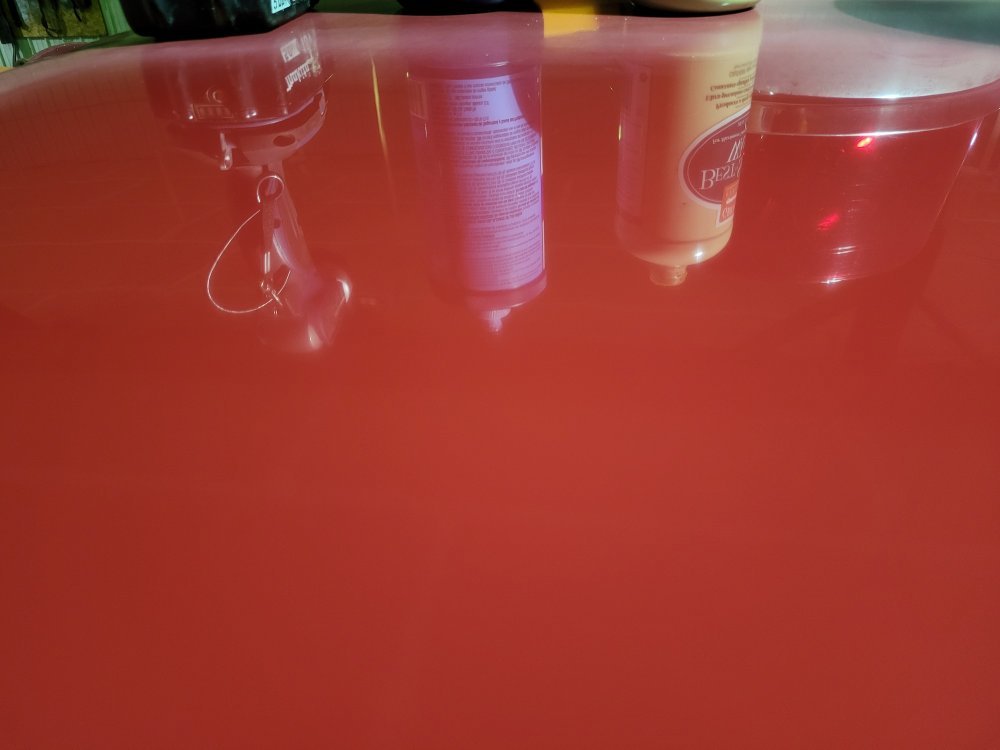

I did go out and mess with it more this morning, the method with best results: sand 400, sand 800, sand 1200, sand 2000, go at it with compound, do another round of compound, buff with polish, then wax on, wax off as Mr. Miagi would say. Unreal the change!

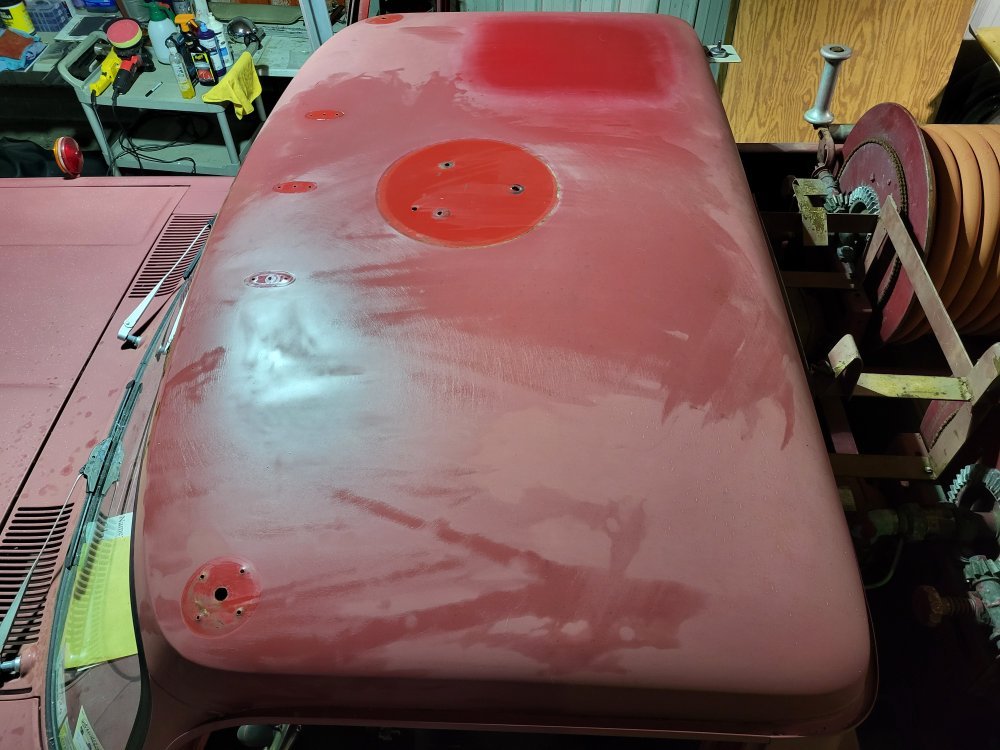

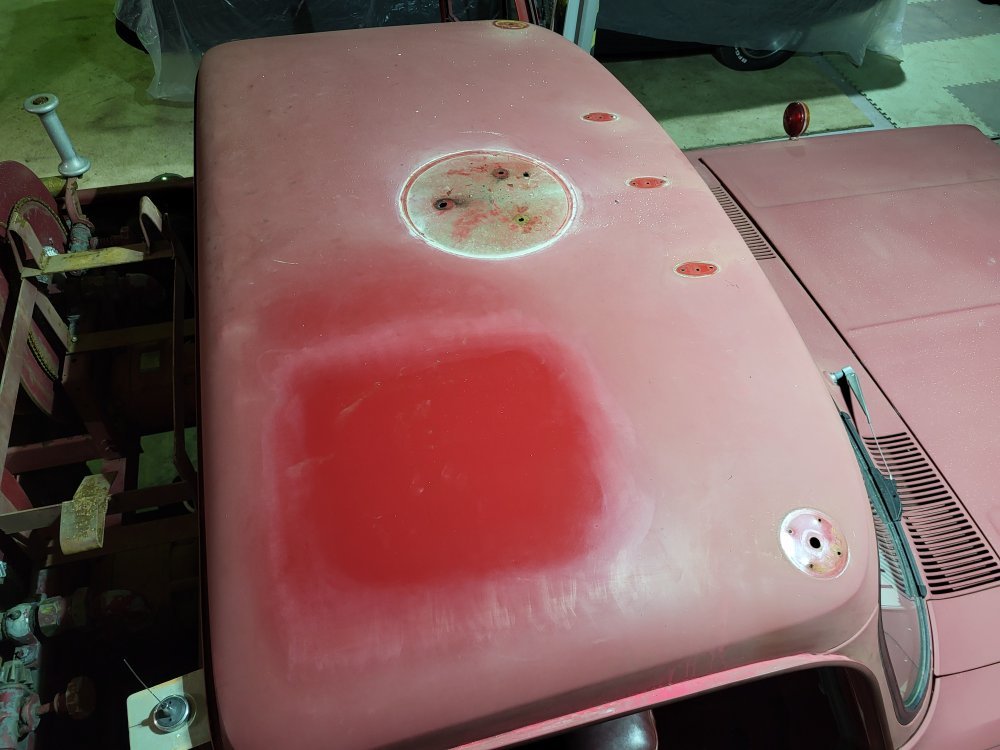

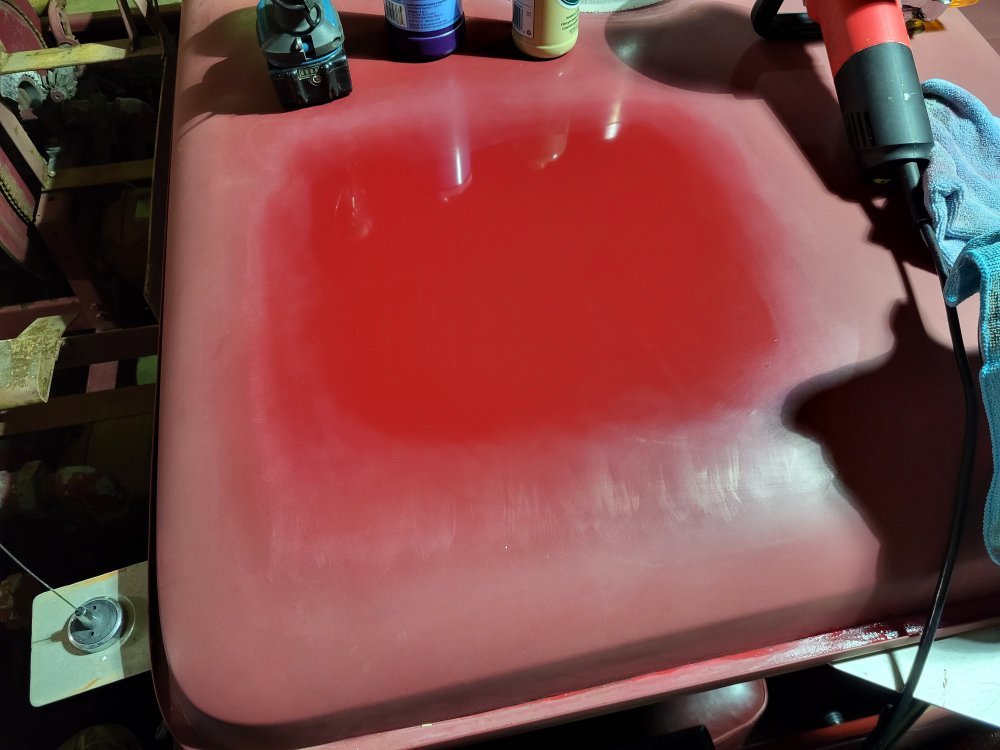

Spent more time at it today all by hand. I have to change that up, will go looking for another DA this weekend for wetsanding the big areas. Some great persepctive pictures here of areas where I havent touched (really dirty looking, even though I washed it 2-days ago), wet-sanded with 400 by hand and wiped off (looking much more red), and the adjacent area where I wiped over but havent sanded (dull red). So as I sand this is what I watch for, then stop. Trying to get the entire roof sanded, compounded, polished and waxed just to see what I can do.
