Water in the cylinders

valyidol

valyidol

Active Member
Messages
316
Reaction score
112
Location
Russia, Moscow
Hi!

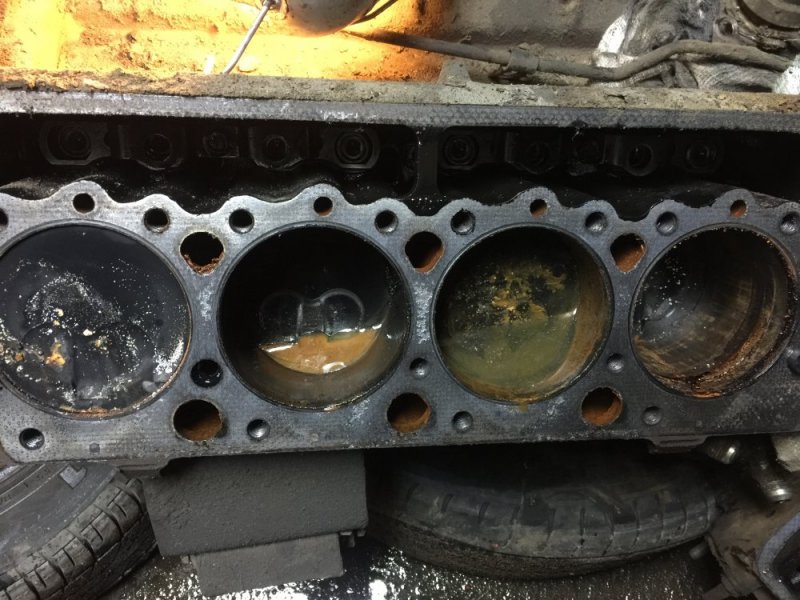

I got to repair the HUMMER H1. The owner told the story. He bought HUMMER and drove 2000 kilometers to the house. On the road, the diesel engine overheated. But not to the red zone. HAMMER's house stood 1 day. When the owner wanted to start the diesel engine jammed. I found water in the cylinders, 8 broken hydraulic lifters and a pushrod around the crankshaft. There are no leak marks on the head gaskets. Corrosion in 6 cylinders. Who thinks about it?


Attachments

  • IMG_8328.JPG
    160.9 KB · Views: 7
There's a breach somewhere in head gaskets, heads could be cracked, many possibilities... I'm goin thru the same with my 01 LB7 Duramax... Got it dirt cheap, "only needs head gaskets", turns out motor was locked up n had water on top of a few cylinder... Cylinders actually froze from rustin to cylinder walls.... Got any pics of head gaskets, intake, ect??

Sent from my LG-TP260 using Tapatalk

It looks like water. Was it just water or was it antifreeze/coolant. Is it exactly the same as what was in the radiator? Mighty intersting that it is in both sides of the engine, kind of a big clue there...Hummers have a way of making the driver try to drive through too deep of water and hydrolocking the engine. It's like a magical power they have. Beware of this on your test drive -haha.

When you took apart his cooling stack, how bad was it between the radiator, oil cooler, etc in the stack?

If it is coolant- first cylinder to look closely at is #8.

With the unbalanced waterpump and the added heat load that hummer have from the junk radiator angle, then the turbos have the uppipes right next to the head of #8, there is a huge conspiracy in the hummer world that all 6.5 engines crack there due to a casting defect. It is a weak point because of the waterpump, but once the balanced flow one is on the failure rate goes way down.

When you put in his new engine, upgrade the waterpump to the spin on fanclutch style. Get the kennedy fan clutch and the duramax fan. Trim the fan blade down to 20" diameter. Get Leroys bypass restrictor fitting for it. You'll need a lower hose metal tube for a 2000-2004 hummer, or add the extra connection for the new location of the other heater hose. Search parts picture difference and you'll see easily where to weld it in.

Hummers need same basic upgrades as pickups- ops relay harness (again Leroy if you cant make it yourself). Fuel pressure gauge and LP upgrades etc.

Hummers have their own relm of upgrades and mistakes (some rip off stuff as well) made by many hummer specific suppliers- warn your customers of this.

Also he/ you REALLY need to learn about the locknut issue on the geared hubs. It has caused many deaths and injuries. Loosing a wheel and spindle has caused more rollover incidents in on road driving than AM General or the military will ever admit to.

Btw, how fun was pulling that engine?!? What a major p.i.t.a. Huh?

Be patient when realigning the cooling stack- usually takes some wiggle work. Put the hummer against something or chain it to something immovable, in both forewwrd and reverse load the engine full throttle a few times. Fan against shroud clearance is usually found this way. I know, your thinking "but the owner will never try to push something immovable, especially in reverse." Yes. Yes he will. Magic power #2 of hummers...

Check trans, both differentials, and all 4 geared hubs for water. They all have vent lines, but if it went crazy Ivan, they could all have water... in fact fuel tanks also.

Keep us informed plz.

Hi!
Sorry for the long silence. At this time, I helped to survive 2 HUMMERs, 1 VAN and 1 SUBURBAN. The water in the engine of this H1 was all simple. In the car repair shop the mechanic removed the intake from the diesel engine, closed the hood and left in the rain. We all know how and where the water flows from under the hood of the HUMMER. I assembled another diesel and installed it. For installation, I made this adaptor. It helped me and when replacing the engine in the VAN.
