Let the insanity begin! Time to Yank it.
- Thread starter WarWagon
- Start date
tanman_2006
Just a farm kid...
This could be interesting.
bowtiebutler956
Active Member
Very Nice! Yank makes a great converter, and I assume it has a multi disc lockup clutch? Whats the torque rating on that monster?
Matt
3500GMC
What T F, over
I see a billet cover.
What was your other deciding factors?

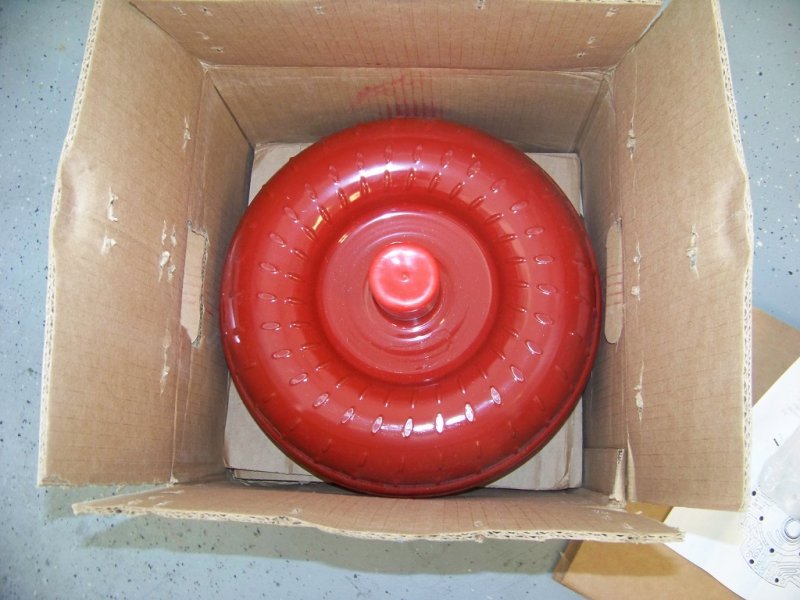

What was your other deciding factors?This is truly a year old "leftover" NOS part from the 1995 Hot Rod Suburban I built. The Spool Valve solved the out of the hole issue it had enough to not put a high stall converter in it. The inspiration came from driving a 1979 5.7 Olds Diesel Seville and noting how the underpowered engine revved up all the time from a higher stall converter. So I made the leap to allow the 6.5 with the large turbo to "slip" past 2000 RPM to allow enough RPM to light the ATT off from a stop.
It has all the goodies except price for all but the most hard core hotrodders. Patch is beyond a parts black hole anyway so WTH. I have to pull the driveshaft for a new center bearing anyway so we decided to finally put this converter to use. Like we are halfway there by just dropping the driveshaft...It is in progress now with weeks allowed to do the job as time allows.

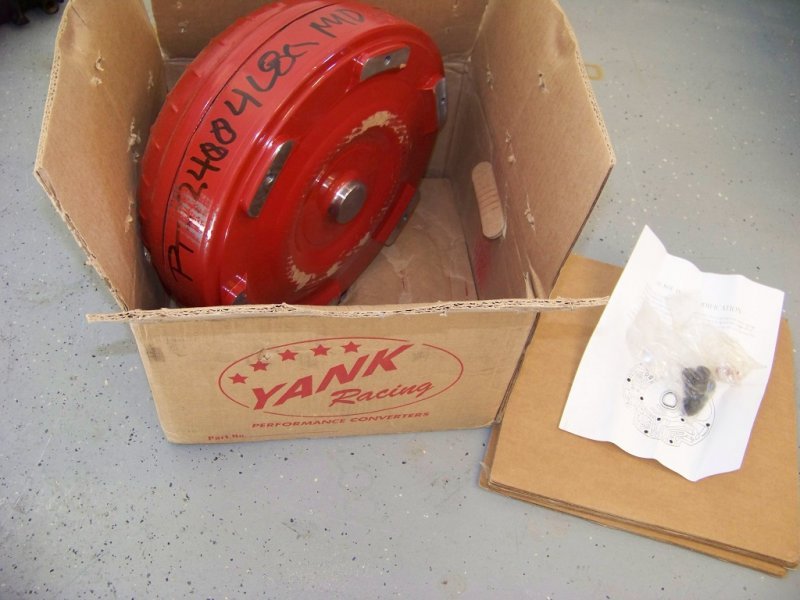

Ripped from Yank's website close to describing the converter, but, I have a custom stall speed, 2400, built from a gas 4L80E converter after sending them videos of the launch, with the tach recorded in the video:
Pro Truck Series Multi Disk Converter
AFTER MANY YEARS OF CUSTOMERS ASKING FOR IT YANK IS GOING TO PRODUCE A LINE OF 258MM MULTI DISK CONVERTERS FOR THE 4L80 AND 6L80 TRANSMISSIONS.
THESE PRO TRUCK BILLET MULTI DISK MODELS WILL ALL COME WITH THE FOLLOWING ITEMS LISTED BELOW
1 PIECE HARDENED FLANGED IMPELLER HUB.
YANK ULTRA LOCK BILLET MULTI DISK LOCK UP ASSEMBLY WITH 105 SQIN OF CLUTCH AREA DESIGNED FOR WOT LOCK-UP.
1 PIECE BILLET COVER WITH 6 LUGS
FULLY FURNACE BRAZED
ALL NEW TORRINGTON BEARINGS
5YR WARRANTY <-- I expect it to eat debris from trans failure rather than be warrantable, but, just setting my expectations properly with pay to play. It can/must be rebuilt after grenading the trans.
It has all the goodies except price for all but the most hard core hotrodders. Patch is beyond a parts black hole anyway so WTH. I have to pull the driveshaft for a new center bearing anyway so we decided to finally put this converter to use. Like we are halfway there by just dropping the driveshaft...It is in progress now with weeks allowed to do the job as time allows.
Ripped from Yank's website close to describing the converter, but, I have a custom stall speed, 2400, built from a gas 4L80E converter after sending them videos of the launch, with the tach recorded in the video:
Pro Truck Series Multi Disk Converter
AFTER MANY YEARS OF CUSTOMERS ASKING FOR IT YANK IS GOING TO PRODUCE A LINE OF 258MM MULTI DISK CONVERTERS FOR THE 4L80 AND 6L80 TRANSMISSIONS.
THESE PRO TRUCK BILLET MULTI DISK MODELS WILL ALL COME WITH THE FOLLOWING ITEMS LISTED BELOW
1 PIECE HARDENED FLANGED IMPELLER HUB.
YANK ULTRA LOCK BILLET MULTI DISK LOCK UP ASSEMBLY WITH 105 SQIN OF CLUTCH AREA DESIGNED FOR WOT LOCK-UP.
1 PIECE BILLET COVER WITH 6 LUGS
FULLY FURNACE BRAZED
ALL NEW TORRINGTON BEARINGS
5YR WARRANTY <-- I expect it to eat debris from trans failure rather than be warrantable, but, just setting my expectations properly with pay to play. It can/must be rebuilt after grenading the trans.
Last edited:
bowtiebutler956
Active Member
I'm really looking forward to seeing video of that beasts performance in you truck. That looks like one tough built converter, and with that killer lockup clutch setup on there, you won't have to worry about the extra heat created from higher stall speed once your on the highway. Very Nice!
What gearing do you have in Patch?
Matt
What gearing do you have in Patch?
Matt
3500GMC
What T F, over
Watch your trans temp more closely, more stall = more heat as mentioned. It'll build more heat running through the gears loaded or not. It's the nature of the beast.
Looks like a nice piece.
Looks like a nice piece.
tanman_2006
Just a farm kid...
No better place to test their parts! Lmao!

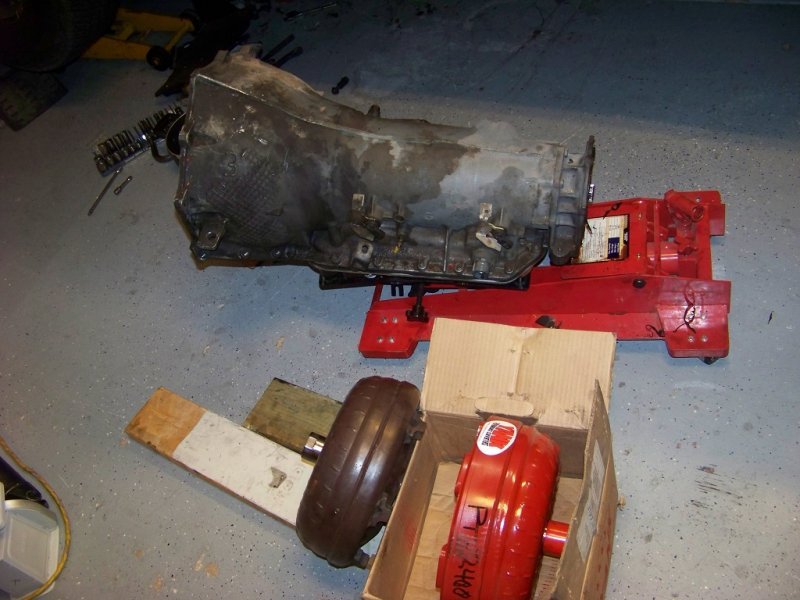

Finally got the trans out. Waiting on new pump seal just to be sure before going back in. Oil everywhere of course. Even though I drilled a hole in the old converter to prevent that from being a mess the transfer case leaked everywhere...

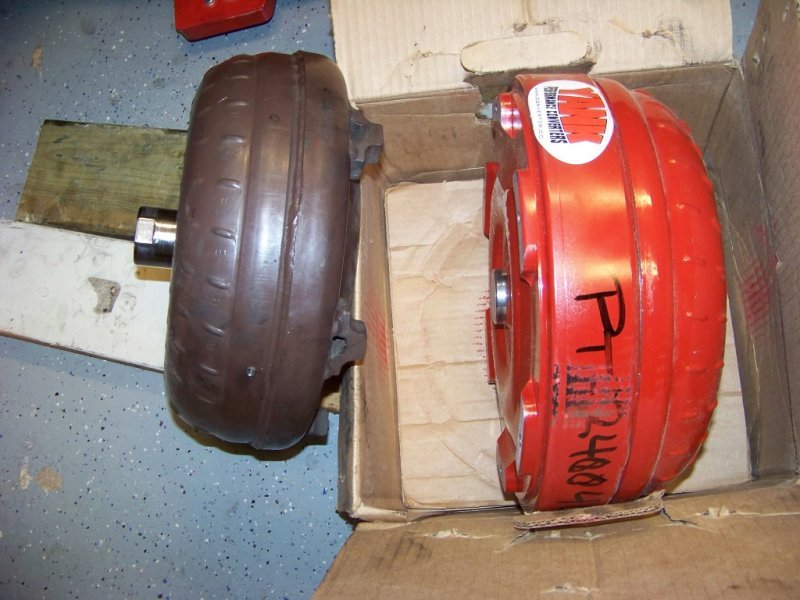

Here is a comparison of the billet cover vs. the factory cover as it isn't apparent to the untrained eye.
Also note where I use the trans temp probe.
Here is a comparison of the billet cover vs. the factory cover as it isn't apparent to the untrained eye.
Also note where I use the trans temp probe.
Attachments
bowtiebutler956
Active Member
Looks like fun to me!
Matt
Matt
turbovanman
I has boost, :O)
That's a big ass converter, but your like me, you can break anything,
bowtiebutler956
Active Member
I think even WarWagon will have a hard time tearing up that converter, short of have the transmission grenade, and pump metal threw it.That's a big ass converter, but your like me, you can break anything,
Matt
Sub'ed
So close, yet, so far.
Replaced the front speed sensor this AM and started the test drive and final oil filling.
Factory computer doesn't know what to do with the high stall converter at light throttle. It rapidly shifts from 1-2-1 and 2-3-2 several times a second depending on road speed and light throttle. Heavy throttle it behaves a little. So for a test drive I had to manually shift it and off or 100 throttle. (Had a scan tool confirming ECM commanded gear.)
The TCC lock switch give a no questions asked wham lockup. About time.
So I will see if a EPROM chip program can be made for the high stall converter.
Replaced the front speed sensor this AM and started the test drive and final oil filling.
Factory computer doesn't know what to do with the high stall converter at light throttle. It rapidly shifts from 1-2-1 and 2-3-2 several times a second depending on road speed and light throttle. Heavy throttle it behaves a little. So for a test drive I had to manually shift it and off or 100 throttle. (Had a scan tool confirming ECM commanded gear.)
The TCC lock switch give a no questions asked wham lockup. About time.
So I will see if a EPROM chip program can be made for the high stall converter.
It's plan "B" for sure. As much as I just spent on the driveshaft repair...
So the only two plugs you can get backwards on the transmission I manage to plug in backwards. Sitting there in park engine running I read output RPM = engine RPM. Hmmmm...
So after swapping the speed sensor plugs it is working well! Must have gotten front and rear mixed up while under the truck. It's dark under there after all with soot and black oil over everything.
So far It easily lights both the rear tires up.
Shifting is somewhere over the 3600 RPM redline and then 3100 RPM after the shift.
Effortlessly unloaded to 75 MPH.
Absolutely deep in the ATT power band.
Trans temp happy at 150 F.
I need a bigger pump than this maxed out 6.2 DB2...
So after swapping the speed sensor plugs it is working well!
Must have gotten front and rear mixed up while under the truck. It's dark under there after all with soot and black oil over everything. So far It easily lights both the rear tires up.
Shifting is somewhere over the 3600 RPM redline and then 3100 RPM after the shift.
Effortlessly unloaded to 75 MPH.
Absolutely deep in the ATT power band.
Trans temp happy at 150 F.
I need a bigger pump than this maxed out 6.2 DB2...
