Walbro Install

indybeck

indybeck

Member
Messages
210
Reaction score
1
Location
SE South Dakota
I'll show you mine, if you show me yours...:D

A few pictures of my install

1. Picture of the whole plate.

(P.S. I don't like the scotch locks in the bottom of the picture, but I just found them. They are for the fifth wheel connection in the box, but I have never used it.)

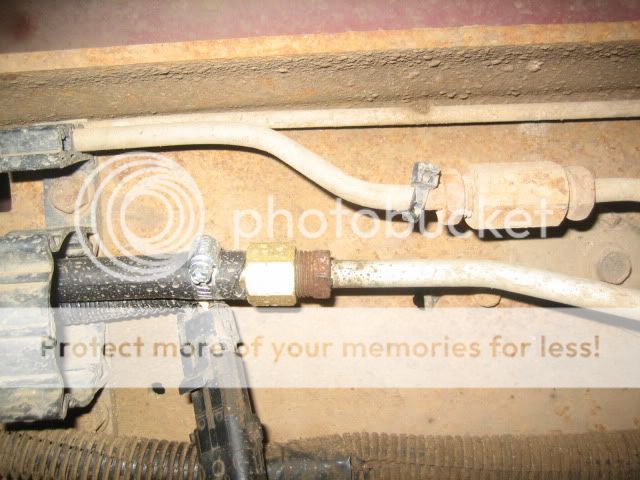

2. Picture of suction line to filter housing connection.


3. Picture of the pump to outlet line.


4. Picture of the pressure line to one of Leroys fabulous barb fittings.


5. Picture of the mounting to the frame rail. I used two 3/8ths bolts.

Looks good, what did you do for power?

FYI: I took your pump to the post office on the way to the hospital last week :D .

I cut the plug off of old pump, and used uninsulated butt connectors with heat shrink. I have wired the ops to a relay to power the pump. You can't start a story like that without finishing it...:bigear: --I'm all ears!

Thank you for getting my pump in the mail first! Just kidding, everything must have gone well, and hope you are feeling better...best wishes!

Heres mine, I mounted the filter after, I just cut the steel fuel line behind the torsion Bar Crossmember and flared it 37 degrees to go on the AN fitting, I did it all at the same time to eliminate the Fuel Manager, used Walking Js fitting in the IP

Heres the filter set up

I like your setup! The stock fuel manager seems a little odd, I would think a common spin on filter of some sort would be a little better. It has to flow better and be easier to service. What did you use? Did you make a bracket for the filter head or ???

I made the bracket it comes off the Mount that supports the Upper Rad hose, I Tigged a 1/8 inch plate to the front of the bracket cause it was only 11 gauge, Then I just cut a couple pieces of 1/2 inch tubing and Fit them to the angles drilled some holes Tigged it all up


I wish I had access to a tig welder! Bracket looks amazing. I had to settle for mig. I used 2" tubing to 3/16ths plate. and then a small piece of 1/4" to space fuel pump out.

Don't hold me to this yet, but Im pretty sure I will be selling the Wix mount and a Wix fuel filter for $60-$65

Any interest to anyone in those for $60-$65??

I put my fuel pressure gauge on the tee last night, 0 to 10.5 PSI, and pegged it out. As soon as I get a higher gauge, I'll let you know what I get. I got to put a few miles on my truck tonight, and it runs smoother, and sounds less labored. I am super happy with the pump. Anybody else gonna share their install?

4thesporty said:
Yea, especially if you can make some kind of bolt on mount with it.

No welding skills here!
Click to expand...

I will also have a bracket system (no welding) I just made a mount for the Suburban yesterday and will post some pics of it later. The Suburban is alittle different and will require 2 mounts one for the filter and one for the pump because the xmember is in the way Or I may look at one bigger bracket further back.

indybeck said:
I put my fuel pressure gauge on the tee last night, 0 to 10.5 PSI, and pegged it out. As soon as I get a higher gauge, I'll let you know what I get. I got to put a few miles on my truck tonight, and it runs smoother, and sounds less labored. I am super happy with the pump. Anybody else gonna share their install?
Click to expand...

I was amazed too, def can tell the diff.

Guster said:
could be ;)
Click to expand...

Stay tuned

ak diesel driver said:
I think we need some pics of that winnie
Click to expand...

I'll post the pictures in my Walbro thread and then post a link here. Will be easier for me to keep track of that way. I have only 3 mounts coming, I'll be picking them up next week.
