How To: 99-06(07 Classic) Regular Cab Long Overhead Console Install & Information

Messages
16
Likes
0
Location
Right Cheer
#48

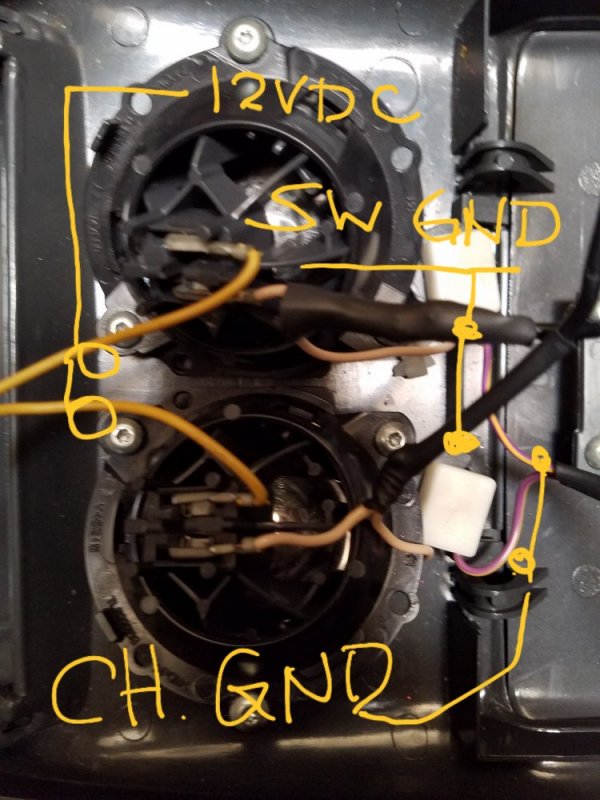

What i have:
12v from the gray/black at the dome light, feeding the dome and map lights on the bulb side(yellow).
Diodes are installed on white between each map bulb and switch to the switched ground(door switch).
Map light switches are grounded to chassis ground on purple/white
Is this correct?
