New product

[Twisted Steel Performance]

New product release........

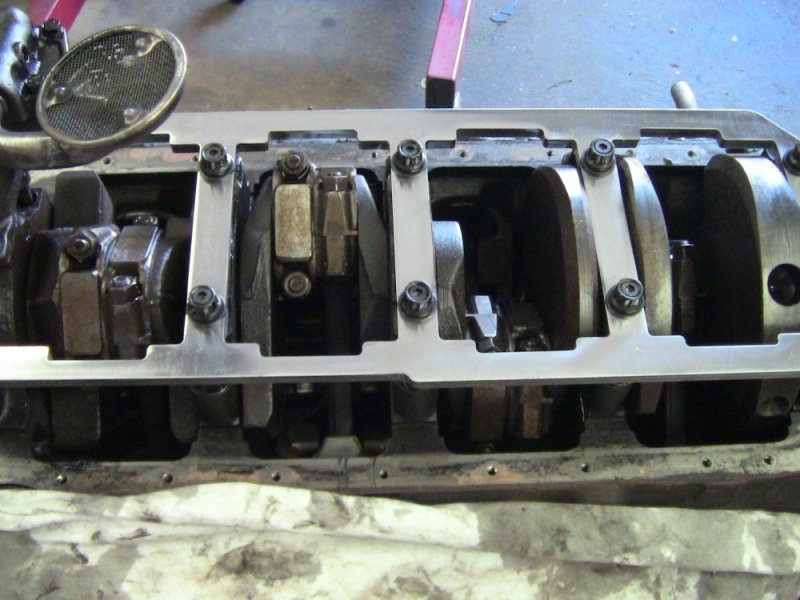

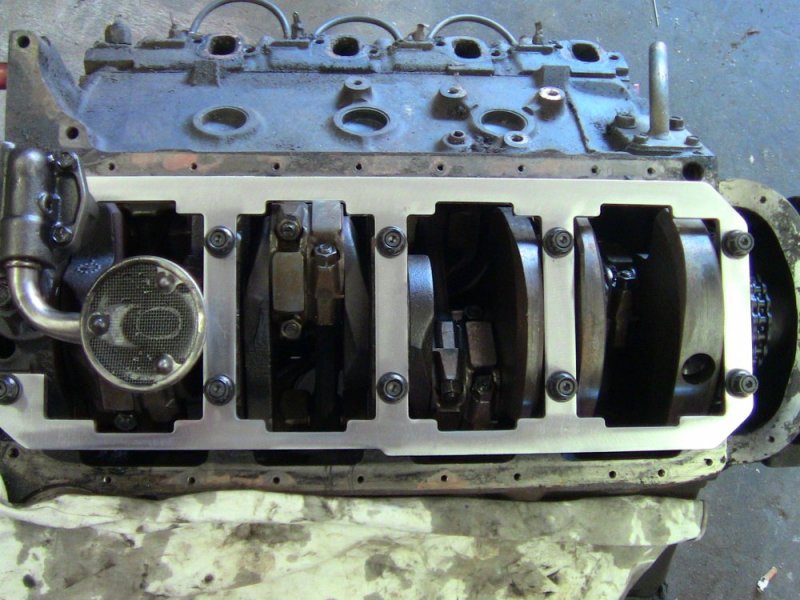

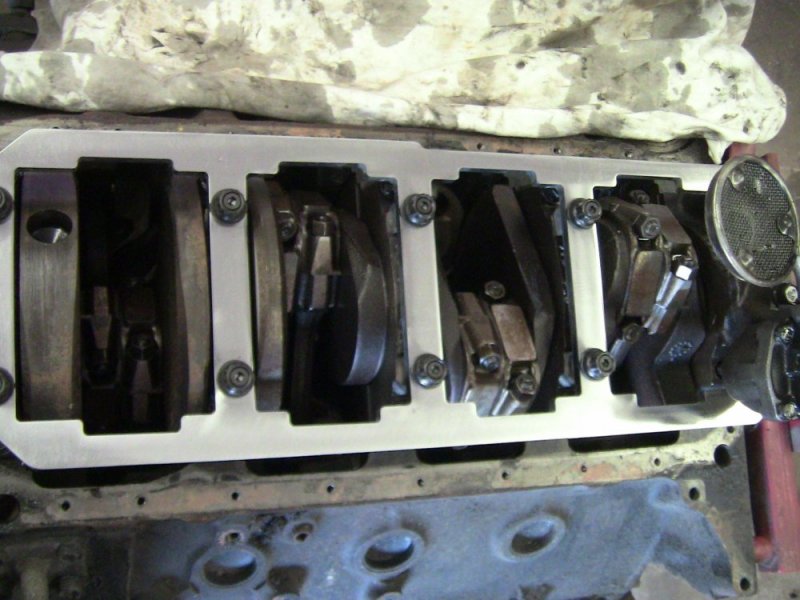

TSP 10 bolt Halo Girdle
Complete using ARP 2000 studs, laser cut 3/8 thick A572 steel, tool to torque outside bolts when installed.
This first for the 6.2/6.5 diesel will fit ALL blocks and uses the inside bolt locations giving maxim strength and preventing all cap walk.

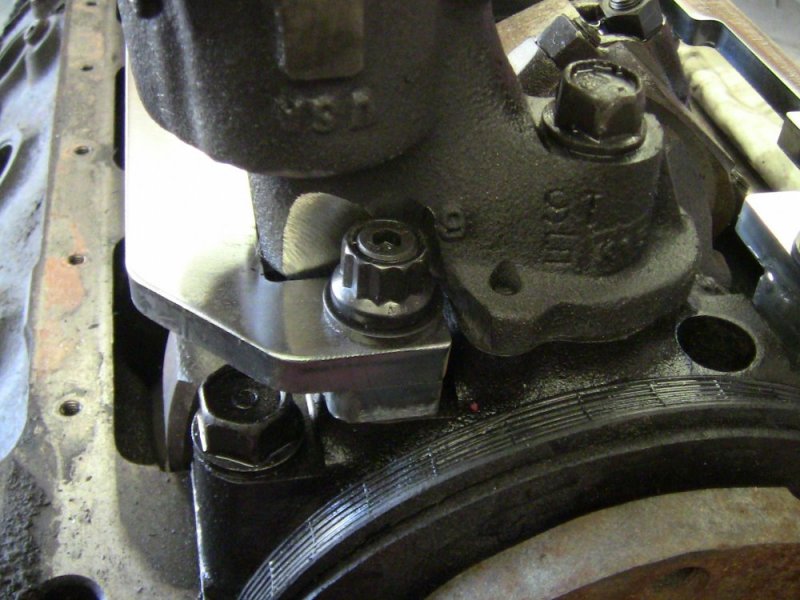

Slight clearanceing will be needed on the oil pump as seen in the pic but is also needed when just using studs..
873.82$ shipped in the lower 48. Message to order.



[TOBASH]

Please describe the clearancing required



[Twisted Steel Performance]

The oil pump will not mount without grinding the pump body as seen, this is also needed if someone only uses a stud kit... the pump body is really thick in this area so the pump is not in danger .... unless someone goes wild with a grinder....



[TOBASH]

Do you think I would be able to install this from under my military Humvee with the engine still in the truck?



[Twisted Steel Performance]

If you can get the pan off, and be able to torque things yes.... the oil pump will need to come off and once the girdle is in clearance the pump ....



[Twisted Steel Performance]

2 kits left in stock, when these are gone it will me mid year at best when ARP has there studs in stock..



[Twisted Steel Performance]

Only 1 kit left, once these are gone it will be mid year till ARP gets there stud's back in stock... but when they do we will have more girdles...
