4wd actuator wiring harness location

SnowDrift

SnowDrift

Ultra Conservative. ULTRA!
Messages
3,059
Reaction score
3,792
Location
Central Ohio map dot

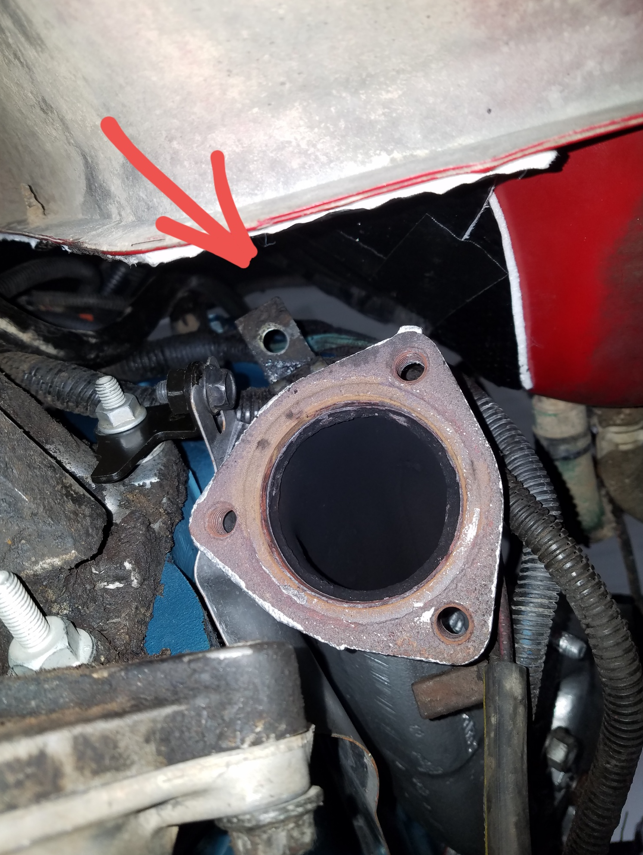

There is a clamp for this harness but I'm unsure where it is to mount. It must have needed to be moved to get the engine out, though, but I can't identify where it lived. It seems to have had a 8mm flange nut on one side but I don't know about the other. Below is a photo of about where it has ended up close to the flange on the passenger side exhaust manifold.

SnowDrift said:
There is a clamp for this harness but I'm unsure where it is to mount. It must have needed to be moved to get the engine out, though, but I can't identify where it lived. It seems to have had a 8mm flange nut on one side but I don't know about the other. Below is a photo of about where it has ended up close to the flange on the passenger side exhaust manifold.
View attachment 85369
Click to expand...
Can you get a better picture?

That looks like it could possibly be the starter heat shield bracket.
On the 1994 the 4wd harness snuck in the the glow plug wires and the exciter wire for the starter. Right between the heat shield and the starter

The looms came in between the starter heat shield bracket and the block. Then over the starter / under the heat shield.
There's an oval spot on the rear outside of the heat shield for the wires.

The 4 we wires ran back down in front of the starter.

When I changed the front wheel drive actuator - I believe there's a thread here or there - I ran a additional single wire from the actuator to the shifter or the transfer case.


Attachments

  • IMG_20231204_141723.jpg
    48.6 KB · Views: 2
ak diesel driver said:
That's to upgrade to the electric actuator vs the TLA system.
Click to expand...
If you haven't run the extra wire or upgraded the actuator, I would run the wire now, while it's easy.

If I had it to do over again, I would have installed it in the 4 wire connector by the actuator.

The 1994 had 2 open connections.

I believe I ran 14 gauge brown, but it's been many years. I do remember, it was quite cold - teens or below - I was stuck in the yard, the Backhoe wasn't plugged in and the sliding doors may have been froze shut.

The harness should be fine as long as it’s routed safely and ziptied along the way.I can’t see it being a problem.

It's up in the right spot now. I was able to get everything stuffed in nicely without removing the starter. The clamp that was on the harness literally dropped over onto the stud once I had it in behind the heat shield. I would have taken pictures but my phone gave up the ghost today, so no joy there.

I don't remember where the glow plug wire is supposed to be routed, but I planned to put it through a clamp I'll put onto the back of the head. I plan to also put a ground there since my "hired hand" has no idea where it came from originally.

SnowDrift said:
It's up in the right spot now. I was able to get everything stuffed in nicely without removing the starter. The clamp that was on the harness literally dropped over onto the stud once I had it in behind the heat shield. I would have taken pictures but my phone gave up the ghost today, so no joy there.

I don't remember where the glow plug wire is supposed to be routed, but I planned to put it through a clamp I'll put onto the back of the head. I plan to also put a ground there since my "hired hand" has no idea where it came from originally.
Click to expand...
There should be a ground strap to the top of the frame right next to the starter. If you don't have that one already

SnowDrift said:
It's up in the right spot now. I was able to get everything stuffed in nicely without removing the starter. The clamp that was on the harness literally dropped over onto the stud once I had it in behind the heat shield. I would have taken pictures but my phone gave up the ghost today, so no joy there.

I don't remember where the glow plug wire is supposed to be routed, but I planned to put it through a clamp I'll put onto the back of the head. I plan to also put a ground there since my "hired hand" has no idea where it came from originally.
Click to expand...
Perfect 👍

SnowDrift said:
I have two there. One goes to the body and the other must go to the engine since it's unhooked.
Click to expand...
Correct, Frame to Body at the Firewall and Frame to Motor / Lower Intake at the back of the motor. G104
Just addressed that issue (frame to motor) Attached file also might help with the OEM Glow Plug Routing.


Attachments

  • Diagram Engine Ground.pdf
    889.5 KB · Views: 7
