Pressure washer.. missing a part?

[BoostN]

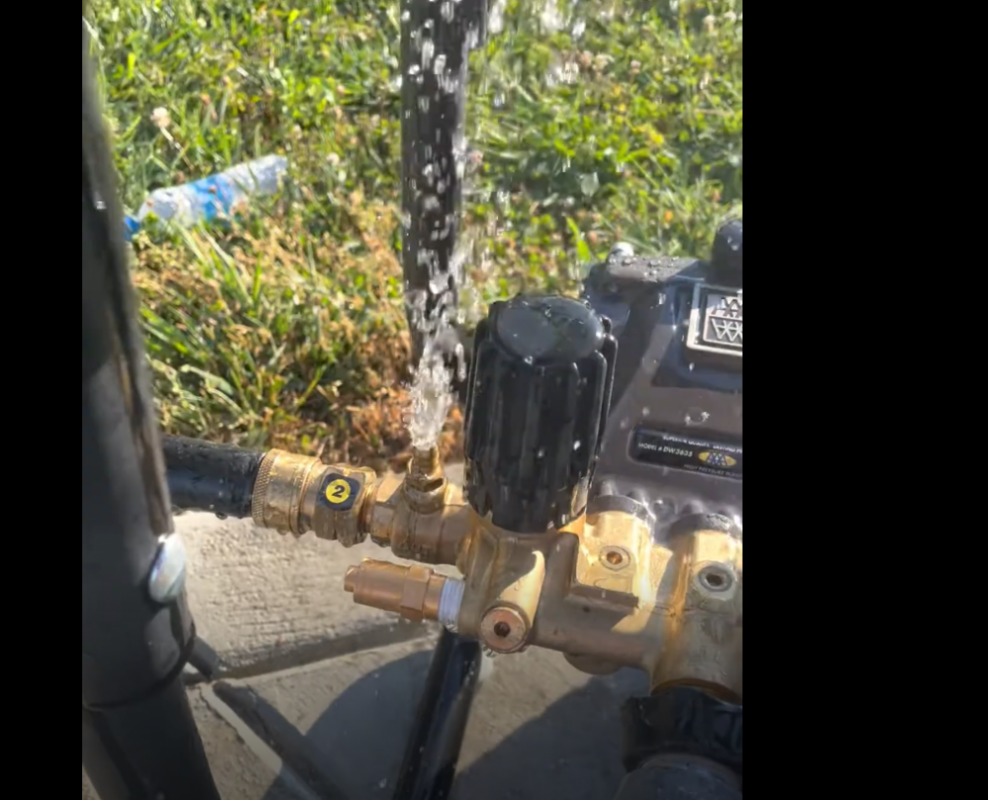

Ok.. I feel stupid. Am I missing something here? Is this just a release valve that's missing a tube to reroute it?

It's done this since new and after getting wet the entire time yesterday I'm ready to figure out how to fix this..



It sprays as soon as the water is on, and under pressure it blows about 4 ft in the air.



[Twisted Steel Performance]

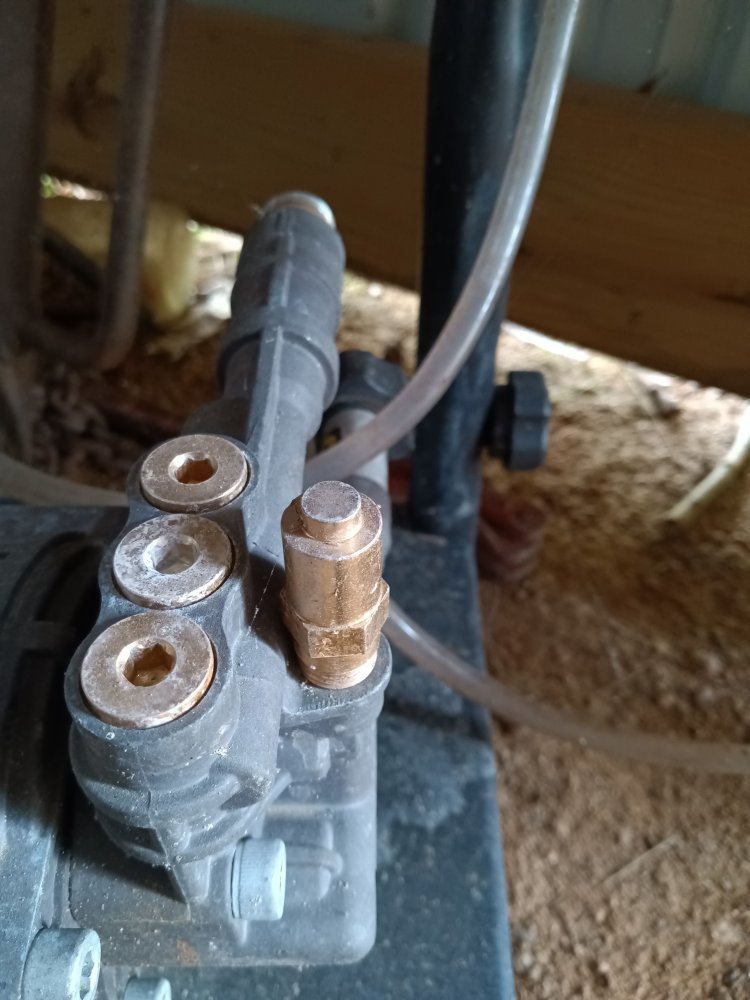

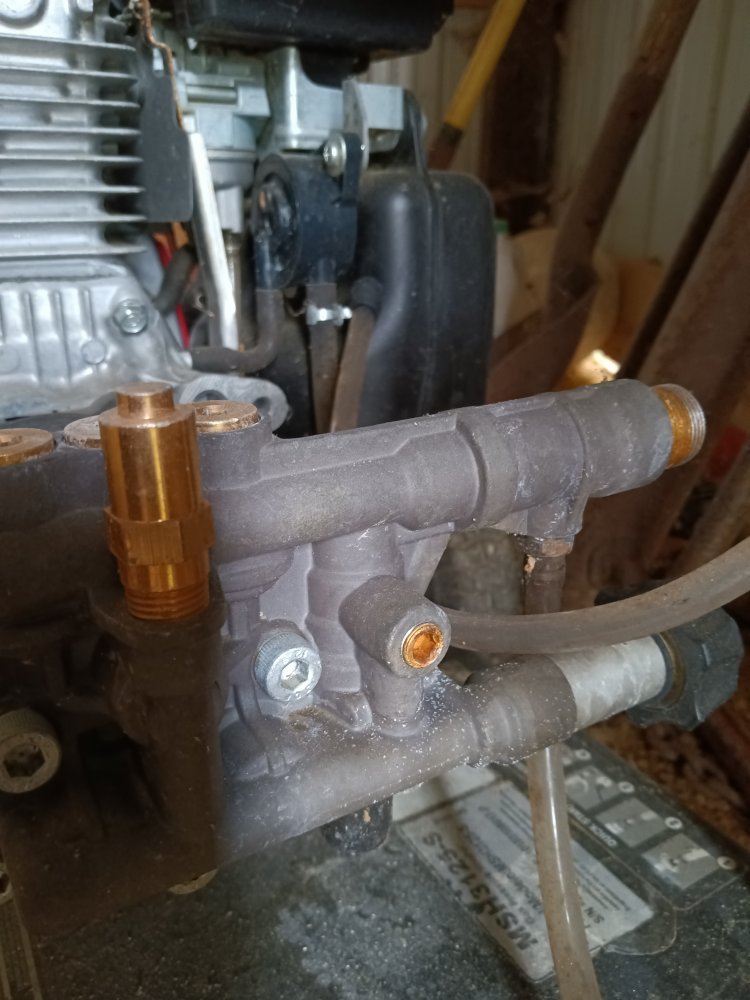

yea it's missing something... I'll go look at mine and snap a picture...



[Twisted Steel Performance]

Looks like a relief valve.



[Twisted Steel Performance]

Or it should be capped off.



[Twisted Steel Performance]

Google it, find a pic of the same model.



[BoostN]

I've been trying.. doing more research now.

This is the one I have: https://www.tractorsupply.com/tsc/p...pressure-washer-powered-by-honda?cm_vc=-10005



[dbrannon79]

I think that is where the siphon tube connects to for a soap bottle. looks like the fitting in your pic has barbs for a slip on hose of some sort. if that is the case there should be a tiny orifice in there and a valve that prevents backflow. it's possible a mud dobber made a nest in there and some of the dirt made it in there holding the valve open a wee bit allowing water to flow out.



[Twisted Steel Performance]

That's the siphoning hose connection it looks like.



[BoostN]

Support told me that port is for the Soap Injector kit. They are sending me one.. props to Simpson! I guess I never got one when I opened it up.
