Plumbing done, on to the next....

dbrannon79

I'm getting there!
Messages
2,717
Reaction score
5,526
Location
Seguin, TX

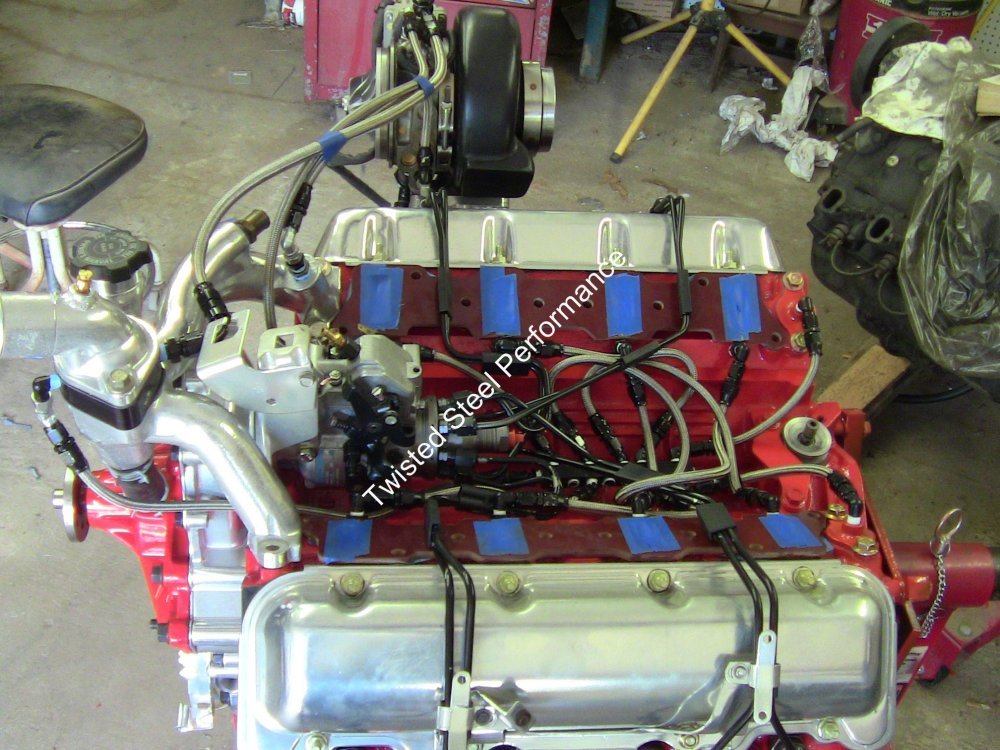

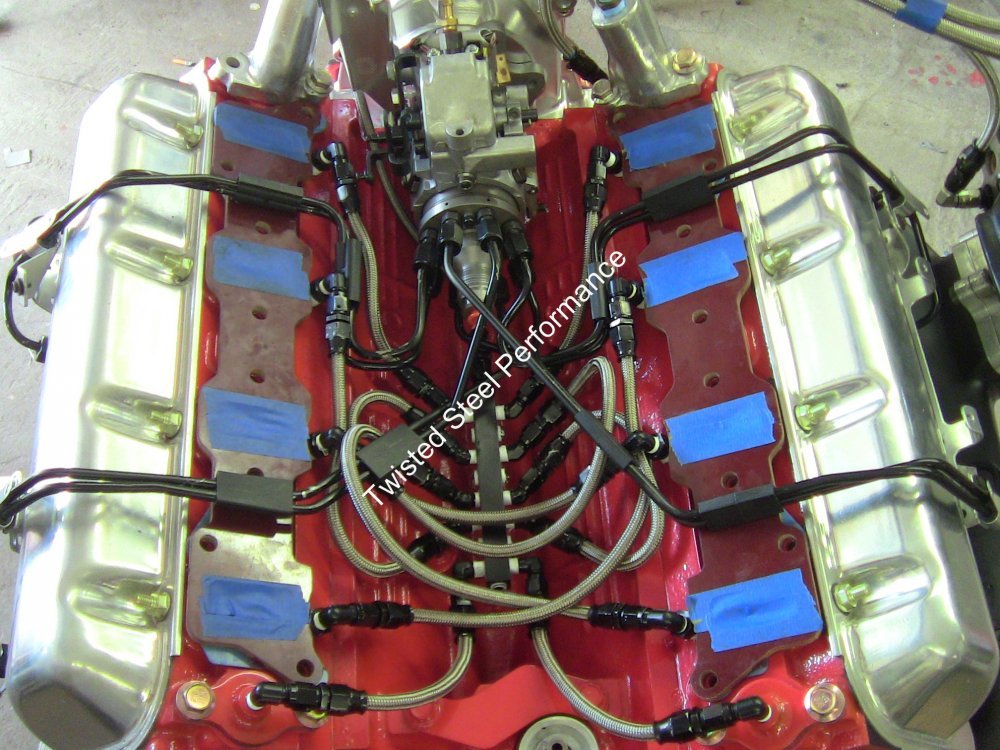

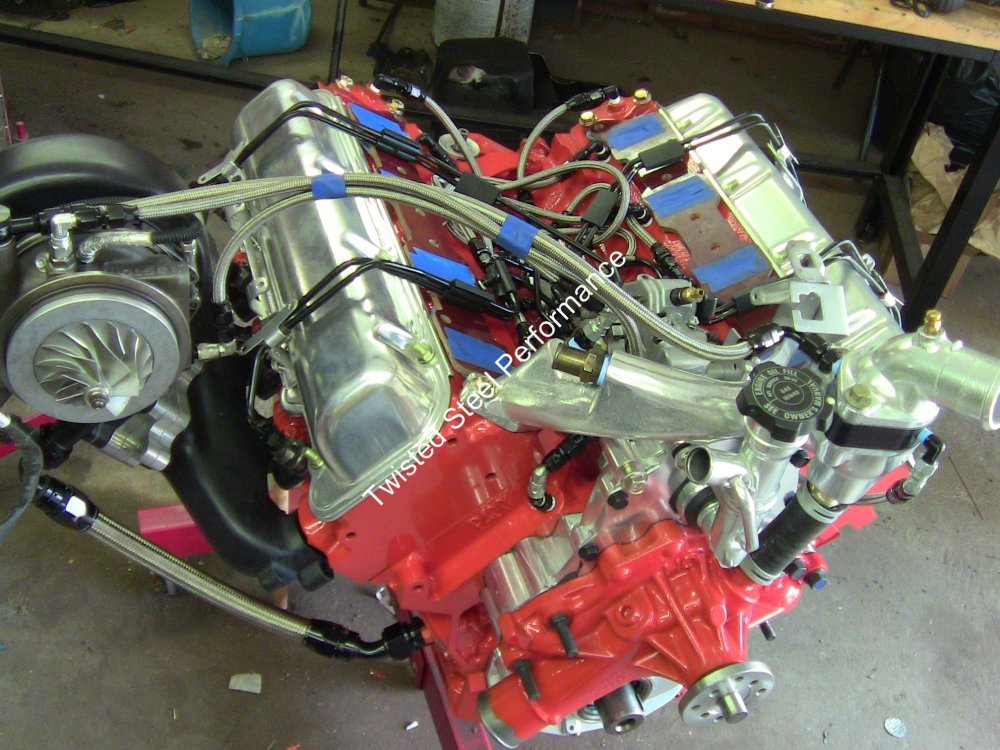

@Twisted Steel Performance how do the coolant lines work coming from the heads? I see a manifold block in the valley with lines attached to the rear blockoff plates, how does the coolant flow work? I am probably wrong about this, but I always though both of those blockoff plates would have coolant flowing out along with the added ports due to the pump pushing coolant into the block into the timing cover area below. I'm just trying to get a better idea on direction of flow in the block / heads. And if I am thinking correctly, those ports you made in the head are where the tubes get installed where the cracking happens between the valves?


dbrannon79

I'm getting there!
Messages
2,717
Reaction score
5,526
Location
Seguin, TX
I like this concept. wonder if this will even out the cooling effect where the #8 will no longer be the hottest part of the engine. I wonder how much of a spacer you will need to clear the intake with those ports. I got a glimpse of the 6.2 I have on the stand and saw just how close those plugs are to the intake ports on the head. it's really tight between the two!


Will L.

Well-Known Member
Messages
15,832
Reaction score
26,628
Location
Boulder City Nv
Chris and I spoke about this before. Allowing a small amount to flow equally amongst all 8 head steam pockets should have no effect on the balance of the flow. That is where ai think it is a perfectly safe alteration. And benifit of removing any trapped air of the “steam pocket” so there is coolant exhange there. Stock, there is basically no flow that occurs at the plug. And since any “flow is coming out the head at absolutely the hottest location of the head- win.

Where I am leery is the two rear block off plates. GM went through dozens of iterations attempting to use the location already in place and found disaster with most configurations and only a couple that seemed to have no effect positive or negative.

Notice what you don’t see with Chris’ manifold. An exit for continual flow. So pressure is fully balanced and no flow alterations are occurring. Remember me posting about the cavitation issues along the cylinders that occured among most of GM’s trails from the “rear head cooling kits”. Chris will face none of those negative repercussions because he is allowing the trapped air to escape and full liquid contact within the steam pockets but it not trying to pump out the coolant there. He also is not making the mistake GM did on the reverse flow systems of the corvettes where they were cracking heads in 5,000 mile intervals by shoving cool water into the hottest part of the heads.

I have my optimizer heads and was planning doing the bronze tube inserts then adding a hose with cap at the end. That way I can bleed the air 100% and could play with options like this in the future if I ever get to it. Having it capped and not flowing adds no risk because there is no flow originally. Unless a hose blows...


JayTheCPA

Well-Known Member
Messages
2,237
Reaction score
2,554
Location
Annapolis, MD
Could not see from the photos on whether there was a ECT sensor in the head. Or more specifically, if one is not in the port by cylinder #8, might consider this.

Benefits are twofold. Serves as a stand-by should the primary ECT sending unit by unplugging from #1 and connecting to the port unit at #8. Or by modding to a dual gauge system for actively monitoring ECT at both locations.

So if there is any interest in adding the second ECT sending unit, now is a good time as it is a lot easier with the engine out of the bay. Turns into a real pain once the engine is on its mounts.


SnowDrift

Ultra Conservative. ULTRA!
Messages
1,996
Reaction score
789
Location
Central Ohio map dot
Do you have a thread where you discuss the hydraulic fan system? Electric fans had been suggested to me while I'm into this one of mine, but I hadn't heard about hydraulic, except in a different system where the radiator is mounted in a remote location.


Twisted Steel Performance

Anything worth doing is worth overdoing.
Vendor
Messages
3,388
Reaction score
5,677
Location
Pauline, SC
Do you have a thread where you discuss the hydraulic fan system? Electric fans had been suggested to me while I'm into this one of mine, but I hadn't heard about hydraulic, except in a different system where the radiator is mounted in a remote location.

It's a old thread and a change or two have been made but it's still working as designed...
