Got scuffing, burnt, loose pistons ?

Twisted Steel Performance

Anything worth doing is worth overdoing.
Vendor
Messages
2,619
Reaction score
3,561
Location
Pauline, SC

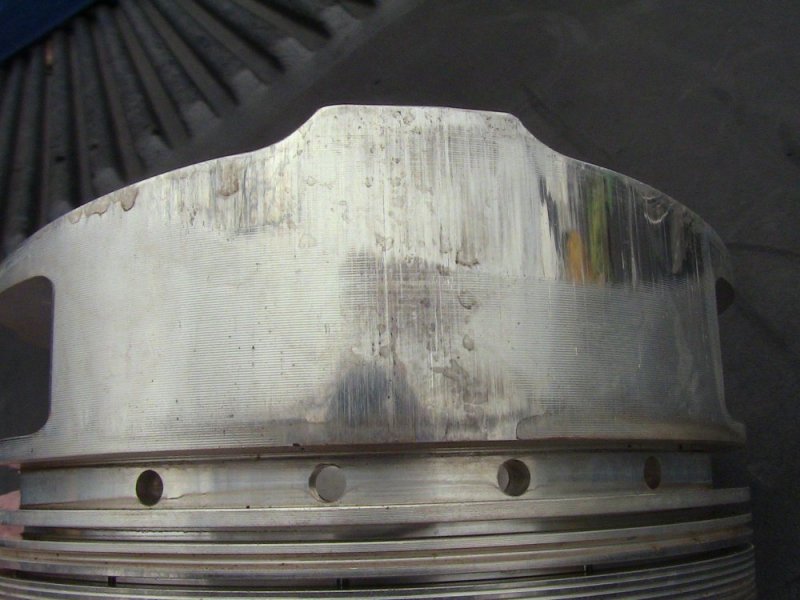

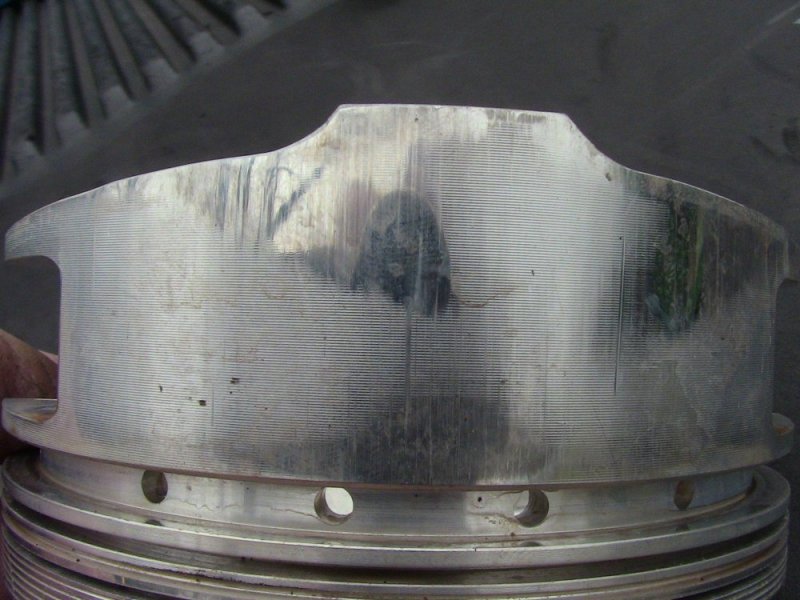

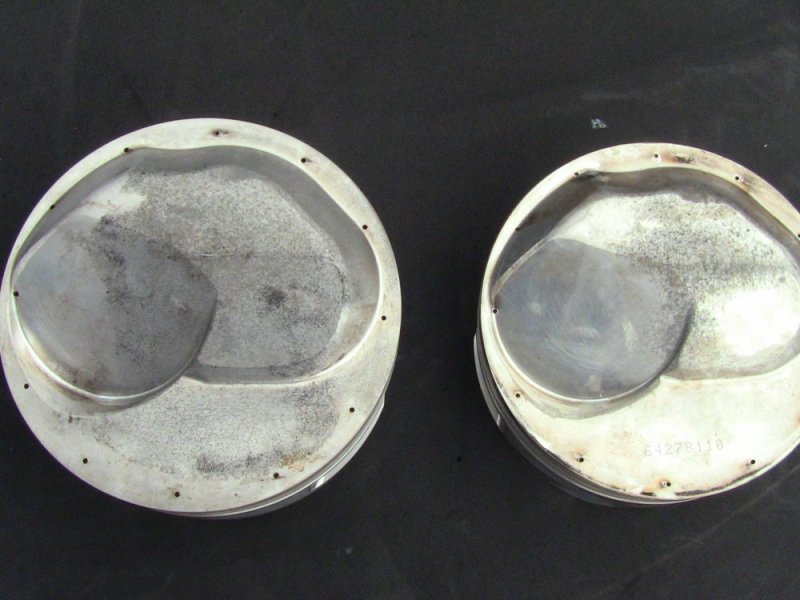

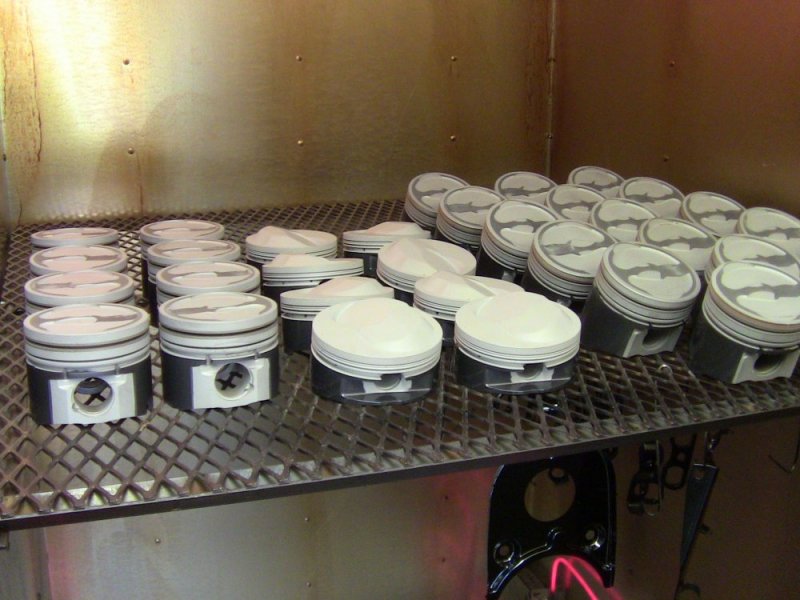

This weekend was full of pistons, several drag race motors were down or waiting till the last minute to refresh for the up coming season. A couple sets of BBC 632's, one "I need these repaired" 632's, burnt, scuffed, loose bores, about 4 sets of 6.5's...

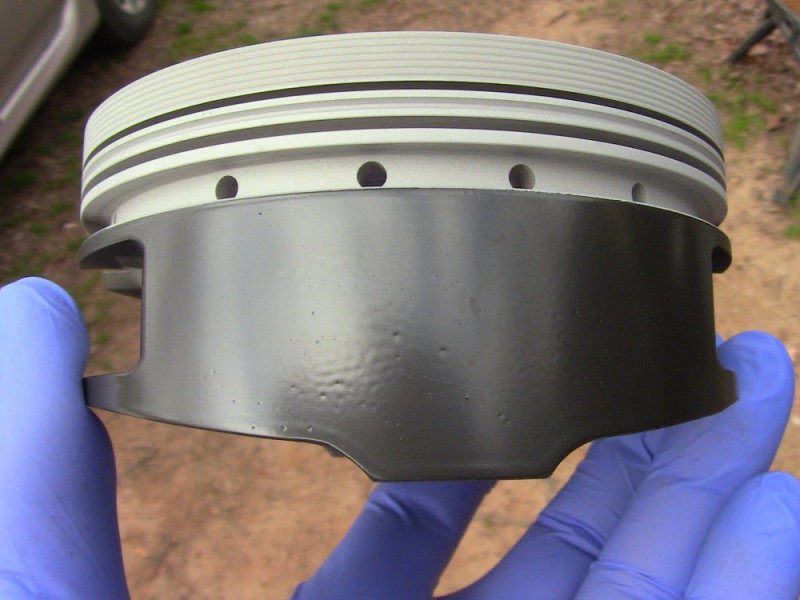

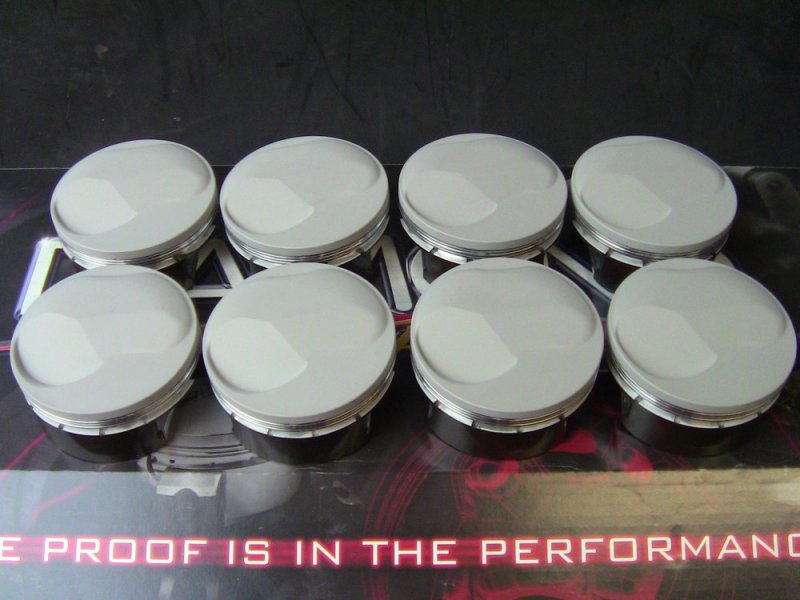

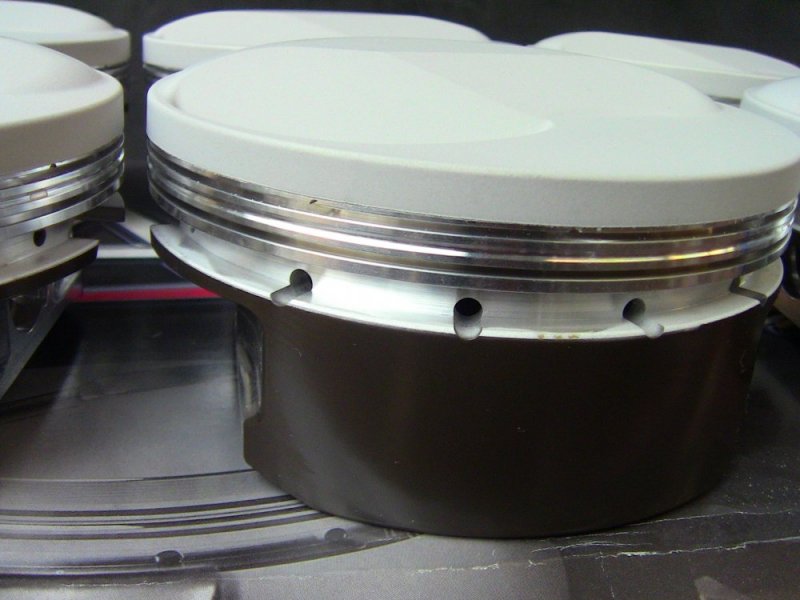

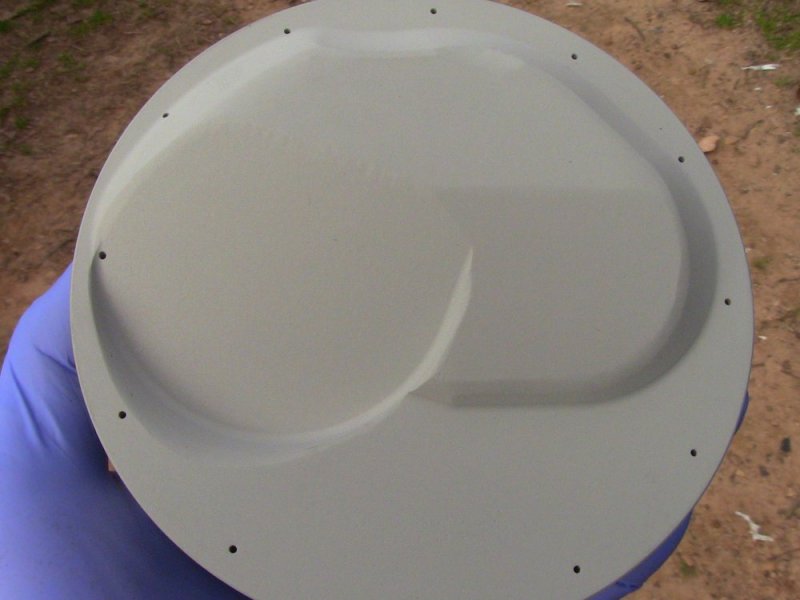

The repair set had had much too much Nitrous run through them, broke the crank and instead of a 1500$ set of new pistons he wanted me to repair what he had.. well yes, I can do that.. the skirts got a couple "build up" coats with a product designed for this, and 2 coats of our regular skirt coating, now the skirts are better than new, the tops were cleaned, polished then coated with CBX that is designed for exotic fuels and high boost.. now they are better than new...

So if you think some parts are beyond use, ya might rethink that or if you want the best possible protection for what you have, feel free to contact me..



Twisted Steel Performance

Anything worth doing is worth overdoing.
Vendor
Messages
2,619
Reaction score
3,561
Location
Pauline, SC
.005 + , the build up product is a "solid" that cures hard but will burnish when in use.. these needed .003 - ,005" , I can't measure it until it's cured so I try to apply enough the first time. These require a bore clearance of .007" for what the motor is running, the builder will measure them tomorrow and see how close I came, I hope their is more than what is needed, it will be great and the bore clearance will self fit the first pass ...


MrMarty51

Well-Known Member
Messages
3,068
Reaction score
4,456
Location
Miles City, Montana
Man, that's some nice work.
I would guess, that if a cylinder is on the edge of needing bored, the piston could be coated to make up a lot of the difference, then, pistons could be run in the questionable bore ?


RI Chevy Silveradoman

At your service
Staff member
Lead Moderator
Messages
11,940
Reaction score
4,055
Location
Rhode Island
I know I asked before a year or so back, but can you so this to 2 stroke outdoor power equipment pistons?
Have you experimented with them at all?
Does this coating resist carbonization deposit to the top of the piston?


Twisted Steel Performance

Anything worth doing is worth overdoing.
Vendor
Messages
2,619
Reaction score
3,561
Location
Pauline, SC
I know I asked before a year or so back, but can you so this to 2 stroke outdoor power equipment pistons?
Have you experimented with them at all?
Does this coating resist carbonization deposit to the top of the piston?
Absolutely, 2 strokes are oiled in the fuel they run, the skirt coating is a self lubricating dry film, the more pressure it is subjected to the more it lubes. The piston top coatings are thermal barriers, they prevent heat from soaking into the piston so it doesn't expand as much, bore clearances can be snugged up a bit due to this, that means less piston rock in cylinders..

I have done many 2 stroke pistons, I wish I had known all this when I had my Alcohol 2 stroke drag bike, new pistons after every race got costly back then...
