Factory airbox: what am I missing?

GM Guy

Manual Trans. 2WD Enthusiast
Messages
4,838
Reaction score
846
Location
NW Kansas and SC Idaho
Hey all,

I'm trying to get the OEM air filter setup put back together, and I wanted to check with anyone who has a known complete setup to check and see what I am missing.

I know I'm missing the 15834077.

I think I have the 15801087, but the one I can't really identify is the 15258717. Is it the scoop below the tray? Also, what retains the box to the tray? I'm aware of the two grommets (that I am missing) on the engine side, but what holds that bigger stub in the tray on the fender side?

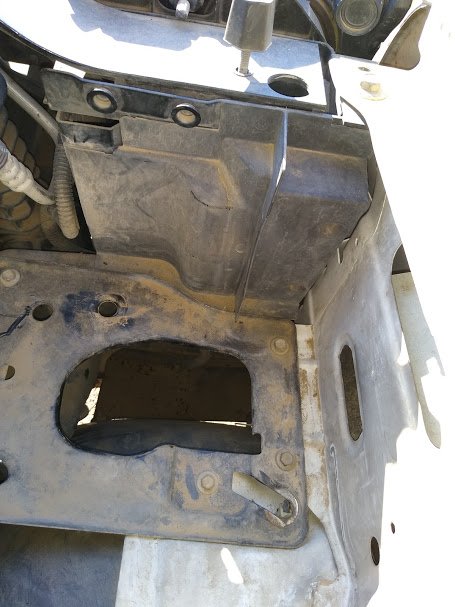

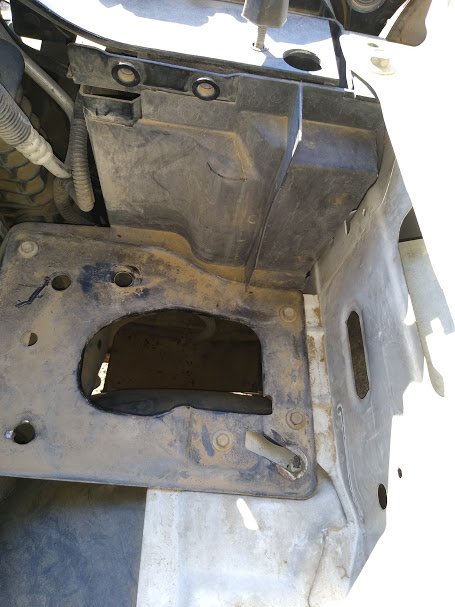

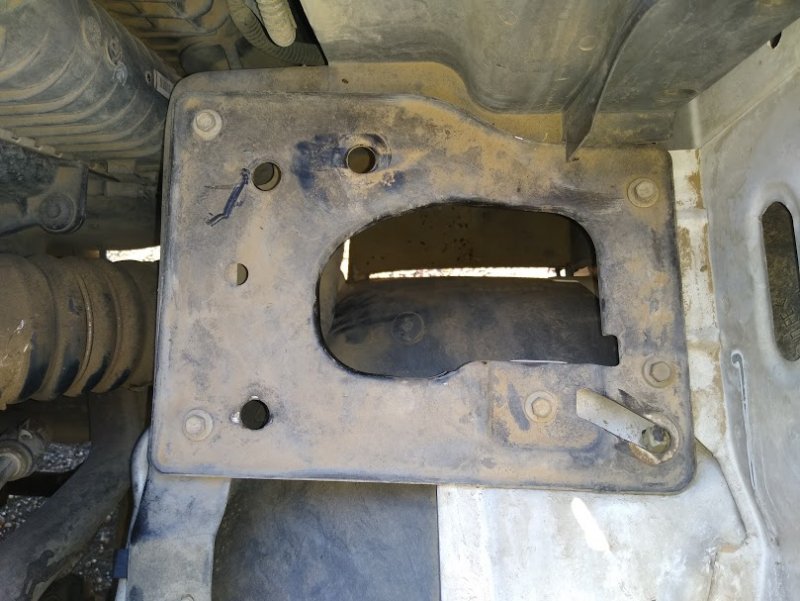

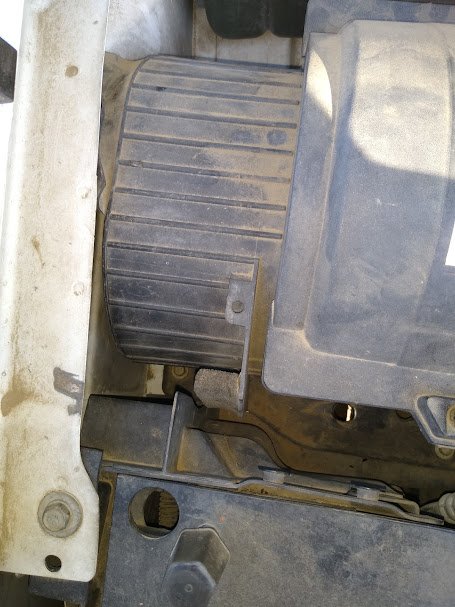

IMG_20210121_094423189.jpgIMG_20210121_094529836.jpgIMG_20210121_094535292.jpgIMG_20210121_094542165.jpg

Last edited:
Im really not liking this 20 minute editing window...lol

Anyways, I think the 15801087 is the panel behind the headlight with the rib that is plainly seen in pic 2 and pic 4, and the one that the foam strip is resting against the rib in pic 1. Is this correct?

3 grommets hold it down. No bolts. I don't have the LBZ anymore but I pulled the airbox many times. The grommets do wear out.
