- Staff
- #1

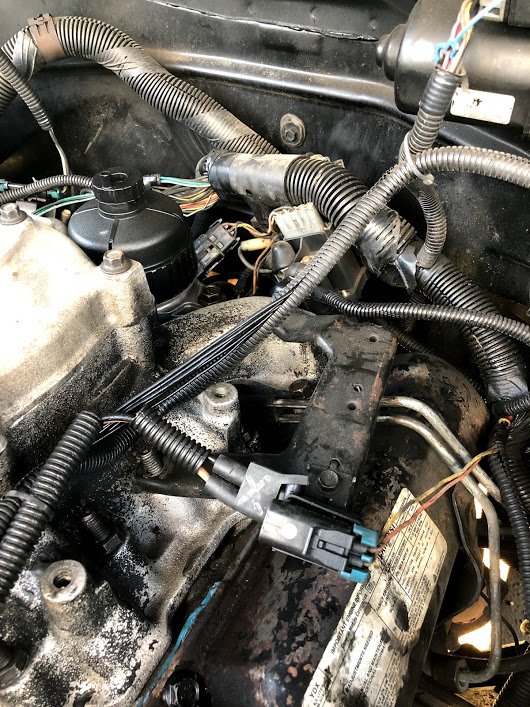

Can someone tell me or show me how this mounts up onto the side of the motor?
Thanks,
Thanks,
-
Welcome to The Truck Stop! We see you haven't REGISTERED yet.
Your truck knowledge is missing!
- Registration is FREE , all we need is your birthday and email. (We don't share ANY data with ANYONE)
- We have tons of knowledge here for your diesel truck!
- Post your own topics and reply to existing threads to help others out!
- NO ADS! The site is fully functional and ad free!
Problems registering? Click here to contact us!
Already registered, but need a PASSWORD RESET? CLICK HERE TO RESET YOUR PASSWORD!
Bracket
- Thread starter DieselCash
- Start date
Twisted Steel Performance
Anything worth doing is worth overdoing.
What bracket?? Is it the one kinda at the rear just laying their?? I can't see it very well from here LOL...
- Staff
- #4
It is the bracket dead center of the picture. I agree, it is hard to see.
The one item connected to the bracket is something for boost.
The one item connected to the bracket is something for boost.
Will L.
Well-Known Member
Wow. Not liking whatever change was made to seeing pics now using iPhone. Used to be I could click on pic and use 2 finger spread to zoom in. Now it goes into convolutions and ends up smaller than original pic.
Sorry no help on the bracket. Looks familiar but cant place location. Was thinking passanger front area attached to intake manifold, but not sure
Sorry no help on the bracket. Looks familiar but cant place location. Was thinking passanger front area attached to intake manifold, but not sure
- Staff
- #6
That is drivers side, back of motor. I uploaded it through google photos. That might have messed it up.
Does anybody have a similar bracket they can upload picture showing what and where it connects.
Does anybody have a similar bracket they can upload picture showing what and where it connects.
ak diesel driver
6.5 driver
I took my bracket off as I no longer use the vacuum system for boost control. Can't remember off hand how it mounts
ak diesel driver
6.5 driver
I'll look when I get home at my other rigs
Big T
Well-Known Member
We don’t need no stinking brackets!
- Staff
- #10
That makes sense, Maybe a home made turbo master is needed sooner than later.
ak diesel driver
6.5 driver

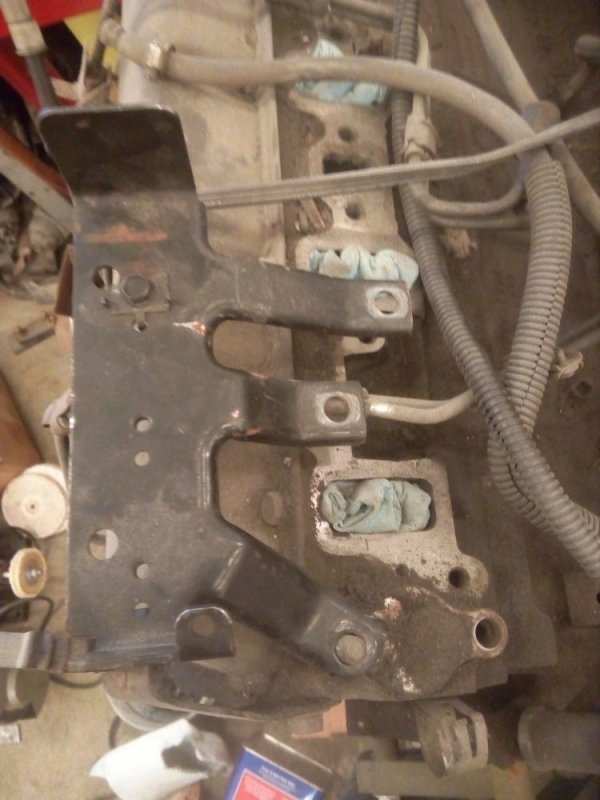

IIRC it attaches something like this
- Staff
- #12
Thanks, AK!
But, my bracket only has two fingers. Not three.
Strange, I wonder how many different brackets GM used to hold down the same parts.
I will see if I can get a better picture.
But, my bracket only has two fingers. Not three.
Strange, I wonder how many different brackets GM used to hold down the same parts.
I will see if I can get a better picture.
Paveltolz
Доверяй, но проверяй
The Bracket slides over the lower manifold studded bolts at the back of the motor regardless if it has two or three positions. Pretty much as you have it now. You may need to move it to get the holes to line up or, if you've put a bolt where a stud should be, correct that with the right studded bolt.
- Staff
- #14
Thanks!
