Accelerator Pedal Fault

J

Jackhh

New Member
Messages
1
Reaction score
2

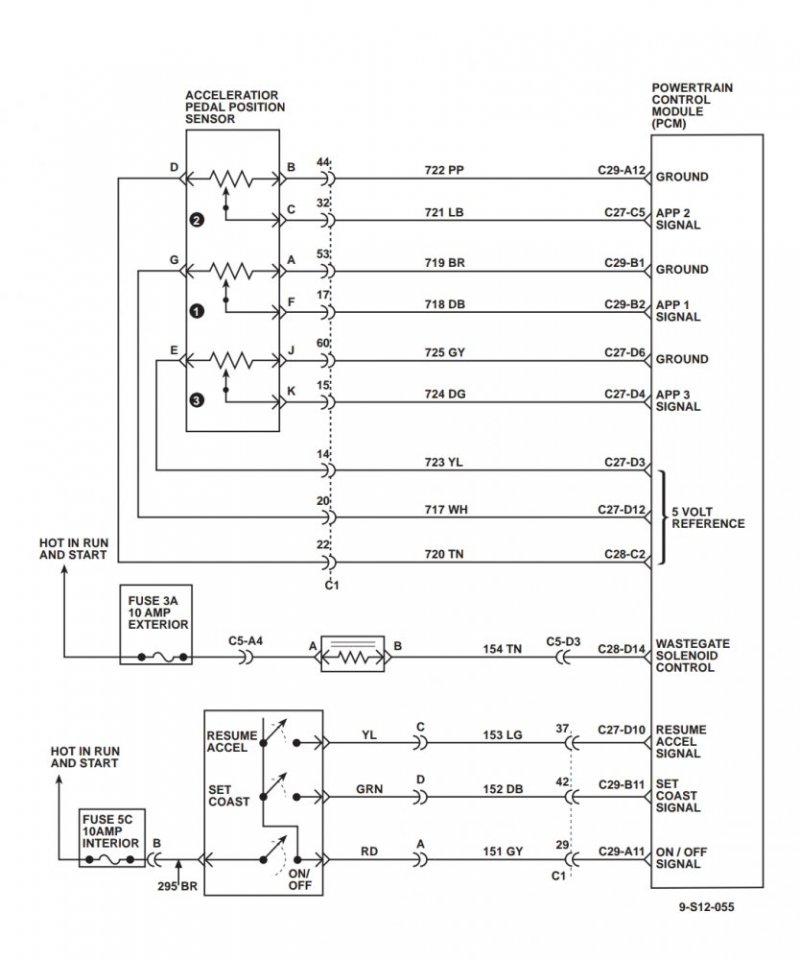

My name is Jack I have a 2006 2500HD LBZ stock truck. I have an accelerator fault and I think it is a wiring issue. I am looking for accurate wiring diagrams.

There are 3 variable resistors in the pedal, all three resistors have different voltages, depending on the depth of depression. In the video, how the voltage changes depending on the percentage of pedal depression. It must be like in the video.Screenshot_2022-10-17-00-18-32-98_e2d5b3f32b79de1d45acd1fad96fbb0f.jpg
